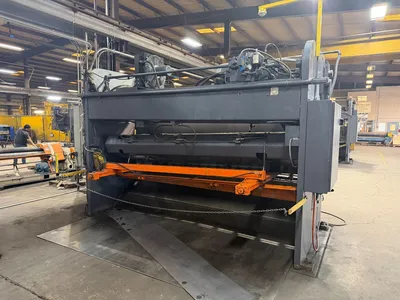

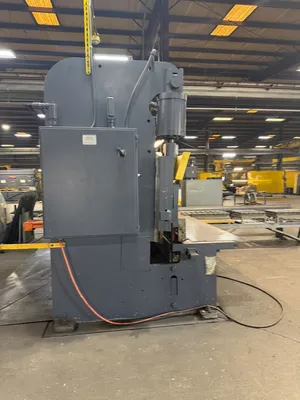

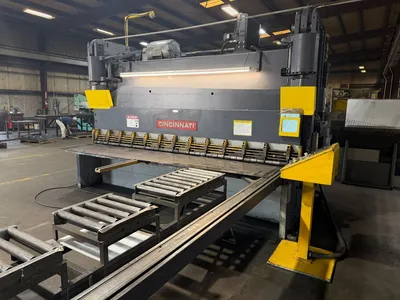

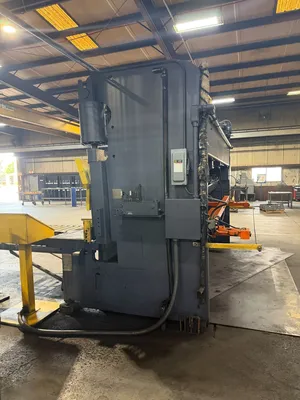

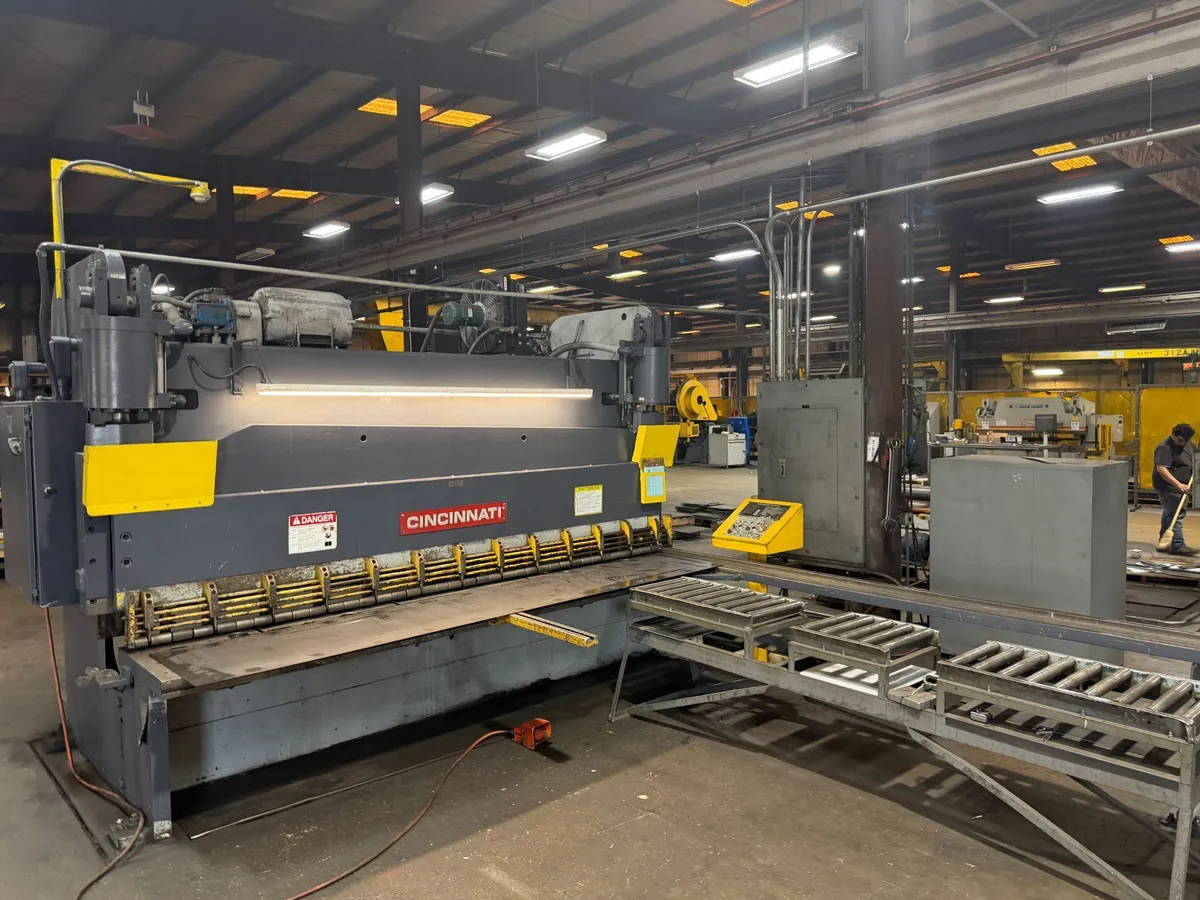

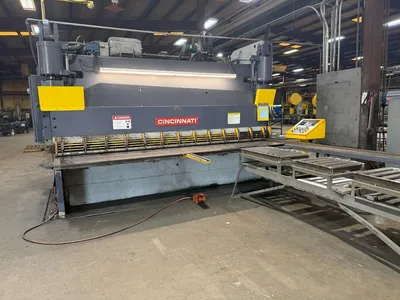

Cincinnati 4SE12 1/2" x 12' Hydraulic Power Shear

Cincinnati 4SE12 1/2" x 12' Hydraulic Power Shear

• Rated Capacity (Mild Steel): 1/2" (0.500 inches)
• Overall Shearing Length: 144” (12 Feet)
• Blade Size: 1” x 4” x 146” (approximate)

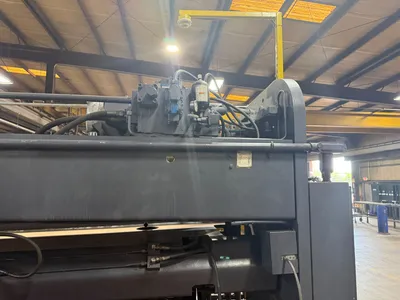

• Number of Hydraulic Holddowns: 15 clamping cylinders
• Total Holddown Force: 26.5 Tons

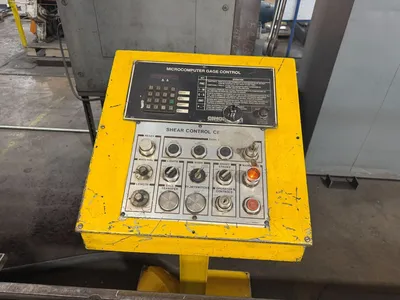

• Back Gauge Range: 1” to 48” (Front-operated power back gauge)

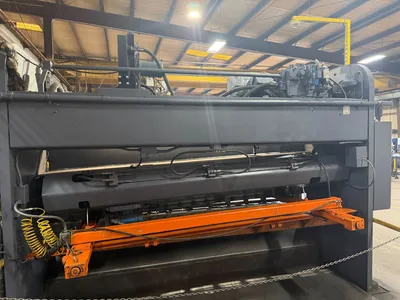

• Squaring Arm Length: 144” (12 Feet)
• Maximum Rake Per Foot: 0.438”
• Ram Speed: 113 IPM (Inches Per Minute) Down / 360 IPM Up
• Strokes Per Minute: 11 minimum to 30 maximum
• Main Motor: 40 H.P. (Typically wired for 230/460V, 3-Phase, 60Hz)
• Below Grade Apron (Pit Depth Requirement): 9.5” to 10”
• Approximate Machine Weight: 33,200 lbs
• Estimated Footprint (Floor Dimensions): 8' D x 15' W x 10.5' H (127" Overall Height)
