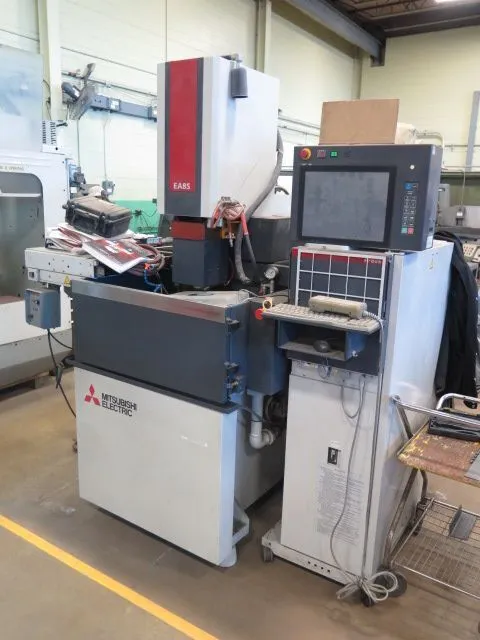

Mitsubishi EA8S Sinker Type EDM electrical Discharge Machine (2018)
Have one to sell?
ConditionUsed
1 available
Mitsubishi EA8S Sinker Type EDM electrical Discharge Machine (2018)
Mitsubishi EA8S Sinker Type EDM electrical Discharge Machine (2018)
• X-Axis Travel: 11.8 inches (300 mm)
• Y-Axis Travel: 9.8 inches (250 mm)
• Z-Axis Travel: 9.8 inches (250 mm)
• C-Axis Indexing Angle: 0.001 Degree (Standard)
• C-Axis RPM Range: 1 to 30 RPM
• Minimum Command Unit / Resolution: 0.00001” / 0.000002”
• Rapid Travel Speed: 78 inches per minute (IPM)
Work Tank & Table Capacities
• Table Dimensions (L x D): 19.7” x 13.8” (500 mm x 350 mm)
• Internal Work Tank Dimensions (W x D x H): 31.5” x 20.5” x 11.8” (800 mm x 520 mm)
• Maximum Workpiece Weight: 1,214 lbs (551 kg)
• Maximum Electrode Weight (Manual Change): 55 lbs (25 kg)
• Maximum Electrode Weight on C-Axis: 11 lbs (5 kg)
• Table to Platen Distance: 5.9” to 15.7”
Power Supply & Generator (FP80S)
• Peak Machining Current: 80 Amps
• Average Machining Current: 60 Amps
• Total Power Input Capacity: 6.5 kVA
• Electricity Savings: Engineered to reduce electrical consumption by 20% compared to previous FP generator lines.
Dielectric Fluid & Filtration System
• Reservoir Capacity: 69 Gallons (262 Liters)
• Fluid Filtration Type: Paper cartridge filter (1 pc)
• Fluid Chiller Capacity: 1.74 kW cooling unit (Standard)
Control & Software Features
• CNC Control System: M700 series CNC control with a 15-inch color touchscreen interface.
• Programming Engine: E.S.P.E.R. Advance conversational software.
• Adaptive Machining Control: Features Power Master GF2 (which can lower electrode wear by up to 80%) and SS Jump 5 stabilization to manage high-speed no-flush cavity burning.
• Finishing Circuits: Standard with a PS circuit for fine and micro-fine satin matte finishes.
Machine Footprint
• Floor Space Requirement: 35.2 sq ft
• Total System Weight: Approximately 4,400 lbs (1,996 kg)
Mitsubishi EA8S Sinker Type EDM electrical Discharge Machine (2018)
Imperial
| Table Size-W | 13.8" |
| Table Size-L | 19.7" |
| X | 11.8" |
| Y | 9.8" |
| Z | 9.8" |
Mitsubishi EA8S Sinker Type EDM electrical Discharge Machine (2018)
• X-Axis Travel: 11.8 inches (300 mm)
• Y-Axis Travel: 9.8 inches (250 mm)
• Z-Axis Travel: 9.8 inches (250 mm)
• C-Axis Indexing Angle: 0.001 Degree (Standard)
• C-Axis RPM Range: 1 to 30 RPM
• Minimum Command Unit / Resolution: 0.00001” / 0.000002”
• Rapid Travel Speed: 78 inches per minute (IPM)
Work Tank & Table Capacities
• Table Dimensions (L x D): 19.7” x 13.8” (500 mm x 350 mm)
• Internal Work Tank Dimensions (W x D x H): 31.5” x 20.5” x 11.8” (800 mm x 520 mm)
• Maximum Workpiece Weight: 1,214 lbs (551 kg)
• Maximum Electrode Weight (Manual Change): 55 lbs (25 kg)
• Maximum Electrode Weight on C-Axis: 11 lbs (5 kg)
• Table to Platen Distance: 5.9” to 15.7”
Power Supply & Generator (FP80S)
• Peak Machining Current: 80 Amps
• Average Machining Current: 60 Amps
• Total Power Input Capacity: 6.5 kVA
• Electricity Savings: Engineered to reduce electrical consumption by 20% compared to previous FP generator lines.
Dielectric Fluid & Filtration System
• Reservoir Capacity: 69 Gallons (262 Liters)
• Fluid Filtration Type: Paper cartridge filter (1 pc)
• Fluid Chiller Capacity: 1.74 kW cooling unit (Standard)
Control & Software Features
• CNC Control System: M700 series CNC control with a 15-inch color touchscreen interface.
• Programming Engine: E.S.P.E.R. Advance conversational software.
• Adaptive Machining Control: Features Power Master GF2 (which can lower electrode wear by up to 80%) and SS Jump 5 stabilization to manage high-speed no-flush cavity burning.
• Finishing Circuits: Standard with a PS circuit for fine and micro-fine satin matte finishes.
Machine Footprint
• Floor Space Requirement: 35.2 sq ft
• Total System Weight: Approximately 4,400 lbs (1,996 kg)
