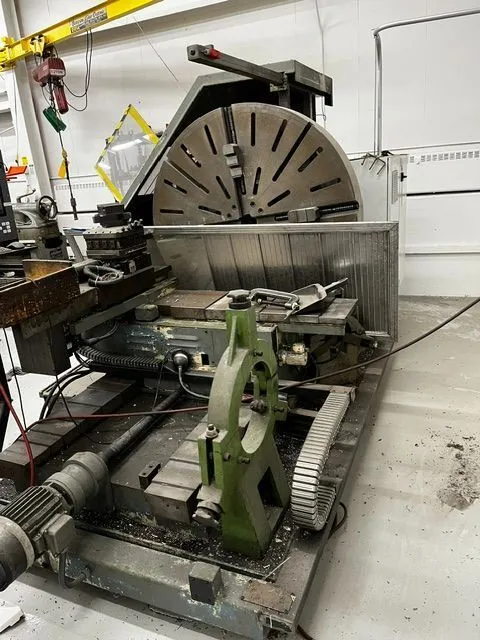

Lansing TAD FS750 60" Facing Lathe
Have one to sell?
ConditionUsed
1 available
Lansing TAD FS750 60" Facing Lathe
Lansing TAD FS750 60" Facing Lathe
• Swing Capacity: 60 inches (approx. 1500 mm over the bed).
• Faceplate 4-jaw independent or boring mill jaws.
• Spindle Nose Configuration: A1-11.
• Spindle Speeds: Variable speed range from 6 to 200 RPM.
• Spindle Motor Power: Typically 20 HP
n) up to 1000 mm depending on the exact bed extension variant.
Physical Dimensions & Weight
• Machine Weight: Approximately 11,028 lbs (5,000 kg) up to 14,770 lbs (6,700 kg) depending on the configuration and accessories.
• Floor Footprint Dimensions: Approx. 98.4" Length x 82.6" Width x 84.6" Height (2500 mm x 2100 mm x 2150 mm).
Steady Rest
Tooling Setup: 4-way heavy duty tool post mounted on a power compound slide.
Slide Mechanics: Features a swiveling cross slide allowing for tapered boring and facing profiles.
Feed System: Rapid traverse capabilities in both directions with multi-axis variable feed controls.
Operator Interface: Pendant control arm for safe operator positioning around large workpieces.
Lansing TAD FS750 60" Facing Lathe
Lansing TAD FS750 60" Facing Lathe
• Swing Capacity: 60 inches (approx. 1500 mm over the bed).
• Faceplate 4-jaw independent or boring mill jaws.
• Spindle Nose Configuration: A1-11.
• Spindle Speeds: Variable speed range from 6 to 200 RPM.
• Spindle Motor Power: Typically 20 HP
n) up to 1000 mm depending on the exact bed extension variant.
Physical Dimensions & Weight
• Machine Weight: Approximately 11,028 lbs (5,000 kg) up to 14,770 lbs (6,700 kg) depending on the configuration and accessories.
• Floor Footprint Dimensions: Approx. 98.4" Length x 82.6" Width x 84.6" Height (2500 mm x 2100 mm x 2150 mm).
Steady Rest
Tooling Setup: 4-way heavy duty tool post mounted on a power compound slide.
Slide Mechanics: Features a swiveling cross slide allowing for tapered boring and facing profiles.
Feed System: Rapid traverse capabilities in both directions with multi-axis variable feed controls.
Operator Interface: Pendant control arm for safe operator positioning around large workpieces.
