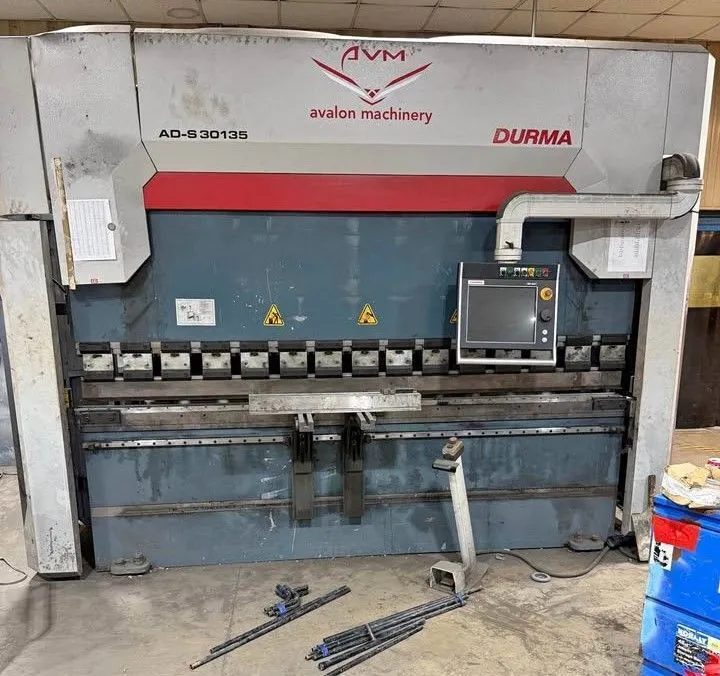

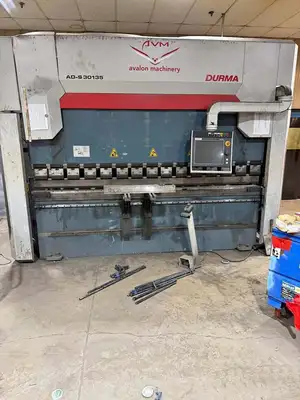

Durma ADS 30135 150 Ton x 10' Hydraulic Press Brake ( 2013)
Have one to sell?
ConditionUsed
1 available
Durma ADS 30135 150 Ton x 10' Hydraulic Press Brake ( 2013)
Durma ADS 30135 150 Ton x 10' Hydraulic Press Brake ( 2013)
Specification Metric Value Imperial / US Value
Bending Capacity 135 Tons (Metric) ~148.5 US Tons
Overall Bending Length 3,050 mm 120 inches (10 feet)
Distance Between Housings 2,600 mm 104 inches
Stroke Length 265 mm 10.4 inches
Daylight (Open Height) 530 mm 20.8 inches
Throat Depth 410 mm 16.1 inches
Main Motor Power 15 kW 20 HP
Oil Tank Capacity 200 Liters ~53 Gallons
Physical Machine Dimensions
• Overall Length: 4,250 mm (approx. 167 inches)
• Overall Width: 1,700 mm (approx. 67 inches)
• Overall Height: 2,850 mm (approx. 112 inches)
• Total Machine Weight: 9,580 kg (approx. 21,120 lbs)
Durma ADS 30135 150 Ton x 10' Hydraulic Press Brake ( 2013)
Imperial
| Tonnage | 150 T |
| Type | HYD |
| Overall Length | 10' |
| Between Housings | 8.5' |
| Stroke | 10.4" |
| # Axis | 8 |
Durma ADS 30135 150 Ton x 10' Hydraulic Press Brake ( 2013)
Specification Metric Value Imperial / US Value
Bending Capacity 135 Tons (Metric) ~148.5 US Tons
Overall Bending Length 3,050 mm 120 inches (10 feet)
Distance Between Housings 2,600 mm 104 inches
Stroke Length 265 mm 10.4 inches
Daylight (Open Height) 530 mm 20.8 inches
Throat Depth 410 mm 16.1 inches
Main Motor Power 15 kW 20 HP
Oil Tank Capacity 200 Liters ~53 Gallons
Physical Machine Dimensions
• Overall Length: 4,250 mm (approx. 167 inches)
• Overall Width: 1,700 mm (approx. 67 inches)
• Overall Height: 2,850 mm (approx. 112 inches)
• Total Machine Weight: 9,580 kg (approx. 21,120 lbs)
