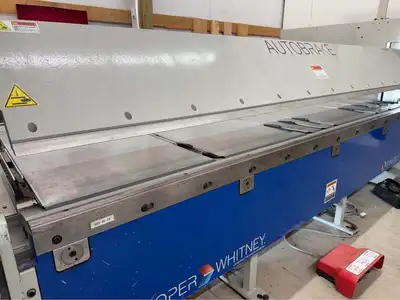

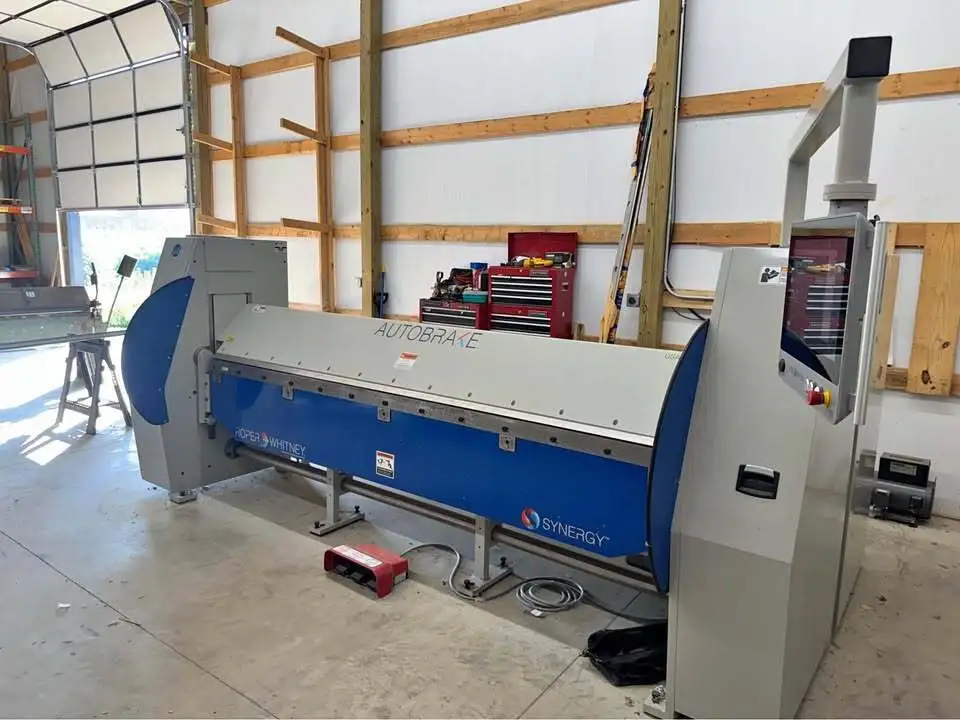

Roper Whitney AB1014 CNC Folding Machine (2025)

Roper Whitney AB1014 CNC Folding Machine (2025)

Specification Metric / Value Details
Max. Bending Length 122 inches (10 feet) Full capacity forming length
Mild Steel Capacity 14 Gauge Maximum thickness for standard steel
Stainless Steel Capacity 18 Gauge Maximum thickness for harder alloy
Clamping Beam Opening 7.3 inches Provides ample space for deep profiles
Bending Bars Provided 0.787", 0.390", 0.250" Different sizes for flexible setups

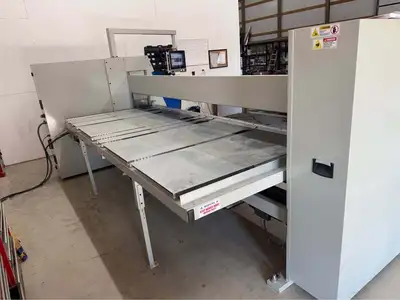

Backgauge Travel / Depth 41" or 61" Servo-driven positioning accuracy
Backgauge Weight Limit 700 lbs Maximum weight supported on table
Folding Beam Adjustment 2 inches Allows adjustments for material thickness
Folding Beam Crowning 5-point (0" – 0.030") Compensates for deflection during bends
Working Height 35 inches Ergonomic workspace standard
Approx. Shipping Weight ~7,500 lbs Heavy steel plate and weldment build
Approx. Dimensions 15' L x 8' W x 6' H Footprint required for shipping/placement
