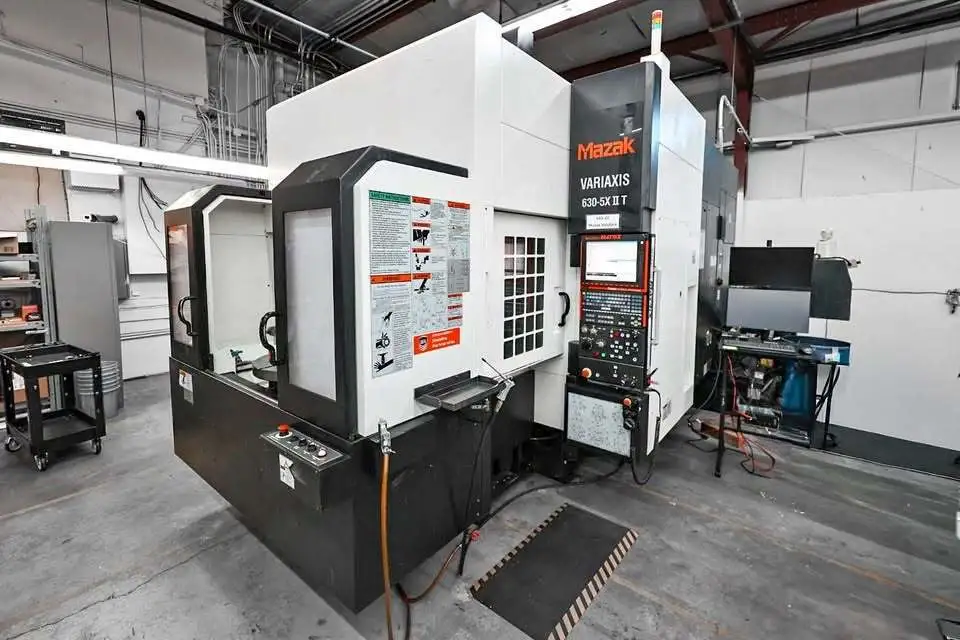

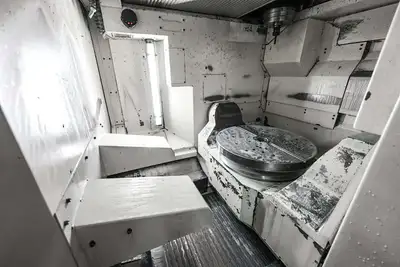

Mazak Variaxis 630-5X-II T 5 Axis Machining Center (2014)
Have one to sell?
ConditionUsed
1 available
Mazak Variaxis 630-5X-II T 5 Axis Machining Center (2014)
Mazak Variaxis 630-5X-II T 5 Axis Machining Center (2014)
Axis Travels & Capacity
• X-Axis Travel: 24.80" (630 mm)
• Y-Axis Travel: 30.12" (765 mm)
• Z-Axis Travel: 23.62" (600 mm)
• A-Axis (Tilt): -120° to +30°
• C-Axis (Rotation): 360° continuous (with axial control)
• Maximum Workpiece Dimensions: 28.74” Diameter × 19.69” Height (730 mm × 500 mm)

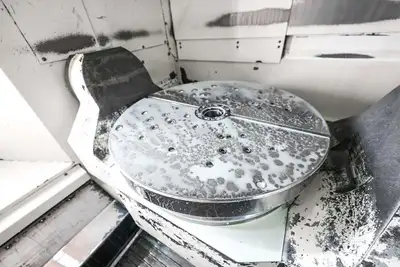

• Maximum Table Load Capacity: 1,102 lbs (500 kg)
Spindle & Turning Performance

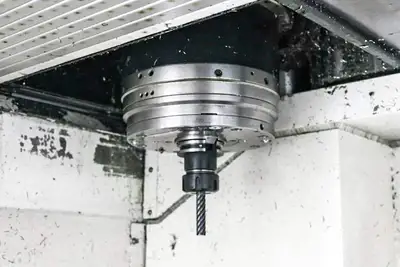

• Spindle Taper: 40 Big Plus
• Spindle Motor Power: 40 HP (29.8 kW)
• Maximum Milling Speed: Options up to 12,000 RPM or 18,000 RPM

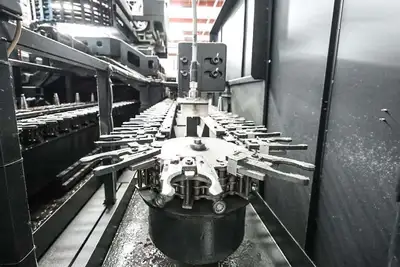

ATC: 120 Positions

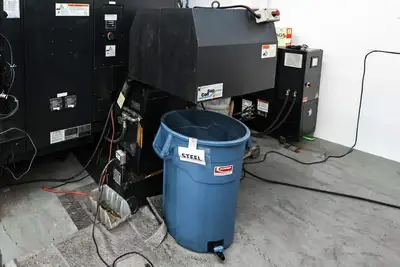

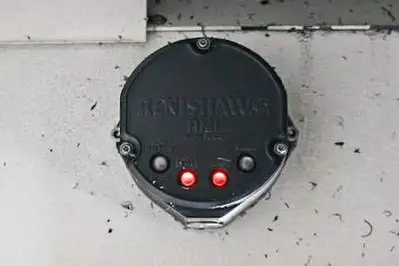

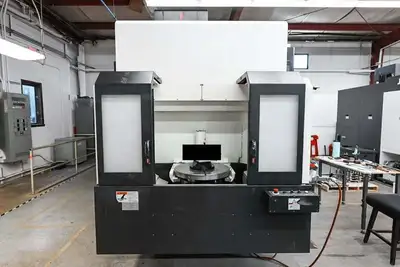

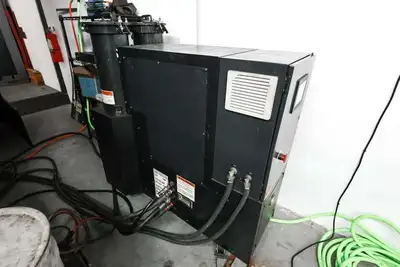

Pallet changer, 120-tool carousel, CAT 40 BIG-PLUS tooling, Renishaw probe, high-pressure coolant system, chip conveyor and mist collector,
Mazak Variaxis 630-5X-II T 5 Axis Machining Center (2014)
Imperial
| X | 24.8" |
| Y | 30.12" |
| Z | 23.62" |
| Power | 40 hp |
| RPM | 18,000 RPM |
| # ATC | 30 |
| # Axis | 5 |
Mazak Variaxis 630-5X-II T 5 Axis Machining Center (2014)
Axis Travels & Capacity
• X-Axis Travel: 24.80" (630 mm)
• Y-Axis Travel: 30.12" (765 mm)
• Z-Axis Travel: 23.62" (600 mm)
• A-Axis (Tilt): -120° to +30°
• C-Axis (Rotation): 360° continuous (with axial control)
• Maximum Workpiece Dimensions: 28.74” Diameter × 19.69” Height (730 mm × 500 mm)
• Maximum Table Load Capacity: 1,102 lbs (500 kg)
Spindle & Turning Performance
• Spindle Taper: 40 Big Plus
• Spindle Motor Power: 40 HP (29.8 kW)
• Maximum Milling Speed: Options up to 12,000 RPM or 18,000 RPM
ATC: 120 Positions
Pallet changer, 120-tool carousel, CAT 40 BIG-PLUS tooling, Renishaw probe, high-pressure coolant system, chip conveyor and mist collector,
