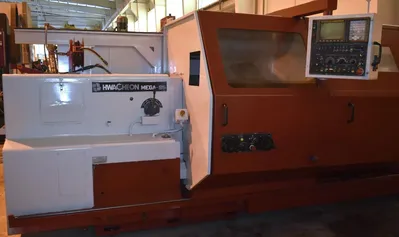

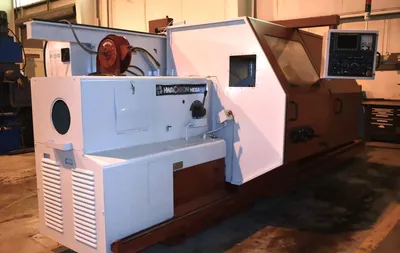

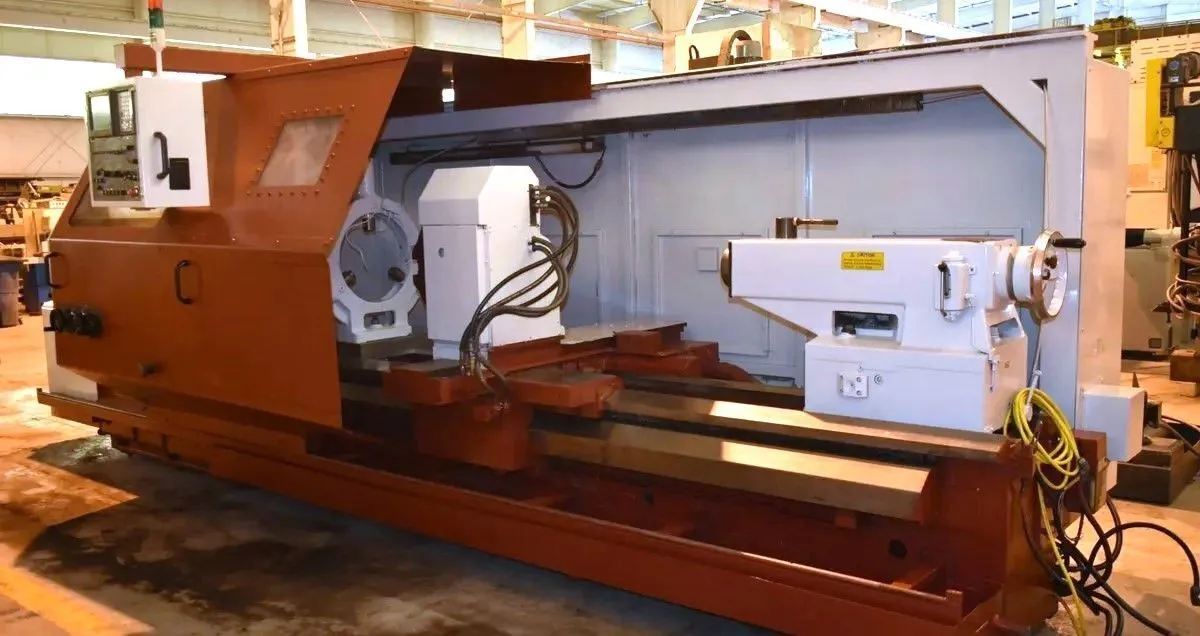

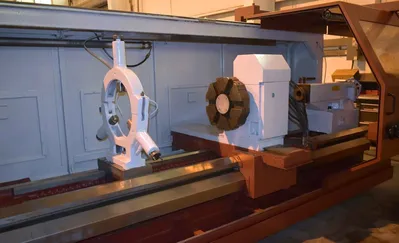

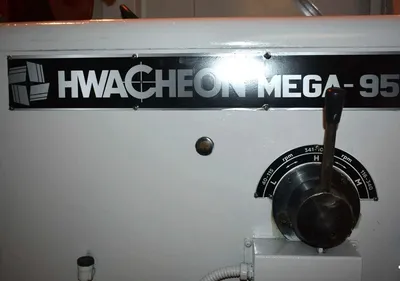

Hwacheon Mega-95 48" x 10' CNC Lathe
Have one to sell?
ConditionUsed
1 available
Hwacheon Mega-95 48" x 10' CNC Lathe
Hwacheon Mega-95 48" x 10' CNC Lathe
Swing in Gap 48.4"
Swing Over Bed, Maximum 38.5"
Swing Over Cross Slide 26.2"
Distance Between Centers 118"
Cross Travel (X-Axis) 19.09"
Longitudinal Travel (Z-Axis) 118"
Hole thru Spindle 6"
Spindle Speeds, Range 40 to 1000 RPM
Rapid Traverse Rate 236 IPM
Tailstock Quill Travel 10.2"
Motor Horsepower 30 HP
Overall Dimensions, L x W 236" x 99"
Overall Height 85"
Weight Approximately 22000 LBS
Fanuc 21-T CNC Control w/CRT (Pendant Mounted)
24" 3-Jaw Chuck - A2-15 Spindle Nose
12-Position Hydraulic Tool Holding Turret On Cross-Slide
A2-15 Spindle Nose
Full Lenth Coolant System (Tank & Pump)
Turbo Systems Chip Conveyor (Full Length)
Heavy-Duty Tailstock w/One Shot Lubrication
CATALOG SPECIFICATIONS:
Hole thru Spindle 6"
Swing Over Bed, Maximum 38.5"
Swing Thru Gap 48.4"
Swing Over Cross Slide 26.2"
Distance Between Centers 118"
Cross Travel (X-Axis) 19.09"
Longitudinal Travel (Z-Axis) 118"
Spindle Speeds, Range 40 to 1000 RPM
Rapid Traverse Rate 236 IPM
Tailstock Quill Travel 10.2"
Motor Horsepower 30 HP
Overall Dimensions, L x W 236" x 99"
Overall Height 85"
Weight Approximately 22000 LBS
Hwacheon Mega-95 48" x 10' CNC Lathe
Imperial
| Swing | 49" |
| Machining Length | 128" |
| # Axis | 2 |
| Chuck Size | 24" |
| Bar Capacity | 6" |
| Power | 30 hp |
| Max RPM | 100 RPM |
Hwacheon Mega-95 48" x 10' CNC Lathe
Swing in Gap 48.4"
Swing Over Bed, Maximum 38.5"
Swing Over Cross Slide 26.2"
Distance Between Centers 118"
Cross Travel (X-Axis) 19.09"
Longitudinal Travel (Z-Axis) 118"
Hole thru Spindle 6"
Spindle Speeds, Range 40 to 1000 RPM
Rapid Traverse Rate 236 IPM
Tailstock Quill Travel 10.2"
Motor Horsepower 30 HP
Overall Dimensions, L x W 236" x 99"
Overall Height 85"
Weight Approximately 22000 LBS
Fanuc 21-T CNC Control w/CRT (Pendant Mounted)
24" 3-Jaw Chuck - A2-15 Spindle Nose
12-Position Hydraulic Tool Holding Turret On Cross-Slide
A2-15 Spindle Nose
Full Lenth Coolant System (Tank & Pump)
Turbo Systems Chip Conveyor (Full Length)
Heavy-Duty Tailstock w/One Shot Lubrication
CATALOG SPECIFICATIONS:
Hole thru Spindle 6"
Swing Over Bed, Maximum 38.5"
Swing Thru Gap 48.4"
Swing Over Cross Slide 26.2"
Distance Between Centers 118"
Cross Travel (X-Axis) 19.09"
Longitudinal Travel (Z-Axis) 118"
Spindle Speeds, Range 40 to 1000 RPM
Rapid Traverse Rate 236 IPM
Tailstock Quill Travel 10.2"
Motor Horsepower 30 HP
Overall Dimensions, L x W 236" x 99"
Overall Height 85"
Weight Approximately 22000 LBS
