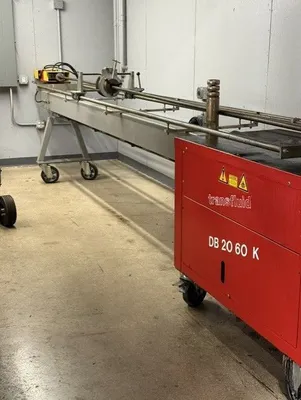

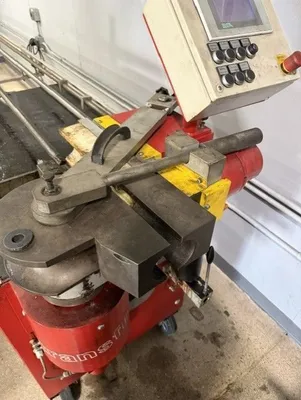

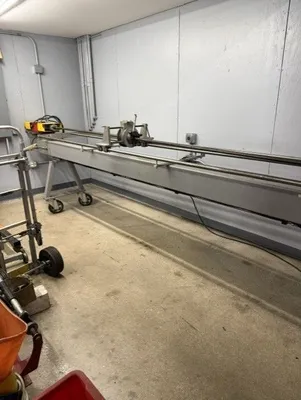

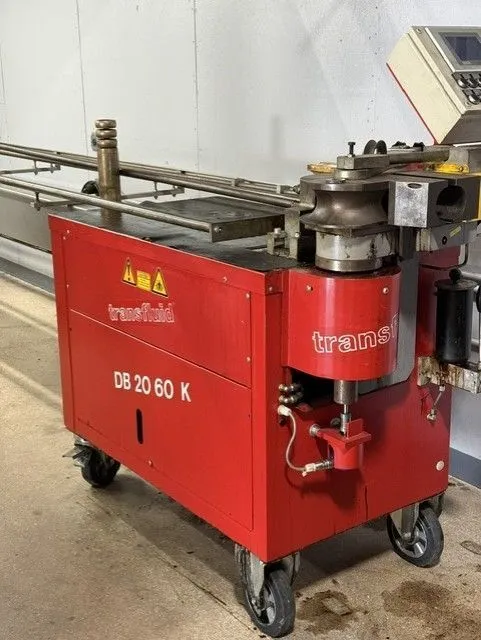

Transfluid DB 2060 CNC Tube Bender (2004)

Transfluid DB 2060 Tube CNC Tube Bender (2004)

• Maximum Tube Diameter (OD): Up to 3 inches (70 mm) for standard configurations; up to 2-3/8 inches for longer lengths.
• Min/Max OD Range: 1/4 inch to 2-3/8 inches (or up to 70 mm on newer CNC-R/L models).
• Mild Steel Capacity: Up to 2-3/8″ x 0.236″ wall thickness (varies by model variant like the DB 2060-K).
• Square Tubing Capacity: Up to 2″ x 0.138″ (mild steel) or 50 x 50 mm profiles.
• Bending Length: 10 feet (approx. 3000 mm) up to 3-inch OD; 20 feet (up to 6000–6500 mm) for smaller diameters.
• Bending Angle (Max): Up to 180°–190° plus springback compensation.
• Bending Radius: Tight radii capabilities starting from 0.8 x D (up to ~6-inch max center line radius depending on tooling)
