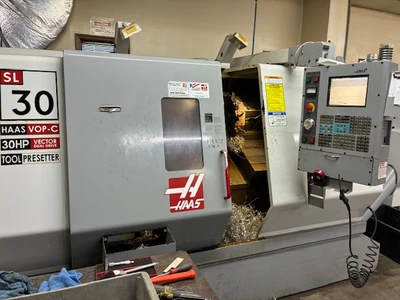

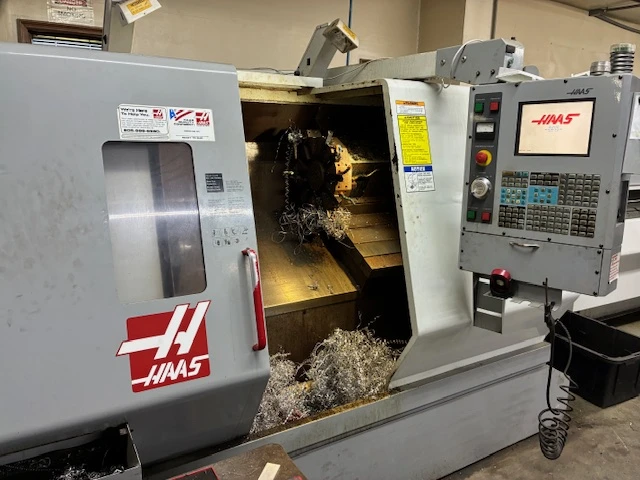

Haas SL-30 CNC Lathe (2005)
Have one to sell?
ConditionUsed
1 available
Haas SL-30 CNC Lathe (2005)
Haas SL-30 CNC Lathe (2005)
Maximum Swing Over Apron: 30"
Maximum Swing Over Cross Slide: 14.5"
Maximum Cutting Diameter: 17"
Maximum Turning Length: 34"
Distance Between Centers: 39"
X-Axis Travel: 11.3"
Z-Axis Travel: 34"
Spindle Speed: 3,400 RPM
Spindle Motor: 30HP
Turret Type: 12 Positions Bolt on Type
Tailstock Travel: 33.5"
Rapid Traverse Rates: 710-IPM

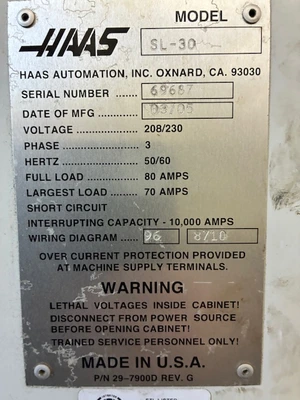

Electrical: 208/230V, 3ph
Machine Dimensions: 161" x 77" x 74"
Approximate machine Weight: 13,900Lbs

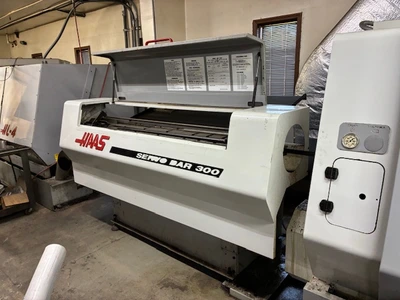

Haas Barfeed
Tool Presetter
10" Chuck
Chip Auger
Haas SL-30 CNC Lathe (2005)
Imperial
| size | 10" Chuck |
| Swing | 34" |
| Machining Length | 26" |
| # Axis | 2 |
| Chuck Size | 10" |
| Bar Capacity | 3" |
| Power | 30 hp |
| Max RPM | 3,400 RPM |
| Turning Dia | 17" |
| Tailstock | 'No' |
| Live Tooling | 'No' |
| Sub Spindle | 'No' |
Haas SL-30 CNC Lathe (2005)
Maximum Swing Over Apron: 30"
Maximum Swing Over Cross Slide: 14.5"
Maximum Cutting Diameter: 17"
Maximum Turning Length: 34"
Distance Between Centers: 39"
X-Axis Travel: 11.3"
Z-Axis Travel: 34"
Spindle Speed: 3,400 RPM
Spindle Motor: 30HP
Turret Type: 12 Positions Bolt on Type
Tailstock Travel: 33.5"
Rapid Traverse Rates: 710-IPM
Electrical: 208/230V, 3ph
Machine Dimensions: 161" x 77" x 74"
Approximate machine Weight: 13,900Lbs
Haas Barfeed
Tool Presetter
10" Chuck
Chip Auger
