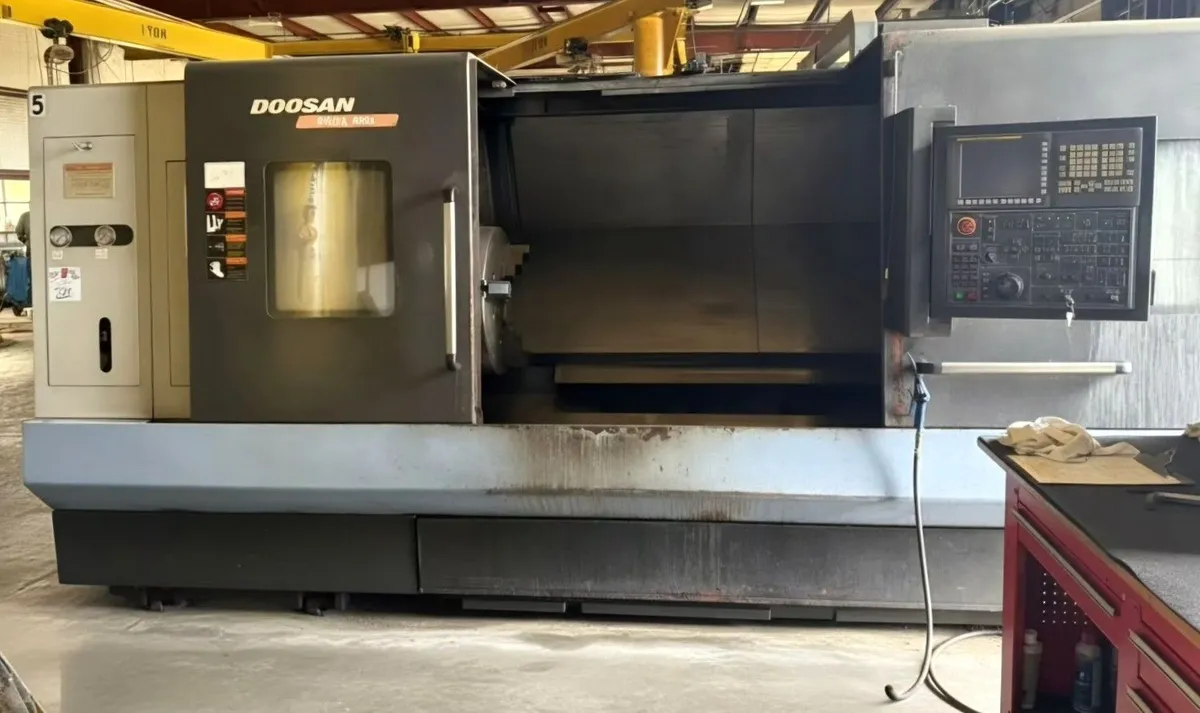

Doosan Puma 480L Long Bed CNC Lathe (2012)
Have one to sell?
ConditionUsed
1 available
Doosan Puma 480L Long Bed CNC Lathe (2012)
Doosan Puma 480L Long Bed CNC Lathe (2012)
Max. Swing: 35.4"
Max Turning Diameter: 25.6"
Spindle Bore/Max Bar Capacity: 7.1"/ 6.5"
Z Travel: 84.8"
X Travel: 14.3"
Machining Length: 80.4"

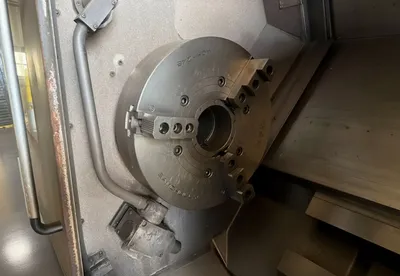

Chuck Size: 24"
Chuck Type Hydraullic
Spindle Speeds (RPM)1500
Spindle Bore/Bar Capacity: 7.1 in
Max. Bar Capacity: 6.5"

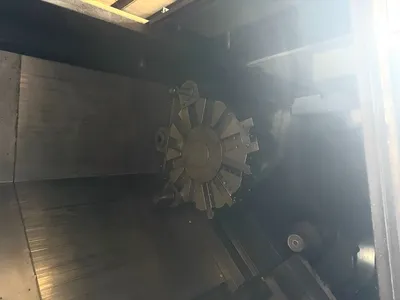

Turret Tool Positions10
Tailstock
Chip Conveyor

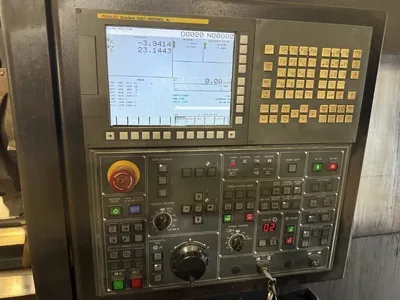

FANUC 32i-A control
Doosan Puma 480L Long Bed CNC Lathe (2012)
Imperial
| Swing | 35.4" |
| Machining Length | 82.6" |
| Chuck Size | 24" |
| Bar Capacity | 6.5" |
| Power | 60 hp |
| Max RPM | 1,500 RPM |
| Turning Dia | 35.4" |
| Tailstock | Yes |
Doosan Puma 480L Long Bed CNC Lathe (2012)
Max. Swing: 35.4"
Max Turning Diameter: 25.6"
Spindle Bore/Max Bar Capacity: 7.1"/ 6.5"
Z Travel: 84.8"
X Travel: 14.3"
Machining Length: 80.4"
Chuck Size: 24"
Chuck Type Hydraullic
Spindle Speeds (RPM)1500
Spindle Bore/Bar Capacity: 7.1 in
Max. Bar Capacity: 6.5"
Turret Tool Positions10
Tailstock
Chip Conveyor
FANUC 32i-A control
