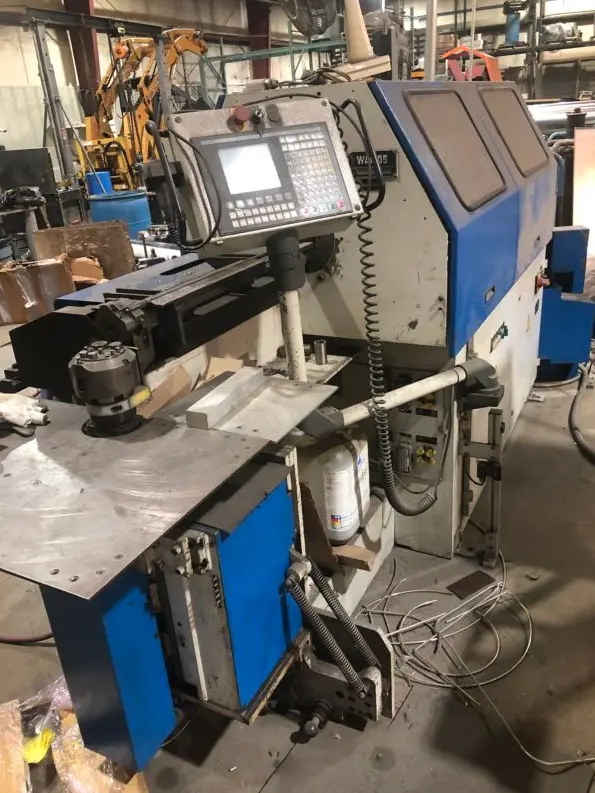

Wafios BM 4 Rod Bending Machine

• Wire Diameter Capacity (600 N/mm²): 3.0 – 8.0 mm
• Wire Diameter Capacity (1,200 N/mm²): 3.0 – 5.0 mm
• Wire Diameter Capacity (1,900 N/mm²): 3.0 – 4.3 mm
• Feed Rollers: 3 pairs
• Number of CNC Axes: 6 base axes
• Bend-back clearance: 200 / 500 / 800 / 1,100 / 1,400 mm (infinite adjustment via CNC axis optional)
• Stroke, Bending Head (Z axis): +18 mm / -122 mm
• Transverse Stroke, Bending Head (B axis): +60 mm / -60 mm
• CNC Support Plate (X axis option): +25 mm / -235 mm
• Displaceable Cutting Unit (@V axis option): 200 mm
• Lowering the Bending Pin, Inside (K axis option): -30 mm
• Bending Head Positioning: +25° fixed
