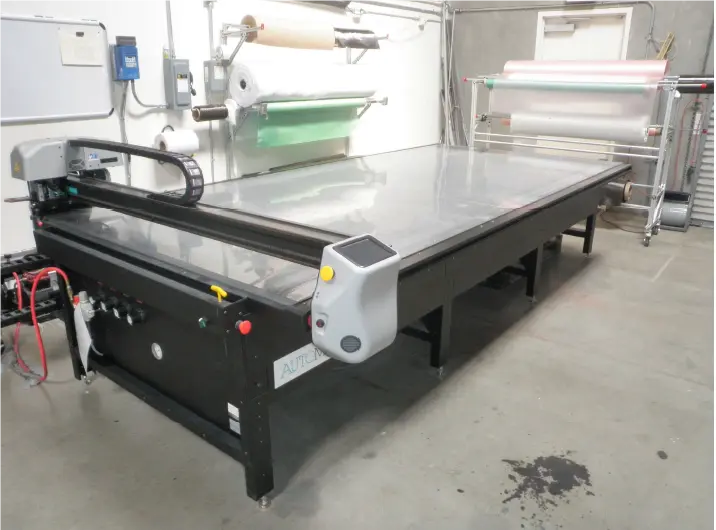

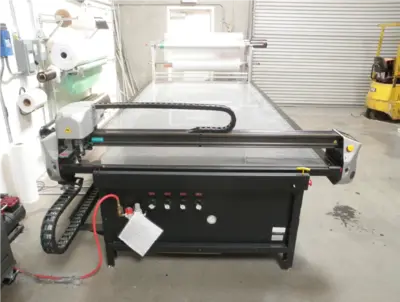

Autometrix Radium 63" x 10' CNC Cutting / Plotting Table System (2019)

Autometrix Radium 63" x 10' CNC Cutting / Plotting Table System (2019)

Cutting area: 6'3" x 10'
Performance Specs
• Max Cutting Speed: 45 in/s (1.14 m/s)
• Max Acceleration: 0 to maximum speed in 0.32 seconds
• Cutting Accuracy: ±0.020 in (0.51 mm)
• Repeatability: 0.005 in (0.13 mm)
• Drive System: Heavy-duty rack & pinion driven by high-torque servo motors
Tooling & Table Build
• Gantry Construction: Lightweight, high-rigidity carbon fiber beam
• Material Hold-Down: Integrated high-quality zoned vacuum table
• Max Material Thickness: Up to 2.0 in (50 mm) for lofted materials
• Standard Tool Mounts: 2 cutting tool mounts and 1 plotting/pen mount on the head
Shop Setup Requirements
• Compressed Air: 60–100 PSI shop pressure capable of providing 5 CFM
