Trumpf Trulaser 5040 6' x 12' 10000 Watt Fiber Laser (2020)

Trumpf Trulaser 5040 6' x 12' 10000 WATT Fiber Laser (2020)

Length 11200 mm
Width 6373 mm
Height 2200 mm
Weight 14300 kg
Maximum speed
Simultaneous 280 m/min
Working range
X axis 4000 mm
Y axis 2000 mm
Maximum workpiece weight without heavy-duty pallet changer 2000 kg
Maximum workpiece weight with heavy-duty pallet changer 3300 kg
Maximum workpiece weight on both pallets with heavy-duty pallet changer 3900 kg 2
Laser-specific data - TruFiber 6001
Maximum laser power 6000 W
Maximum sheet thickness, mild steel 25 mm
Maximum mild steel sheet thickness with cutting package for thick sheets 32 mm
Maximum sheet thickness, stainless steel 25 mm
Maximum stainless steel sheet thickness with cutting package for thick sheets 35 mm
Maximum sheet thickness, aluminum 25 mm
Maximum sheet thickness, copper 10 mm
Maximum sheet thickness, brass 10 mm
Laser-specific data - TruFiber 9001
Maximum laser power 9000 W
Maximum sheet thickness, mild steel 30 mm
Maximum mild steel sheet thickness with cutting package for thick sheets 32 mm
Maximum sheet thickness, stainless steel 40 mm
Maximum sheet thickness, aluminum 30 mm
Maximum sheet thickness, copper 16 mm
Maximum sheet thickness, brass 12.7 mm
Laser-specific data - TruFiber 12001
Maximum laser power 12000 W
Maximum sheet thickness, mild steel 30 mm
Maximum mild steel sheet thickness with cutting package for thick sheets 50 mm
Maximum sheet thickness, stainless steel 40 mm
Maximum stainless steel sheet thickness with cutting package for thick sheets 50 mm
Maximum sheet thickness, aluminum 30 mm
Maximum aluminum sheet thickness with cutting package for thick sheets 40 mm
Maximum sheet thickness, copper 16 mm
Maximum sheet thickness, brass 12.7 mm
Laser-specific data - TruFiber 24001
Maximum laser power 24000 W
Maximum sheet thickness, mild steel 40 mm
Maximum mild steel sheet thickness with cutting package for thick sheets60 mm
Maximum sheet thickness, stainless steel 40 mm
Maximum stainless steel sheet thickness with cutting package for thick sheets 60 mm
Maximum sheet thickness, aluminum 40 mm
Maximum sheet thickness, copper 16 mm
Maximum sheet thickness, brass 12.7 mm
Consumption values
Average power input in production - TruFiber 6001 11 kW
Average power input in production - TruFiber 9001 14.5 kW
Average power input in production - TruFiber 12001 16 kW 1
Average power input in production - TruFiber 24001 27 kW
Shipping Dimensions

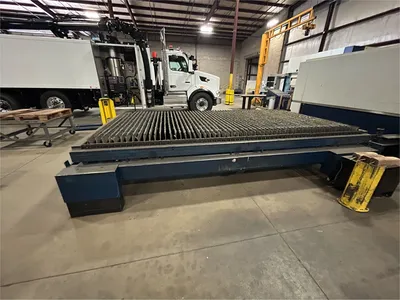

Bed 176 x 107
Laser 239 x 142 x 84
Power Source Cabinet 79 x 48 x 62

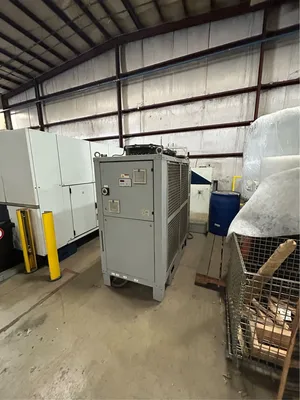

Chiller 91 x 36 x 66
