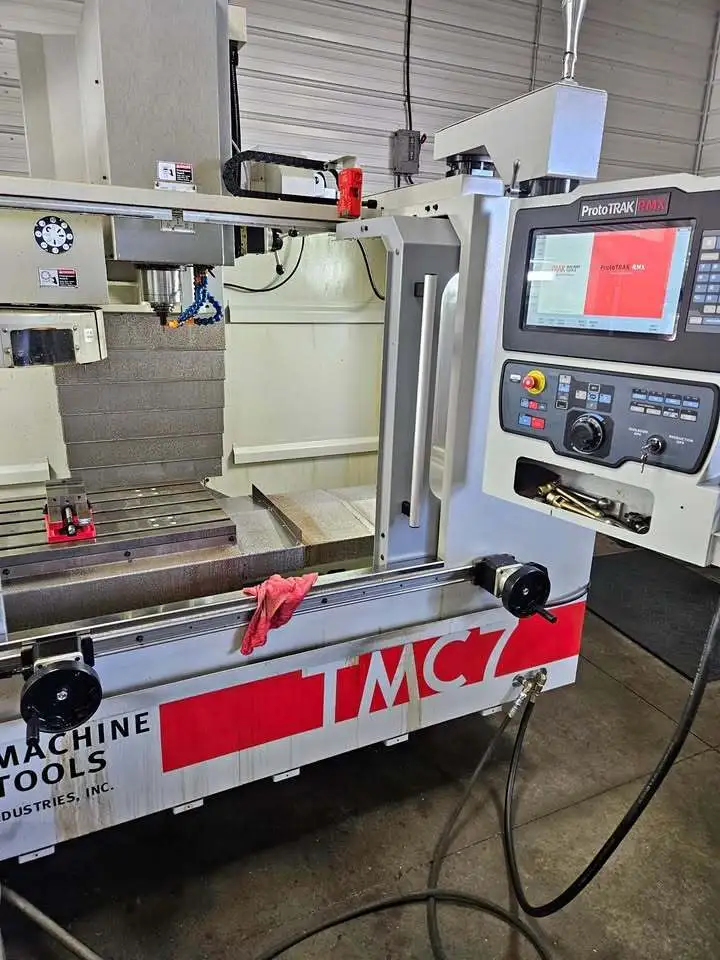

Southwestern Industries TRAK TMC7 Vertical Machining Center (2021)
Have one to sell?
ConditionUsed
1 available
Southwestern Industries TRAK TMC7 Vertical Machining Center (2021)
Southwestern Industries TRAK TMC7 Vertical Machining Center (2021)
Capacity & Axis Travels
X-Axis Travel: 30″
Y-Axis Travel: 20″
Z-Axis Travel: 20″ (with soft limits)
Table Size: 35.43″ x 19.69″
T-Slots: 5 slots x 0.709″ width x 3.937″ pitch
Maximum Workpiece Weight: 1,000 lbs
Spindle Specs
Spindle Taper: 40 Taper
Spindle Speed Range: 50 – 15000 RPM
)Spindle Motor Power: 15 HP Peak / 10 HP Continuous
Spindle Nose Diameter: 3″
Tool Clamping Force: 1,500 lbs (at 90 psi)
Automatic Tool Changer (ATC)Tool Capacity: 16-station carousel
Carousel Speed: 0.8 seconds station-to-station
Tool Selection System: Bi-directional
Maximum Tool Weight: 15 lbs (including tool holder)
Maximum Tool Diameter: 3.14
Electrics 208/3/60
Southwestern Industries TRAK TMC7 Vertical Machining Center (2021)
Imperial
| Table-W | 19.69" |
| Table-L | 35.43" |
| Travel-Long | 30" |
| Travel-Cross | 20" |
| Power | 15 hp |
| RPM | 15,000 RPM |
| Taper | CAT40 |
Southwestern Industries TRAK TMC7 Vertical Machining Center (2021)
Capacity & Axis Travels
X-Axis Travel: 30″
Y-Axis Travel: 20″
Z-Axis Travel: 20″ (with soft limits)
Table Size: 35.43″ x 19.69″
T-Slots: 5 slots x 0.709″ width x 3.937″ pitch
Maximum Workpiece Weight: 1,000 lbs
Spindle Specs
Spindle Taper: 40 Taper
Spindle Speed Range: 50 – 15000 RPM
)Spindle Motor Power: 15 HP Peak / 10 HP Continuous
Spindle Nose Diameter: 3″
Tool Clamping Force: 1,500 lbs (at 90 psi)
Automatic Tool Changer (ATC)Tool Capacity: 16-station carousel
Carousel Speed: 0.8 seconds station-to-station
Tool Selection System: Bi-directional
Maximum Tool Weight: 15 lbs (including tool holder)
Maximum Tool Diameter: 3.14
Electrics 208/3/60
