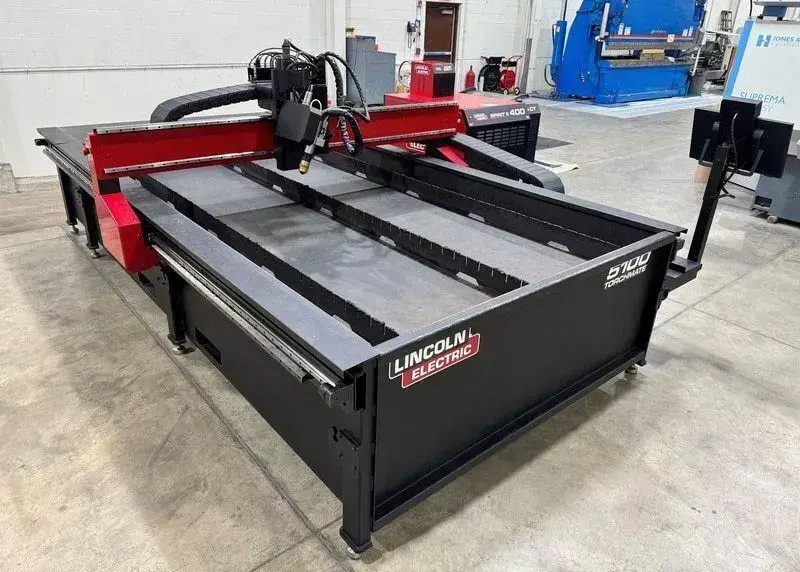

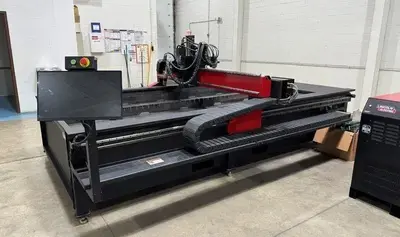

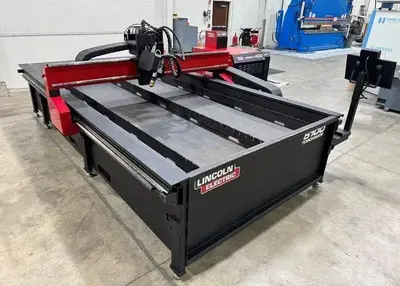

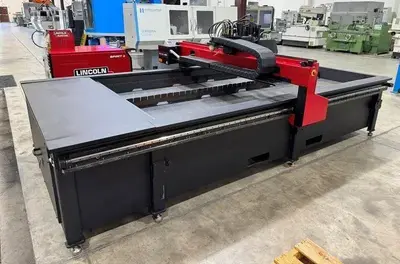

Lincoln Electric Model Torchmate 5100 5-Axis 400 Amp CNC Plasma Cutting Machine (2021)
Have one to sell?
ConditionUsed
1 available
Lincoln Electric Model Torchmate 5100 5-Axis 400 Amp CNC Plasma Cutting Machine (2021), Hours – approximate: 1,500
Lincoln Electric Model Torchmate 5100 5-Axis 400 Amp CNC Plasma Cutting Machine (2021)
SPECIFICATIONS:
Cutting Area…………60″ x 120″
Traverse Speed…………1,500 IPM
Cut Speed…………Up to 450 IPM
Plate Capacity…………Holds up to 4″ 5′ x 10′ Mild Steel Sheet
Cutting Capacity – Production:
– Mild Steel…………2″
– Stainless Steel…………1.5″
– Aluminum…………1.5″
Mild Steel No Dross Edge Start Maximum Thickness…………3″
Cutting Speed – Mild Steel @ Rated Output Current
– 1/4″…………230 IPM @ 200A
– 1/2″…………160 IPM @ 400A
– 1″…………85 IPM @ 400A
Z-Axis Travel…………6″
Bevel Capabilities…………+/-45° Cut [Dependent on material thickness & power supply configuration]
Operating Temperature…………32-104°F
Motors…………Servo Motors Fitted with Rotary Glass Encoders
Drive System…………Helical Gear Rack & Hardened Pinion w/Lubrication System
Linear Guidance…………Profile Linear Rail
Accerleration Rate…………0.08g
Deceleration Rate…………0.08g
Cutting Gas:
– Mild Steel…………Oxygen / Air Oxygen / Oxygen
– Stainless Steel…………Air / Air – Nitrogen H17 / Nitrogen Nitrogen / Air
– Aluminum…………Air / Nitrogen Nitrogen Air
Process Amps…………30 – 400
Power Supply Electrics…………480V/3Ph/60Hz/120A
Weight – Catalog…………6,600 Lbs.
Footprint Dimensions – Catalog…………113.5″L x 166″W
Utilization Hours – approximate: 1,500
Hours – approximate: 1,500

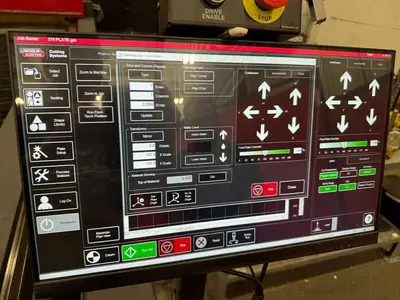

Lincoln Plasma Console Touchscreen HMI

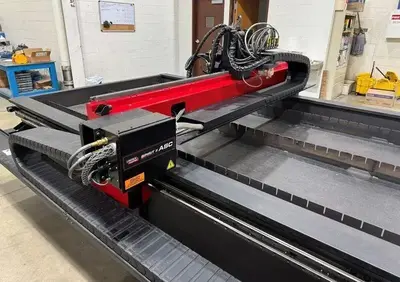

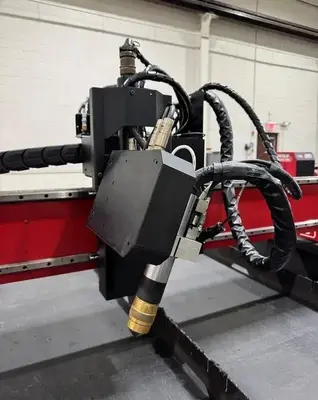

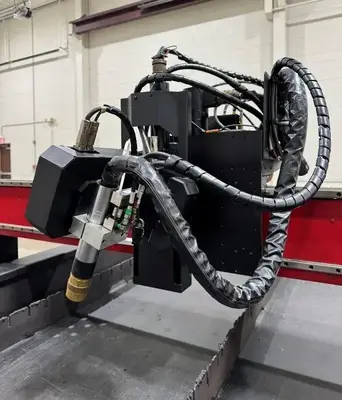

Bevel Head Attachment (Allowing for six different kinds of cuts)

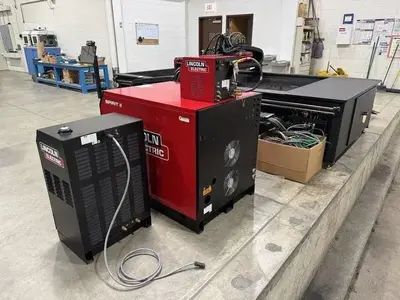

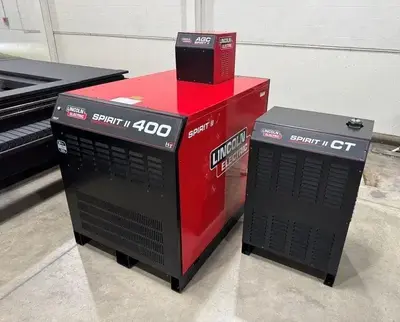

Lincoln Spirit II 400 FineLine High Definition (HD) Plasma Power Supply [BK300238]
Lincoln Spirit II CT Cooling Tower [BK300275]
Lincoln Spirit II Automatic Gas Console (AGC) [BK300418]
Lincoln Impulse Start Consols (ISC) [BK300505]
ATHC – Automatic Torch Height Control
IHS – Ohmic Sensing
Adjustable Water Table

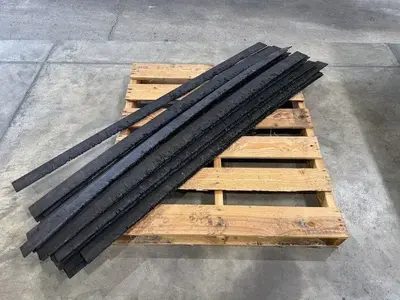

Misc. Spare Parts and Documentation
Lincoln Electric Model Torchmate 5100 5-Axis 400 Amp CNC Plasma Cutting Machine (2021), Hours – approximate: 1,500
Imperial
| # Plasma Torches | 2 |
Lincoln Electric Model Torchmate 5100 5-Axis 400 Amp CNC Plasma Cutting Machine (2021)
SPECIFICATIONS:
Cutting Area…………60″ x 120″
Traverse Speed…………1,500 IPM
Cut Speed…………Up to 450 IPM
Plate Capacity…………Holds up to 4″ 5′ x 10′ Mild Steel Sheet
Cutting Capacity – Production:
– Mild Steel…………2″
– Stainless Steel…………1.5″
– Aluminum…………1.5″
Mild Steel No Dross Edge Start Maximum Thickness…………3″
Cutting Speed – Mild Steel @ Rated Output Current
– 1/4″…………230 IPM @ 200A
– 1/2″…………160 IPM @ 400A
– 1″…………85 IPM @ 400A
Z-Axis Travel…………6″
Bevel Capabilities…………+/-45° Cut [Dependent on material thickness & power supply configuration]
Operating Temperature…………32-104°F
Motors…………Servo Motors Fitted with Rotary Glass Encoders
Drive System…………Helical Gear Rack & Hardened Pinion w/Lubrication System
Linear Guidance…………Profile Linear Rail
Accerleration Rate…………0.08g
Deceleration Rate…………0.08g
Cutting Gas:
– Mild Steel…………Oxygen / Air Oxygen / Oxygen
– Stainless Steel…………Air / Air – Nitrogen H17 / Nitrogen Nitrogen / Air
– Aluminum…………Air / Nitrogen Nitrogen Air
Process Amps…………30 – 400
Power Supply Electrics…………480V/3Ph/60Hz/120A
Weight – Catalog…………6,600 Lbs.
Footprint Dimensions – Catalog…………113.5″L x 166″W
Utilization Hours – approximate: 1,500
Hours – approximate: 1,500
Lincoln Plasma Console Touchscreen HMI
Bevel Head Attachment (Allowing for six different kinds of cuts)
Lincoln Spirit II 400 FineLine High Definition (HD) Plasma Power Supply [BK300238]
Lincoln Spirit II CT Cooling Tower [BK300275]
Lincoln Spirit II Automatic Gas Console (AGC) [BK300418]
Lincoln Impulse Start Consols (ISC) [BK300505]
ATHC – Automatic Torch Height Control
IHS – Ohmic Sensing
Adjustable Water Table
Misc. Spare Parts and Documentation
