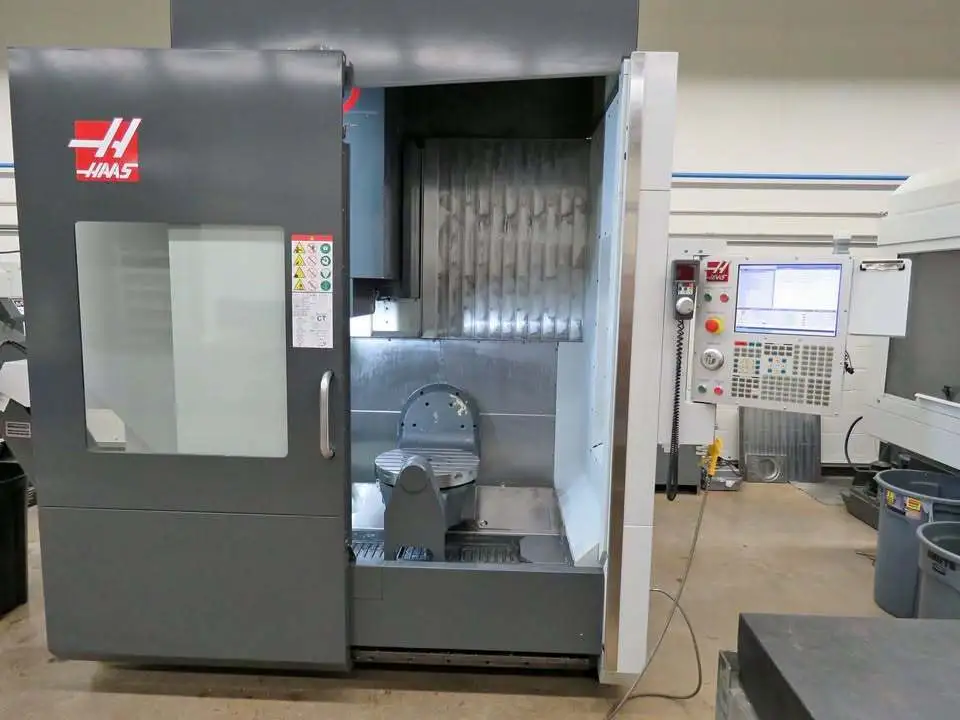

HAAS UMC-750SS 5 Axis Machining Center (2019)

HAAS UMC-750SS 5 Axis Machining Center (2019)

Travels & Work Envelope
X-Axis Travel: 30 in (762 mm)
Y-Axis Travel: 20 in (508 mm)
Z-Axis Travel: 20 in (508 mm)
B-Axis Tilt (Travel): +120° to -35°
C-Axis Rotation: 360°
Max Part Swing: 27 in (686 mm)
Spindle Nose to Table (max): 24 in (610 mm)
Spindle Nose to Table (min): 4 in (102 mm)
Spindle & Performance
Spindle Speed: Up to 15,000 RPM (Inline Direct-Drive)
Spindle Motor: 30 hp (22.4 kW) Vector Drive
Spindle Taper: CAT 40
Rapid Traverse Rate: 1,200 ipm (30.5 m/min)
Trunnion Table & CapacityPlatter Diameter: 19.7 in (500 mm) with standard T-slotsMax
Weight on Table: 660 lbs (300 kg)
ool ChangerCapacity: 40+1 tool side-mount tool changer
