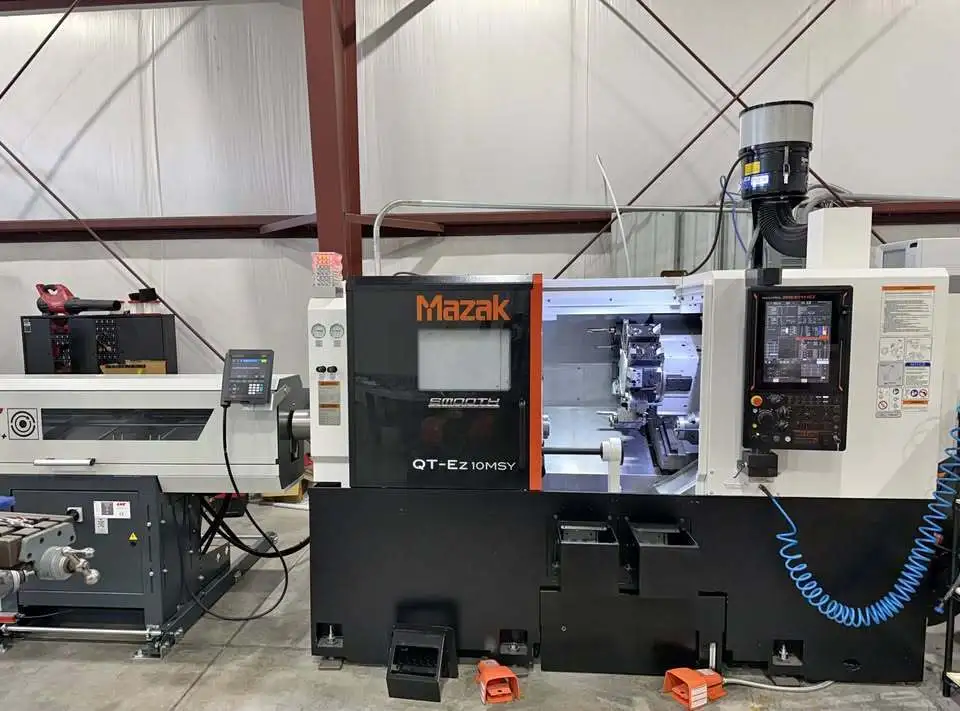

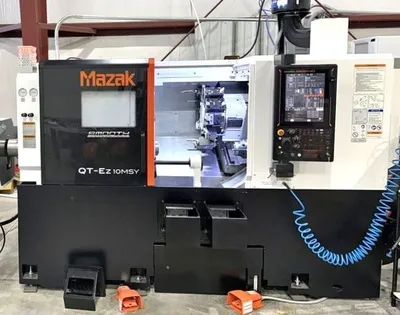

Mazak QT-Ez 10MSY CNC Lathe (2024)
Have one to sell?
ConditionUsed
1 available
Mazak QT-Ez 10MSY CNC Lathe (2024), Y-Axis, Live Tooling, Low Hours, Sub Spindle Barfeeder
(2024) Mazak QT-Ez 10MSY CNC Lathe
Standard Chuck Size (Main/Second) - 10” / 6”
Maximum Swing - 27.4”
Maximum Machining Length ................................... 20.78”
Standard Bar Capacity - 2.5”
Spindle Motor (30min rating) - 20 HP
Spindle Speed - 4200 RPM
Spindle Nose - A2-6

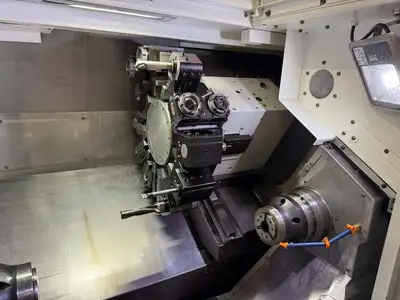

Number of Tools - 12
Mill Spindle Motor - 7.5 HP
Mill Spindle Speed - 6,000 RPM
Travel (X/Y/Z) - 8.5” / 4.00” / 23.75”
Feed Axis Rapid Traverse (X/Y/Z) - 1181 / 394 / 1417 IPM
Second Spindle Speed - 6,000 RPM
Second Spindle Motor (40% ED) - 10 HP
Y-Axis
Live Tooling
Sub Spindle
Barfeeder
Static OD turning Single QTY 4
Static Od Turning Double side QTY 4
Static Boring Bar Holder Single QTY 3
Static Boring Bar Holder Double Side QTY 3
Axial live-tool holder 90-degree Main Spindle QTY 2
Axial live-tool holder 90-degree Main and Sub Spindle QTY 4
Radial live-tool holder straight Main Spindle QTY 4
Radial live-tool holder straight Main and Sub Spindle QTY 2
Static Boring Bar Holder Top and Bottom QTY 1
Plug QTY 4
Groove / Cutoff Holder QTY 1
• Royal QG-65 Accu-Length quick-change collet chuck
• Royal QG-65 Accu-Length quick-change collet chuck Collet Removal Tool
• Royal QG-52 Accu-Length quick-change collet chuck
• Royal QG-52 Accu-Length quick-change collet chuck Collet Removal Tool
• Standard 10 Inch Kitagawa 3 Jaw Chuck
• Standard 6 Inch Kitagawa 3 Jaw Chuck

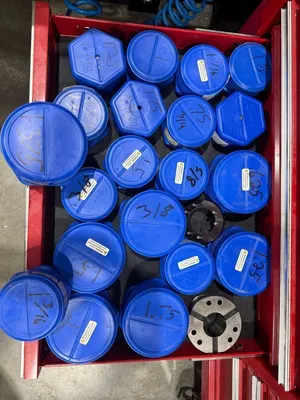

• Entire Drawer of QG-65,52 Quick Change Collets, as show in pictures there are many Sizes
• Automatic parts catcher
• Extra parts-catcher bucket
• LNS Quick Load Servo 80+ bar feeder
• Factory-supplied side-discharge hinged chip conveyor
• Automatic tool eye for tool setting
• Additional LED work light
• Mist-collector Royal FX 300 with After Filter Option
• Expanded 8 MB program memory
• Automatic power-off function
• Operation-complete buzzer
• Three-color signal tower

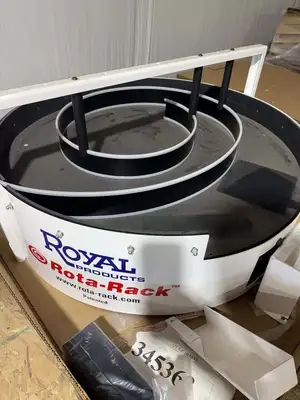

• Heavy Duty Royal Rotorack with Deluxe Control

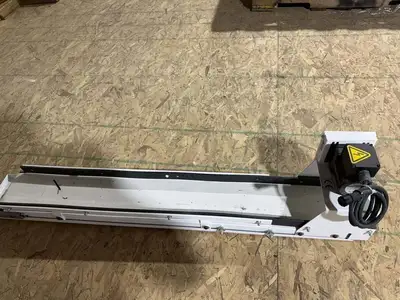

• Heavy Duty Rotorack Conveyor (In the picture it looks bent but it is not its in perfect condition)
• Spindle Liners - JL Berns steel Liners Sizes 2.5, 1, 1.375, 1.75
• Extended Length Bar capacity to 48 Inch Bars
• All Manuals
• NexJen Oil Skimmer As Shown in Pictures
• Royal 3 finger Gripper. I used these to pull longer parts out of the sub and put into parts catcher
• QG-52 Collet part ejector
• Necessary wrenches for live tooling
Mazak QT-Ez 10MSY CNC Lathe (2024), Y-Axis, Live Tooling, Low Hours, Sub Spindle Barfeeder
Imperial
| size | 10" / 6" |
| Swing | 27.4" |
| Machining Length | 20.78" |
| Chuck Size | 10" |
| Bar Capacity | 2.5" |
| Power | 20 hp |
| Max RPM | 4,200 RPM |
| Live Tooling | Yes |
| Sub Spindle | Yes |
| Weight | 12,125 Lbs |
(2024) Mazak QT-Ez 10MSY CNC Lathe
Standard Chuck Size (Main/Second) - 10” / 6”
Maximum Swing - 27.4”
Maximum Machining Length ................................... 20.78”
Standard Bar Capacity - 2.5”
Spindle Motor (30min rating) - 20 HP
Spindle Speed - 4200 RPM
Spindle Nose - A2-6
Number of Tools - 12
Mill Spindle Motor - 7.5 HP
Mill Spindle Speed - 6,000 RPM
Travel (X/Y/Z) - 8.5” / 4.00” / 23.75”
Feed Axis Rapid Traverse (X/Y/Z) - 1181 / 394 / 1417 IPM
Second Spindle Speed - 6,000 RPM
Second Spindle Motor (40% ED) - 10 HP
Y-Axis
Live Tooling
Sub Spindle
Barfeeder
Static OD turning Single QTY 4
Static Od Turning Double side QTY 4
Static Boring Bar Holder Single QTY 3
Static Boring Bar Holder Double Side QTY 3
Axial live-tool holder 90-degree Main Spindle QTY 2
Axial live-tool holder 90-degree Main and Sub Spindle QTY 4
Radial live-tool holder straight Main Spindle QTY 4
Radial live-tool holder straight Main and Sub Spindle QTY 2
Static Boring Bar Holder Top and Bottom QTY 1
Plug QTY 4
Groove / Cutoff Holder QTY 1
• Royal QG-65 Accu-Length quick-change collet chuck
• Royal QG-65 Accu-Length quick-change collet chuck Collet Removal Tool
• Royal QG-52 Accu-Length quick-change collet chuck
• Royal QG-52 Accu-Length quick-change collet chuck Collet Removal Tool
• Standard 10 Inch Kitagawa 3 Jaw Chuck
• Standard 6 Inch Kitagawa 3 Jaw Chuck
• Entire Drawer of QG-65,52 Quick Change Collets, as show in pictures there are many Sizes
• Automatic parts catcher
• Extra parts-catcher bucket
• LNS Quick Load Servo 80+ bar feeder
• Factory-supplied side-discharge hinged chip conveyor
• Automatic tool eye for tool setting
• Additional LED work light
• Mist-collector Royal FX 300 with After Filter Option
• Expanded 8 MB program memory
• Automatic power-off function
• Operation-complete buzzer
• Three-color signal tower
• Heavy Duty Royal Rotorack with Deluxe Control
• Heavy Duty Rotorack Conveyor (In the picture it looks bent but it is not its in perfect condition)
• Spindle Liners - JL Berns steel Liners Sizes 2.5, 1, 1.375, 1.75
• Extended Length Bar capacity to 48 Inch Bars
• All Manuals
• NexJen Oil Skimmer As Shown in Pictures
• Royal 3 finger Gripper. I used these to pull longer parts out of the sub and put into parts catcher
• QG-52 Collet part ejector
• Necessary wrenches for live tooling
