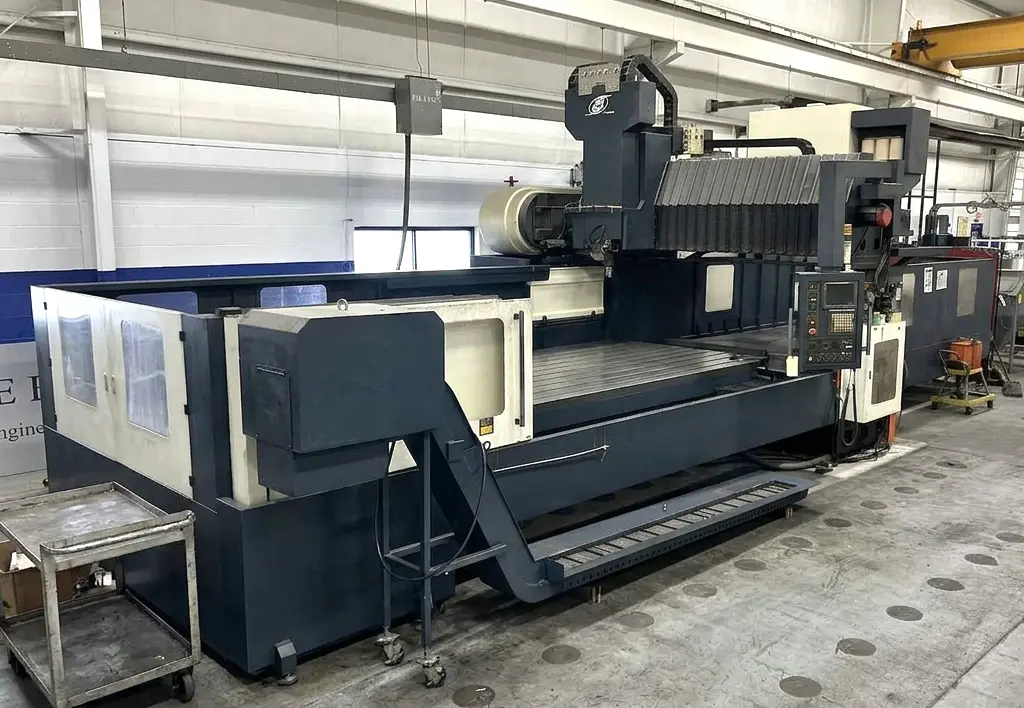

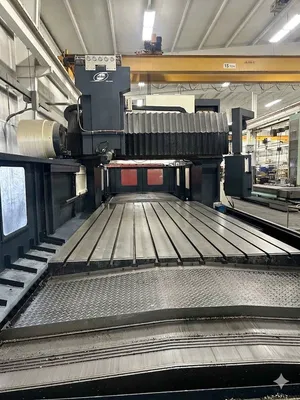

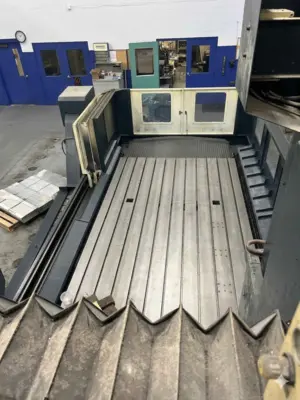

Johnford DMC-4100PH High Speed Gantry Type Bridgemill (2012)
Have one to sell?
ConditionUsed
1 available
Johnford DMC-4100PH High Speed Gantry Type Bridgemill (2012)
Johnford DMC-4100PH High Speed Gantry Type Bridgemill (2012)
Travel Specifications
• X-Axis Travel: 161.4 inches
• Y-Axis Travel: 90.5 inches
• Z-Axis Travel: 31.5
• Distance Between Columns: 95.0 to 110.2 inches
Spindle Specifications
• Spindle Taper: HSK-100A
• Spindle Speed: Standard 15,000 RPM
Table & Capacity
• Table Load Capacity: 22,000 lbs.
• Table Dimensions: 165.3" x 80.7"
Tool Changer
• Automatic Tool Changer (ATC): Standard 40-tool capacity
Fanuc CNC Control
Johnford DMC-4100PH High Speed Gantry Type Bridgemill (2012)
Imperial
| X | 161" |
| Y | 90" |
| Z | 31.5" |
| Power | 33 hp |
| RPM | 15,000 RPM |
| # ATC | 40 |
| Taper | HSK |
| Table-W | 80" |
| Table-L | 165.3" |
Johnford DMC-4100PH High Speed Gantry Type Bridgemill (2012)
Travel Specifications
• X-Axis Travel: 161.4 inches
• Y-Axis Travel: 90.5 inches
• Z-Axis Travel: 31.5
• Distance Between Columns: 95.0 to 110.2 inches
Spindle Specifications
• Spindle Taper: HSK-100A
• Spindle Speed: Standard 15,000 RPM
Table & Capacity
• Table Load Capacity: 22,000 lbs.
• Table Dimensions: 165.3" x 80.7"
Tool Changer
• Automatic Tool Changer (ATC): Standard 40-tool capacity
Fanuc CNC Control
