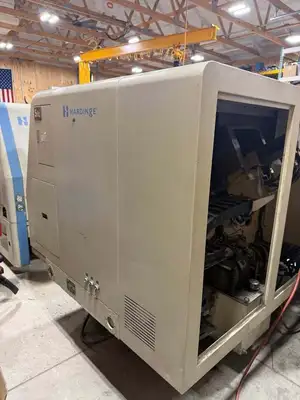

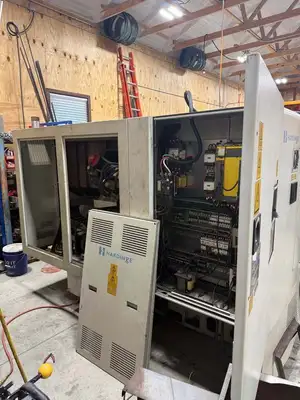

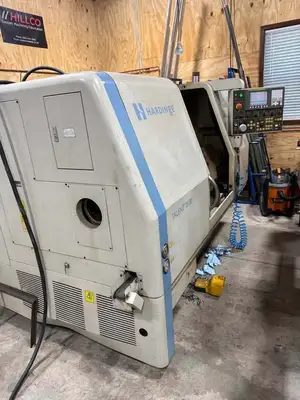

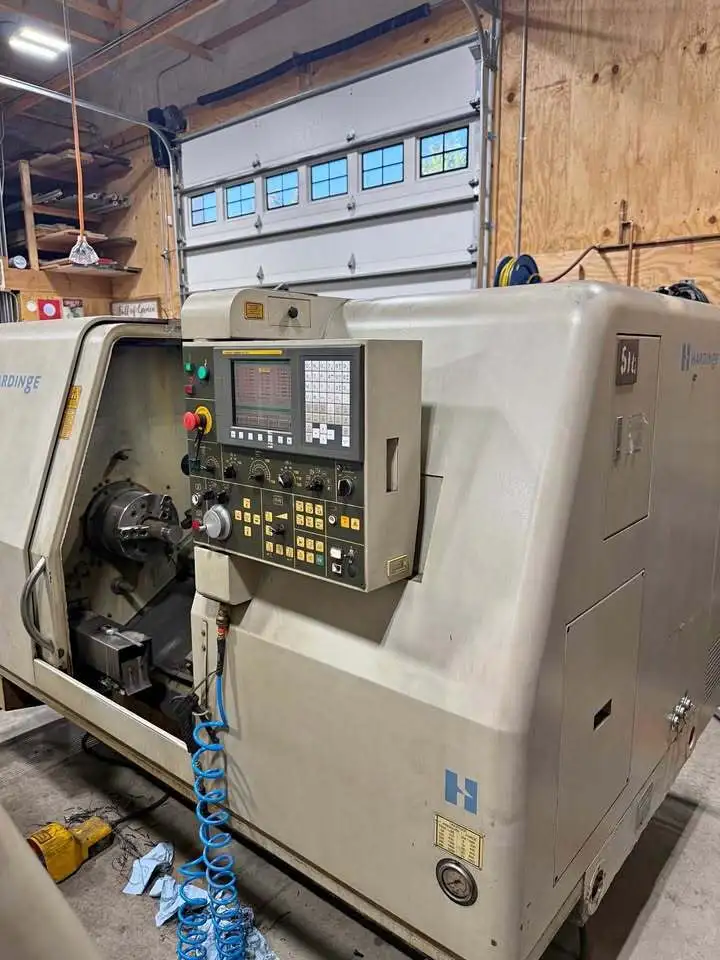

Hardinge Talent 10/78 CNC Lathe

Hardinge Talent 10/78 CNC Lathe

Max Swing Over Bed: 23.42 inches (595 mm)
Max Turning Diameter: 14.01 inches (356 mm)
Max Turning Length: 23.32 inches (558 mm)
Bar Capacity: 78 mm (3.07 inches)
Chuck Size: 10 inches
Spindle Specifications
Spindle Nose: A2-8Spindle Bore: 3.07 inches (78 mm)
Spindle Speed Range: 60 to 3,500 RPM
Spindle Horsepower: 25 HP (18.5 kW)
Travel & Feedrates
X-Axis Travel (Cross Travel): 10.7 inches (271.5 mm)
Z-Axis Travel (Longitudinal Travel): 23.62 inches (600 mm)
X/Z Axis Rapid Traverse Rate: 1,181 IPM (24-30 m/min)
Turret & Tooling
Number of Turret Positions: 12 stations
Tooling System: VDI-40 / BMT live tooling compatible (optional live tooling max speed up to 4,000–5,000+ RPM depending on configuration)
Physical Dimensions & Weight
Approximate Dimensions: 110" x 74" x 71" (length x width x height)Approximate
Weight: 11,500 lbs (approx. 5,000 kg)
