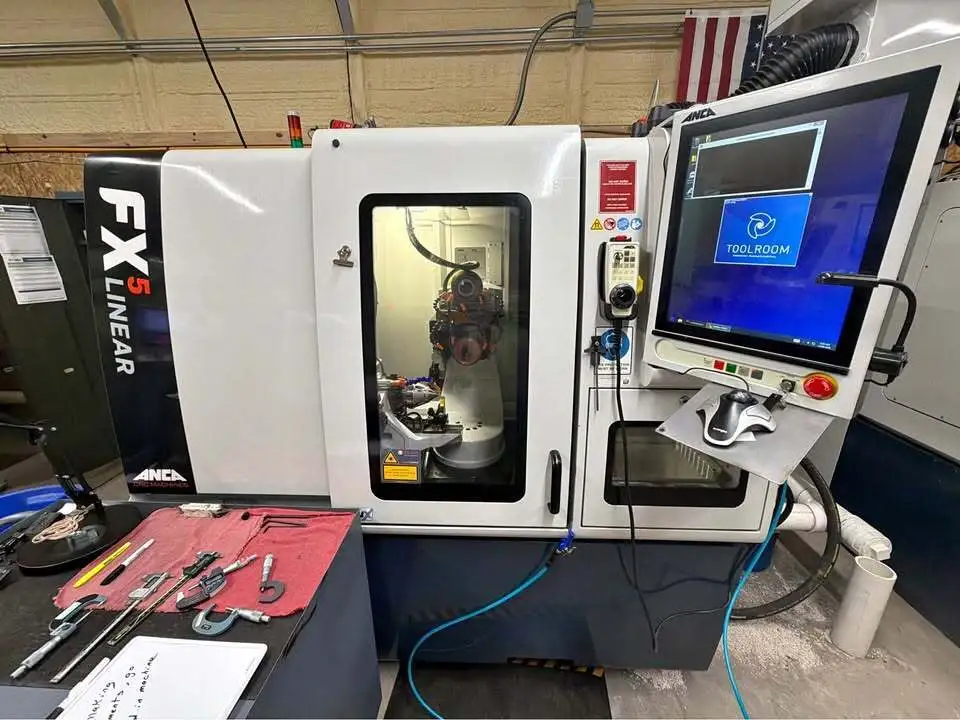

Anca FX5 Linear Tool & Cutter Grinder (2019)

Anca FX5 Linear Tool & Cutter Grinder (2019)

Machine Capacity & Axis Travels

Maximum Tool Shank Diameter: Productive up to Ø 16 mm (1/2")
Maximum Tool Length: 200 mm (8")
X-Axis Travel: 550 mm (21.6")
Y-Axis Travel: 260 mm (10.2")
Z-Axis Travel: 220 mm (8.7")
A-Axis Swivel / C-Axis Index: 360° / 230°

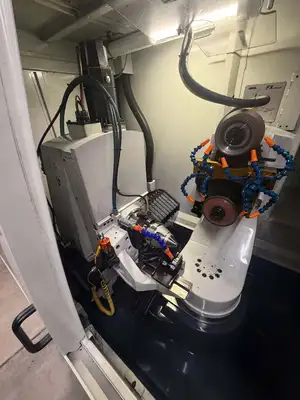

Spindle & Wheel Packs
High-Powered Spindle Option: 19 kW (25.4 HP) peak (allows for single-pass fluting on 12mm tools)
Wheel Changer: Automatic 2-station wheel pack changer
Maximum Wheel Diameter: Ø 203 mm (8")
Spindle Taper: HSK40F

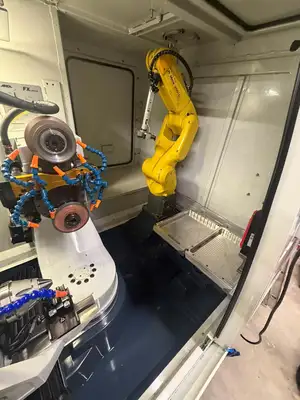

Automation & Robotic Loading
Loader New Fanuc loader (2025)
Max Tool Capacity (with loader):340 tools for Ø 3 mm shanks200 tools for Ø 6 mm shanks80 tools for Ø 12 mm shanks
CNC Controller & Drive Hardware

CNC System: ANCA AMC5 G2 High-Performance CNC
Drive System: LinX Cylindrical Linear Motors (X and Y axes)
Operating OS: Windows 10 architecture with high-speed SSD
User Interface: 19" ANCA Touchscreen (CNC Pad) with hand-held pendant
Physical Dimensions
Width: 1930 mm (76")Depth: 1800 mm (70")Height: 1810 mm (71")
