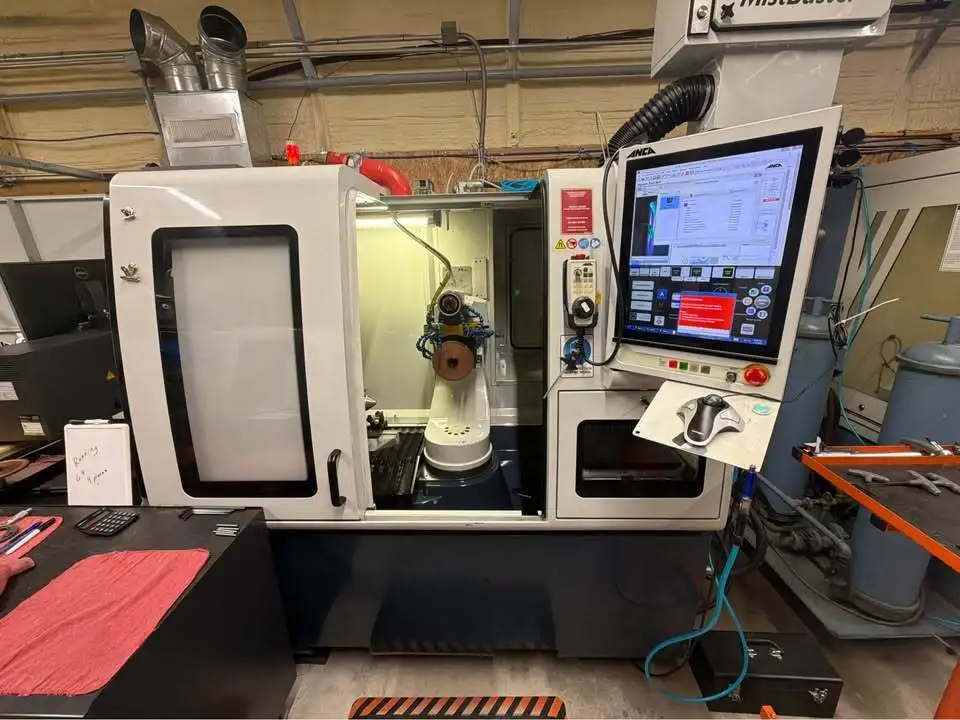

Anca FX5 Linear Tool & Cutter Grinder (2019)
Have one to sell?
ConditionUsed
1 available
Anca FX7 Linear Tool & Cutter Grinder (2019), 8-Axis, Fanuc Robot Loader, Tool Pallets, Misc. Tooling,
Anca FX5 Linear Tool & Cutter Grinder (2019)
Machine Capacity & Axis Travels
Maximum Tool Shank Diameter: Productive up to Ø 12 mm (1/2")
Maximum Tool Length: 200 mm (8")
X-Axis Travel: 550 mm (21.6")
Y-Axis Travel: 260 mm (10.2")
Z-Axis Travel: 220 mm (8.7")
A-Axis Swivel / C-Axis Index: 360° / 230°
Spindle & Wheel Packs
Standard Spindle Power: 12 kW (16 HP) peak
High-Powered Spindle Option: 19 kW (25.4 HP) peak (allows for single-pass fluting on 12mm tools)
Wheel Changer: Automatic 2-station wheel pack changer
Maximum Wheel Diameter: Ø 203 mm (8")
Spindle Taper: HSK40F
Automation & Robotic Loading

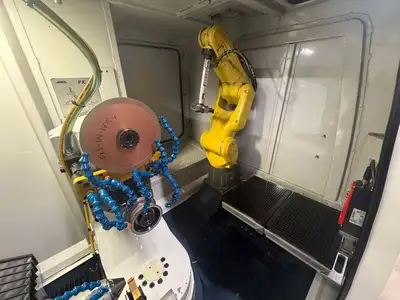

Loader Fanuc loader
Max Tool Capacity (with loader):340 tools for Ø 3 mm shanks200 tools for Ø 6 mm shanks80 tools for Ø 12 mm shanks
CNC Controller & Drive Hardware
CNC System: ANCA AMC5 G2 High-Performance CNC
Drive System: LinX Cylindrical Linear Motors (X and Y axes)
Operating OS: Windows 10 architecture with high-speed SSD

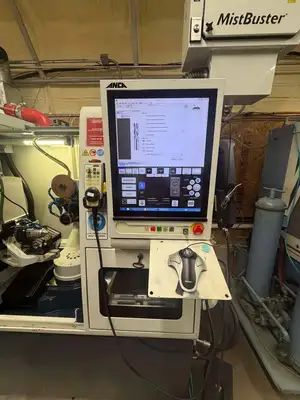

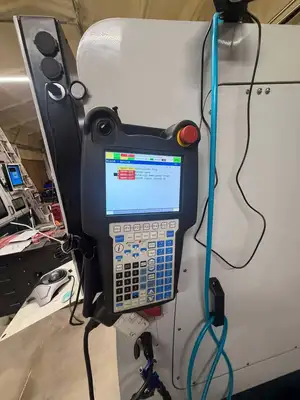

User Interface: 19" ANCA Touchscreen (CNC Pad) with hand-held pendant
Physical Dimensions
Width: 1930 mm (76")Depth: 1800 mm (70")Height: 1810 mm (71")
B32/45
Fanuc loader
19kW Spindle
Hydraulic steadyrest and shoes
Wheel probe
Whitestick
Fire system
Mistbuster
Anca FX7 Linear Tool & Cutter Grinder (2019), 8-Axis, Fanuc Robot Loader, Tool Pallets, Misc. Tooling,
Imperial
| # Axis | 5 |
| Swing | 7.8" |
| Grinding Wheel Dia. | 8" |
| Power | 12.7 hp |
| Max RPM | 10,000 RPM |
| Dimensions | W 76" x D 70" x Ht. 71" |
| Weight | 10000 |
Anca FX5 Linear Tool & Cutter Grinder (2019)
Machine Capacity & Axis Travels
Maximum Tool Shank Diameter: Productive up to Ø 12 mm (1/2")
Maximum Tool Length: 200 mm (8")
X-Axis Travel: 550 mm (21.6")
Y-Axis Travel: 260 mm (10.2")
Z-Axis Travel: 220 mm (8.7")
A-Axis Swivel / C-Axis Index: 360° / 230°
Spindle & Wheel Packs
Standard Spindle Power: 12 kW (16 HP) peak
High-Powered Spindle Option: 19 kW (25.4 HP) peak (allows for single-pass fluting on 12mm tools)
Wheel Changer: Automatic 2-station wheel pack changer
Maximum Wheel Diameter: Ø 203 mm (8")
Spindle Taper: HSK40F
Automation & Robotic Loading
Loader Fanuc loader
Max Tool Capacity (with loader):340 tools for Ø 3 mm shanks200 tools for Ø 6 mm shanks80 tools for Ø 12 mm shanks
CNC Controller & Drive Hardware
CNC System: ANCA AMC5 G2 High-Performance CNC
Drive System: LinX Cylindrical Linear Motors (X and Y axes)
Operating OS: Windows 10 architecture with high-speed SSD
User Interface: 19" ANCA Touchscreen (CNC Pad) with hand-held pendant
Physical Dimensions
Width: 1930 mm (76")Depth: 1800 mm (70")Height: 1810 mm (71")
B32/45
Fanuc loader
19kW Spindle
Hydraulic steadyrest and shoes
Wheel probe
Whitestick
Fire system
Mistbuster
