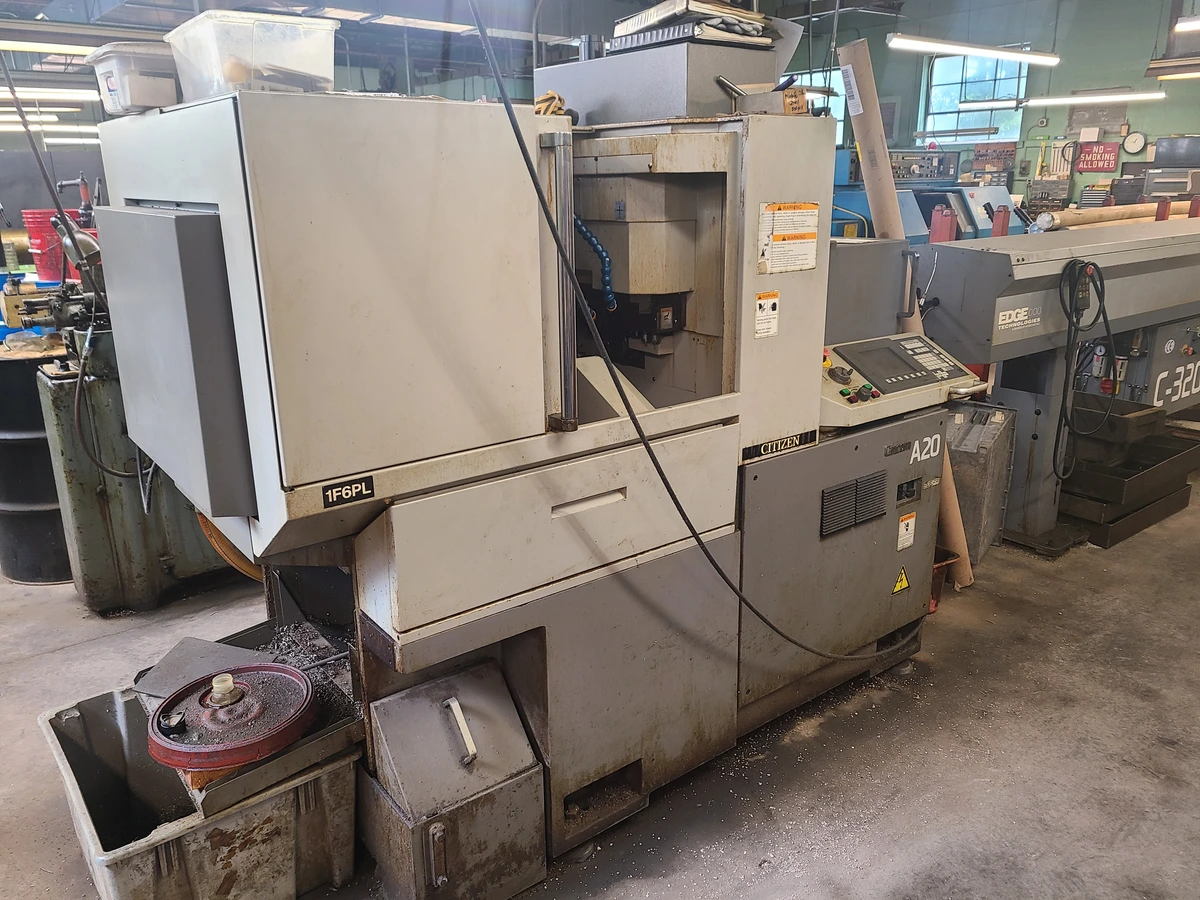

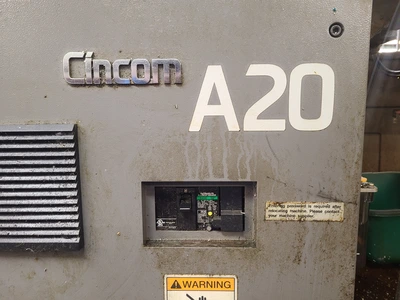

Citizen A20VI CNC Swiss Type Lathe (2009)

Citizen A20VI CNC Swiss Type Lathe (2009)

Capacity & Travel

Maximum Machining Diameter: 20 mm (0.787") standard
Maximum Machining Length: 200 mm (7.87")
Guide-Bush-Less Mode Machining Length: 2.5D (Max 55 mm)
Max Protrusion Length for Back Workpiece: 50 mm (1.96")
Main Spindle
Max Speed: Up to 10,000 RPM
Max Drilling Diameter: 10 mm (0.393")
Max Tapping Diameter: M8 (tap/die)
C-Axis Indexing Precision: 0.001°
Main Spindle Motor: 2.2 / 3.7 kW
Counter-Spindle (Subspindle)Max Bar Diameter: 20 mm
Max Speed: 8,000 RPMC-Axis Indexing Precision: 0.001°
Back Spindle Motor: 1.1 / 1.5 kW
Tooling CapacityTotal Tool Positions: 21 standard tools
Turning Tools on Gang Post: 5 static stations
Rotary/Live Tools for Cross Machining: 4 positions (up to 6,000 or 8,000 RPM live tool speed depending on model sub-tier)
Front-End Working Tools/Drilling: 4 stations
Back-End Working Tools/Drilling: 8 stations
Feed Rates & Utilities
Rapid Feed Rate (X1 axis): 18 m/min
Rapid Feed Rate (All other axes): 32 m/min
Rated Power Consumption: 7.1 kVA
Machine Weight: Approx. 4,851 lbs to 5,600 lb
