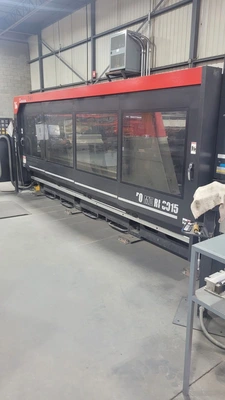

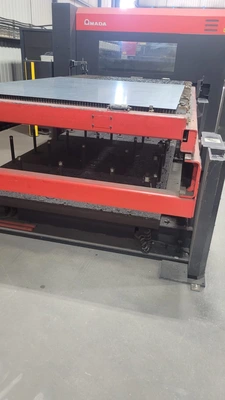

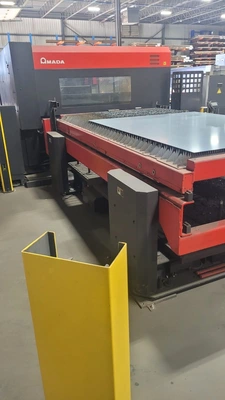

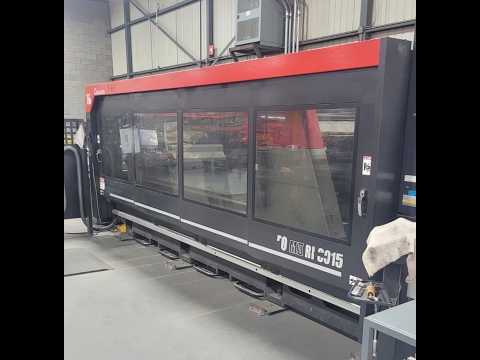

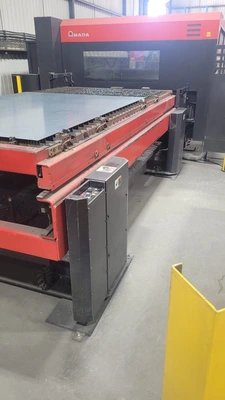

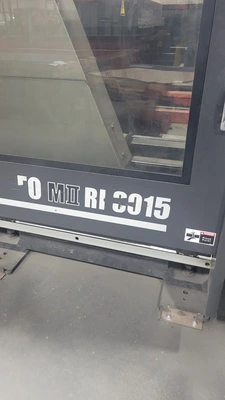

Amada FO MII RI 3015 4000 Watt CNC Laser (2013)
Have one to sell?
ConditionUsed
1 available
Amada FO MII RI 3015 4000 Watt CNC Laser (2013) With Rotary Index Unit For Tube Cutting
Amada FO MII RI 3015 4000 Watt CNC Laser (2013)
Motion and Working Range
X-Axis Travel (Movement Range): 3070 mm (120.87")
Y-Axis Travel (Movement Range): 1550 mm (61.02")
Z-Axis Travel (Movement Range): 200 mm (7.87")
Drive Method: X-axis uses a Rack & Pinion system; Y and Z axes utilize Ball Screws.
Rapid Feed Rate (X / Y / Z): 80 / 80 / 60 meters per minute (3,150 inches per minute for X/Y).Positioning Repeatability: ±0.01 mm (±0.0002").
Laser Source and Performance
Laser Oscillator: Fanuc AF4000i-B / AF4000i-C CO2 Laser.
Laser Power: 4,000 Watts.
Laser Wavelength: 10.6 µm.
Maximum Flat Sheet Thickness Capacities:
Mild Steel (Oxygen assist): 22 mm (7/8")
Stainless Steel (High-pressure Nitrogen): 12 mm to 15 mm (1/2")
Aluminum: 10 mm (3/8")

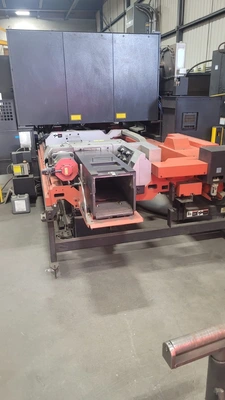

Rotary Index (Tube Laser)
Specifications
The self-centering chuck is designed to support tubing near the cutting zone to eliminate vibrations and maintain strict tolerances.
Round Tubing Diameter: Ø 19 mm – 220 mm (0.75" – 8.66").
Square Tubing Size: 19 mm – 150 mm (0.75" – 6").
Rectangle Tubing Size: Maximum diagonal envelope up to 150 mm (Typical configuration maxes out around 3.54" x 3.54").C-Channel Tubing: 19 mm – 150 mm (8.66" max diagonal).Angle Iron/Sections: 19 mm – 90 mm.
Maximum Pipe Length: 6,000 mm (236.2" / 19.6 ft) supported via a manual/automatic repositioning routine.
Maximum Material Weight (Tube): 200 kg (441 lbs).
Rotation Speed: 100 RPM.
CNC Controller and Control Features
CNC Control Unit: Amada AMNC-3i / AMNC-PC multimedia network control.
Interface Display: 21.5" touch screen running on a Windows environment.
Assist Gas System: Automatic gas selection and NC gas pressure control
Total Hours 23,000

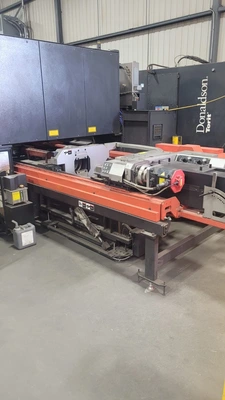

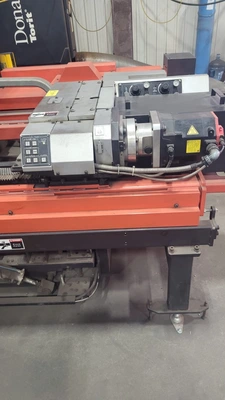

Rotary Index Unit For Tube Cutting Tube Attachment
Amada FO MII RI 3015 4000 Watt CNC Laser (2013) With Rotary Index Unit For Tube Cutting
Imperial
| size | 4000 WATT |
| Sheet-W | 60" |
| Sheet-L | 120" |
| Wattage | 4000 w |
| IPM | 3150 |
| X | 120" |
| Y | 61" |
| Z | 7" |
Amada FO MII RI 3015 4000 Watt CNC Laser (2013)
Motion and Working Range
X-Axis Travel (Movement Range): 3070 mm (120.87")
Y-Axis Travel (Movement Range): 1550 mm (61.02")
Z-Axis Travel (Movement Range): 200 mm (7.87")
Drive Method: X-axis uses a Rack & Pinion system; Y and Z axes utilize Ball Screws.
Rapid Feed Rate (X / Y / Z): 80 / 80 / 60 meters per minute (3,150 inches per minute for X/Y).Positioning Repeatability: ±0.01 mm (±0.0002").
Laser Source and Performance
Laser Oscillator: Fanuc AF4000i-B / AF4000i-C CO2 Laser.
Laser Power: 4,000 Watts.
Laser Wavelength: 10.6 µm.
Maximum Flat Sheet Thickness Capacities:
Mild Steel (Oxygen assist): 22 mm (7/8")
Stainless Steel (High-pressure Nitrogen): 12 mm to 15 mm (1/2")
Aluminum: 10 mm (3/8")
Rotary Index (Tube Laser)
Specifications
The self-centering chuck is designed to support tubing near the cutting zone to eliminate vibrations and maintain strict tolerances.
Round Tubing Diameter: Ø 19 mm – 220 mm (0.75" – 8.66").
Square Tubing Size: 19 mm – 150 mm (0.75" – 6").
Rectangle Tubing Size: Maximum diagonal envelope up to 150 mm (Typical configuration maxes out around 3.54" x 3.54").C-Channel Tubing: 19 mm – 150 mm (8.66" max diagonal).Angle Iron/Sections: 19 mm – 90 mm.
Maximum Pipe Length: 6,000 mm (236.2" / 19.6 ft) supported via a manual/automatic repositioning routine.
Maximum Material Weight (Tube): 200 kg (441 lbs).
Rotation Speed: 100 RPM.
CNC Controller and Control Features
CNC Control Unit: Amada AMNC-3i / AMNC-PC multimedia network control.
Interface Display: 21.5" touch screen running on a Windows environment.
Assist Gas System: Automatic gas selection and NC gas pressure control
Total Hours 23,000
Rotary Index Unit For Tube Cutting Tube Attachment
