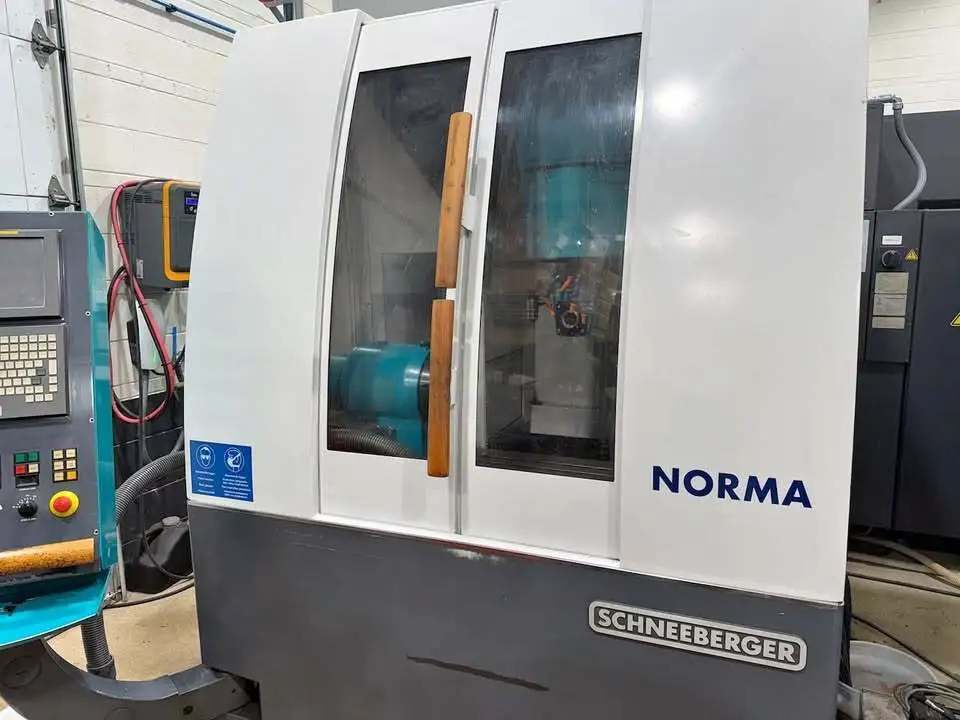

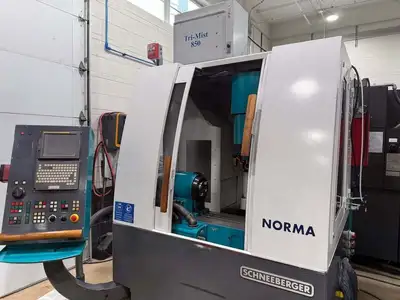

Schneeberger Norma CFG 5 Axis CNC Tool & Cutter Grinder

Schneeberger Norma CFG Tool & Cutter Grinder

Axis Travels & Working Range
X-Axis (Longitudinal): 380 mm (15.7")
Y-Axis (Cross): 280 mm (11")
Z-Axis (Vertical): 280 mm (11")
A-Axis (Grinding Head Rotation): 360°

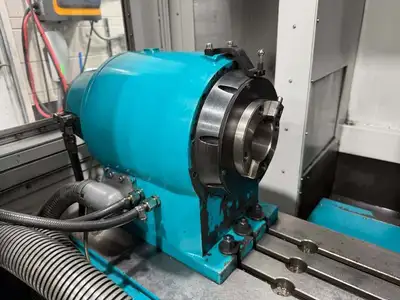

C-Axis (Workhead / Tool Rotation): 340° rotation (Resolution: 0.001°)
Center Height: 210 mm
Table Dimensions: 950 mm length x 310 mm width
Grinding Spindle & Wheel Capabilities
Spindle Type: Forced ventilation double-ended spindle
Spindle Power: 7.5 kW (~10 HP)
Spindle Speed: 0 to 9,000 RPM (stepless)Tool Holder Interface: HSK 50Wheel Capacity: Holds up to 6 grinding wheels simultaneously
Grinding Wheel Diameter: 50 mm to 200 mm (Up to approx. 10"
