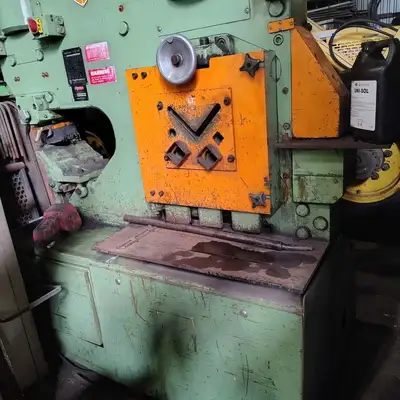

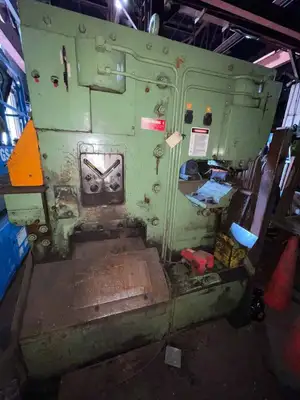

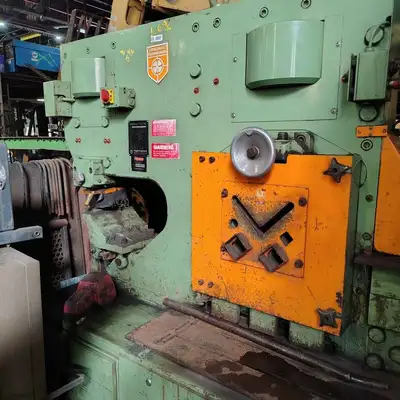

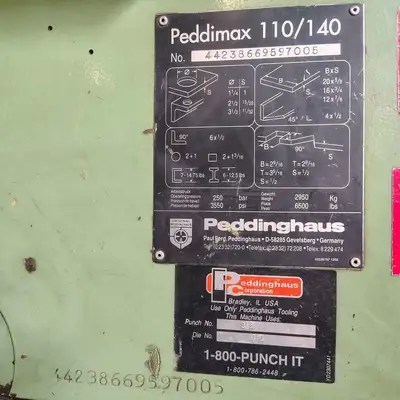

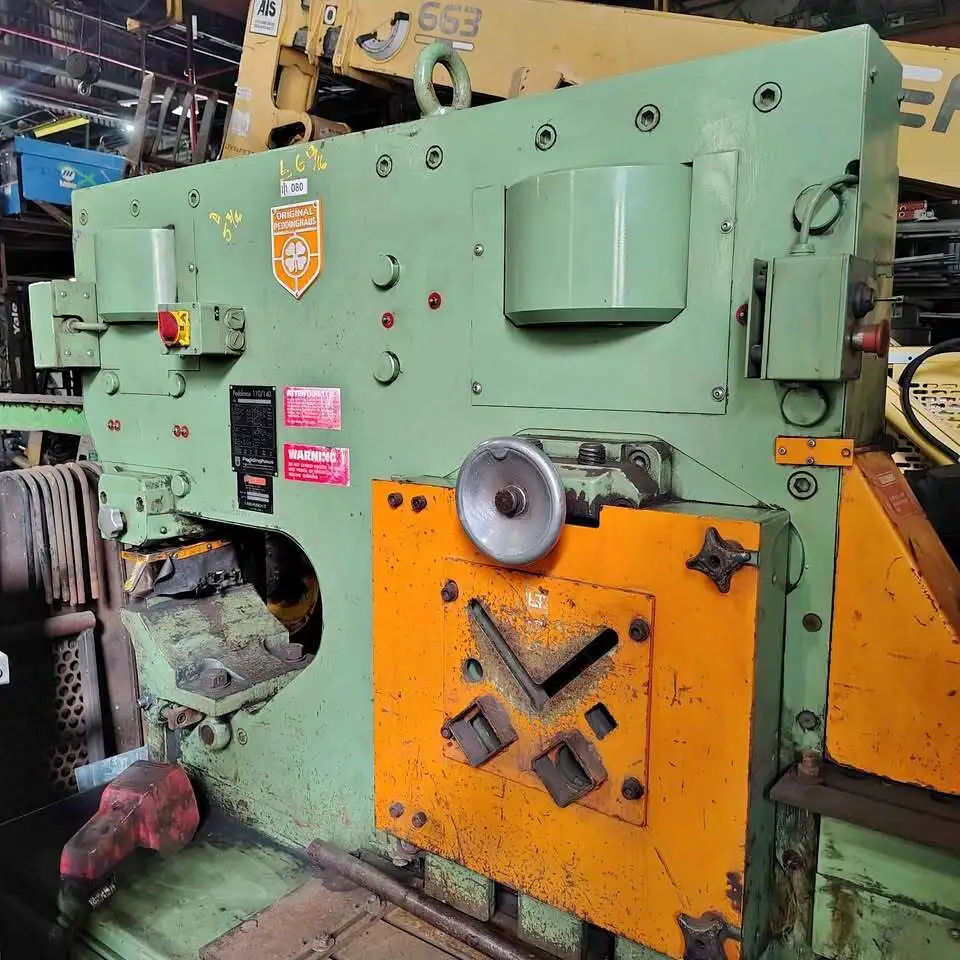

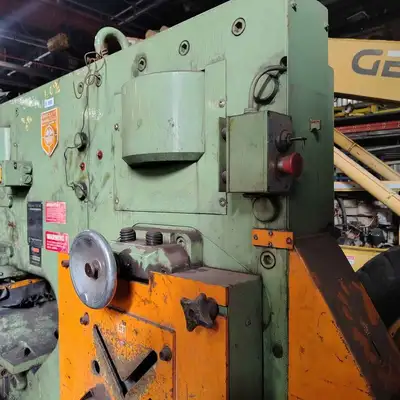

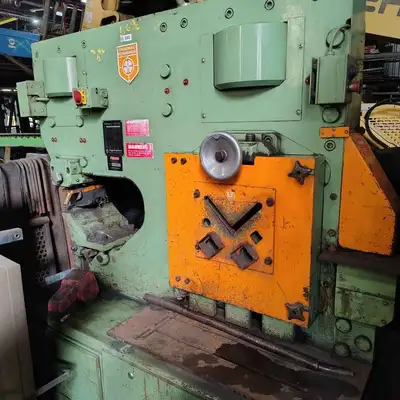

Peddinghaus 110/140 110 Ton Hydraulic Ironworker

Peddinghaus 110/140 110 Ton Hydraulic Ironworker

Punch Tonnage: 110 Ton
Shear Tonnage: 140 Ton
Punch Stroke: 3/8″ – 2″
Punch Capacity: 1.25″ x 1″
Punch Throat Depth: 20″
Punch Strokes Per Minute: 22
Flat Bar Shear Capacity: 20″ x 5/8″; 16″ x 3/4″; 12″ x 1″
Flat bar shear length: 20-1/4″
Flat bar shear working height: 28-3/8″
Angle shear capacity, 90 degree: 6″ x 6 ” x 1/2″
Angle shear capacity, 45 degree: 4″ x 4″ x 1/2″
Round bar capacity: 2″ and 1″
Square bar capacity: 2″ and 1-3/16″
Notcher capacity, plate: 1/2″ square, 1/2″ triangular
Notcher capacity, angle: 3″ x 3/8″ square, 3″ x 3/8″ triangular
Notch width: 2-9/16″ square
Notch depth: 3-5/16″ square, 2-9/16″ triangular
Notch station working height: 45-1/2″ to center of blades
I-beams: 6″ H x 12.5 lbs
Flanges: 7″ H x 14.75 lbs
Oil capacity: 28 gallons
Motor: 10 HP (7.5 KW)
Max Amperage: 30.8 / 15.4
