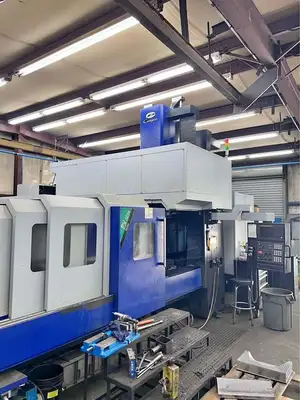

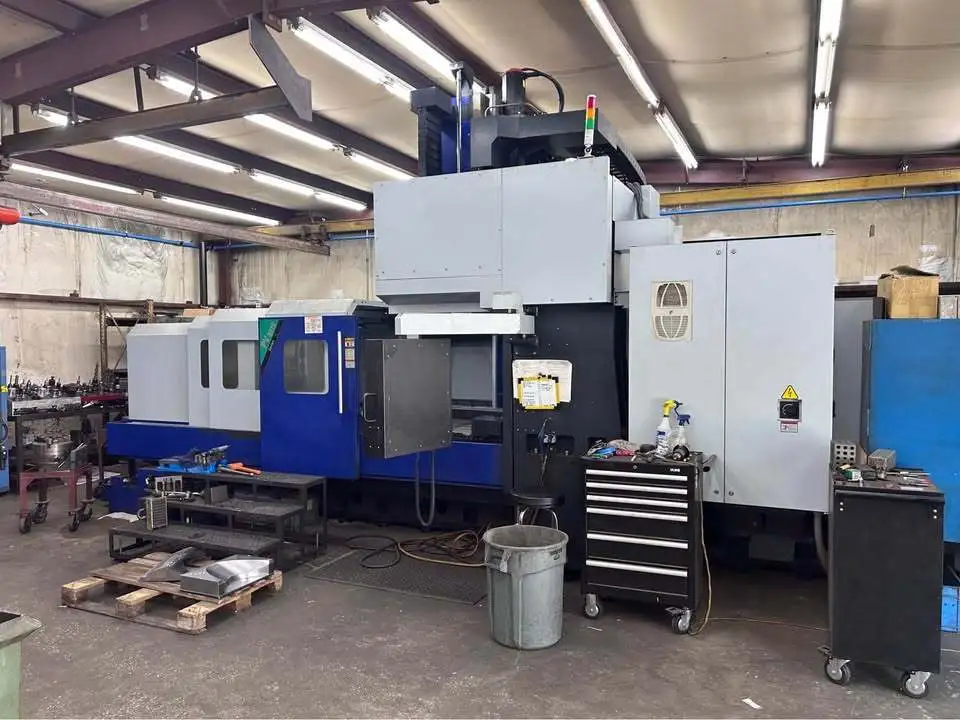

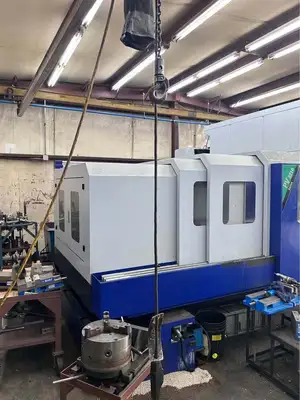

Campro PV-3216 Bridge Type Gantry Mill Machining Center (2022)

Campro PV-3216 Bridge Type Gantry Mill Machining Center (2022)

X-Axis Travel: 126 inches (3,200 mm)
Y-Axis Travel: 63 inches (1,600 mm
)Z-Axis Travel: 29.5 to 30 inches (750 to 762 mm)
Spindle Power: 35 hp (standard Japanese-made gear-head spindle)
Spindle Speed: 6,000 rpm (standard gear-head); 10,000 rpm built-in motor spindle available as an option
Spindle Taper: Cat 50 / BT 50 (Big Plus compatible)
Automatic Tool Changer (ATC): 32-tool chain type standard (up to 40 tools depending on configuration)
Guideways: Heavy-duty roller type linear guideways on the X- and Y-axes; box guideways on the Z-axis
Chip Removal: Dual built-in casting chip screw removal system with a chain-type chip conveyor
