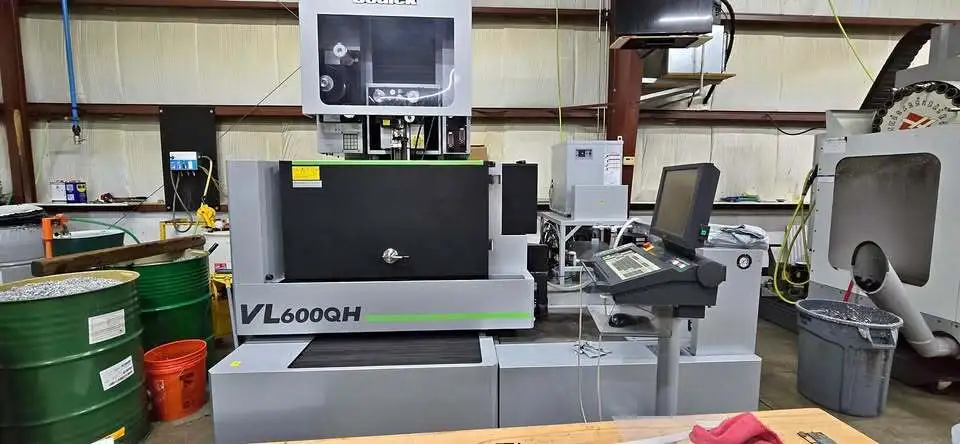

Sodick VL600QH CNC Wire Type EDM Electrical Discharge Machine (2023)

Sodick VL600QH CNC Wire Type EDM Electrical Discharge Machine (2023)

Axis Travels & Capacity
X-Axis Travel: 23.62” (600 mm)
Y-Axis Travel: 15.75” (400 mm)
Z-Axis Travel (High Column): 19.69” (500 mm)
U, V-Axis Travel: 3.54” x 3.54” (90 x 90 mm)
Work Tank Dimensions: 40.94” x 30.71” (1,040 x 780 mm)
Maximum Workpiece Weight: 1,874 lbs (850 kg)
Key Specifications & Features
Drive System: Rigid Linear Motor Drives (X, Y, U, V axes) with absolute linear scales providing backlash-free, vibration-free motion.
Control Unit: LN2W Control with a 15.1” LCD touch screen, Windows OS, USB and LAN connectivity, and Heart NC on-board programming software.
Wire Threading: Fixed Jet High-Speed Automatic Wire Threader (AWT) with optimized pop-up search function.
Accuracy Guarantee: Backed by Sodick's 10-year positioning accuracy guarantee.
Machine Dimensions: Approx. 118.89” x 102.56” x 100”Machine Weight: Approx. 7,275 lbs (3,300 kg)
