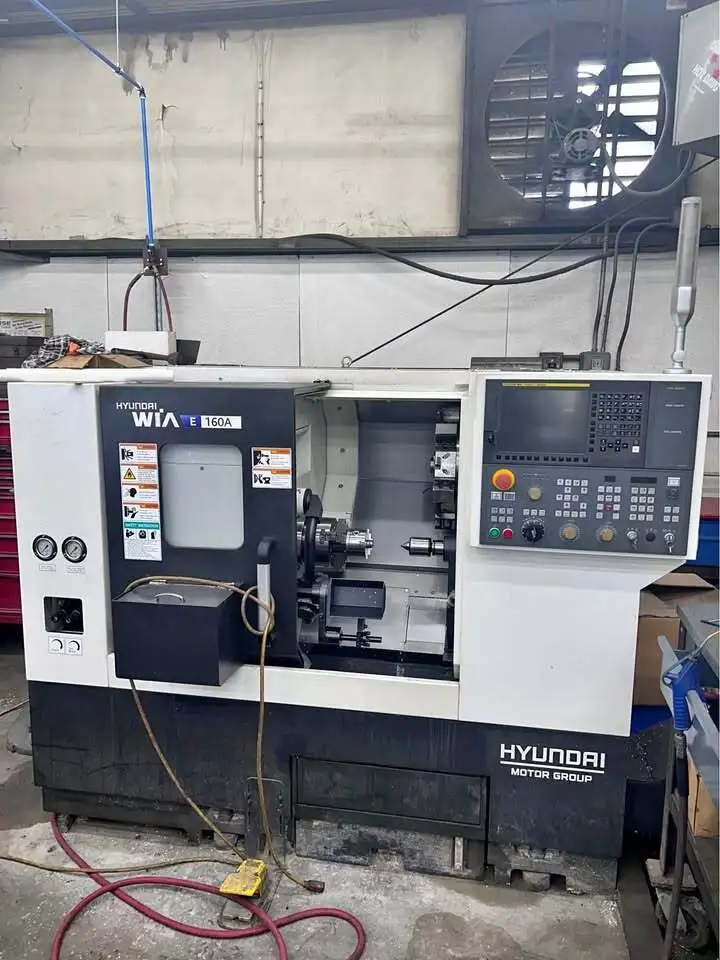

Hyundai WIA E160A CNC Lathe (2022)
Have one to sell?
ConditionUsed
1 available
Hyundai WIA E160A CNC Lathe (2022)
Hyundai WIA E160A CNC Lathe (2022)
Maximum Turning Diameter: 11 inches (280 mm)
Maximum Turning Length: 11.8 inches (300 mm)
Chuck Size: 6 inches
Bar Capacity: ~1.78 to 1.8 inches (45 mm)
X-Axis Travel: 6.5 inches (165 mm)
Z-Axis Travel: 13 inches (330 mm)
Spindle Speed: 6,000 RPM
Spindle Motor Output: 10 / 15 HP
Rapid Traverse Rate (X/Z Axes): 1,181 inches per minute (IPM)
Turret Capacity: 12 positions
Hyundai WIA E160A CNC Lathe (2022)
Imperial
| size | 6" Chuck |
| Swing | 18.9" |
| Machining Length | 11.81" |
| # Axis | 2 |
| Chuck Size | 6" |
| Bar Capacity | 1.77" |
| Power | 14.8 hp |
| Max RPM | 6,000 RPM |
| Tailstock | Yes |
Hyundai WIA E160A CNC Lathe (2022)
Maximum Turning Diameter: 11 inches (280 mm)
Maximum Turning Length: 11.8 inches (300 mm)
Chuck Size: 6 inches
Bar Capacity: ~1.78 to 1.8 inches (45 mm)
X-Axis Travel: 6.5 inches (165 mm)
Z-Axis Travel: 13 inches (330 mm)
Spindle Speed: 6,000 RPM
Spindle Motor Output: 10 / 15 HP
Rapid Traverse Rate (X/Z Axes): 1,181 inches per minute (IPM)
Turret Capacity: 12 positions
