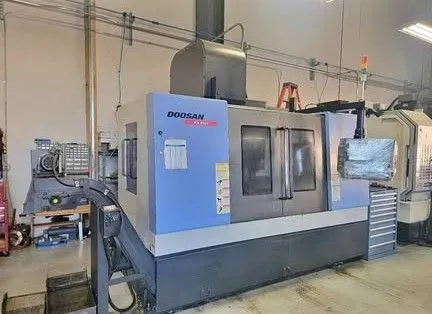

DOOSAN MV 4020 Vertical Machining Center (2009)

X‑axis travel: 40.1–40.2 in (1,021 mm)
Y‑axis travel: 20.1 in (510.5 mm)
Z‑axis travel: 24.6 in (624.8 mm)
Table size: 47.2 in × 19.7 in (1,200 × 500 mm)
Spindle nose to table: 5.9–30.5 in (150–775 mm)
Max table load: ~1,760 lb (800 kg)
Spindle & Motion
Spindle taper: CAT‑40
Spindle speed: 60–8,000 RPM
Spindle power: 20 HP (14.9 kW)
Rapid traverse: X/Y 1,181 IPM; Z 945 IPM
Cutting feed rate: 0.04–472 IPM
Tooling & Automation
Automatic Tool Changer (ATC): 30‑tool side‑mount, CAT‑40 capacity
Max tool weight/length/dia.: 18 lb / 13 in / 3.5 in

Control & Features
CNC control: Fanuc 21iMB

Overall dimensions: ~130″ × 105″ × 110″ (3,300 × 2,670 × 2,800 mm)
Weight: ~15,400–15,500 lb (6,980–7,030 kg)
