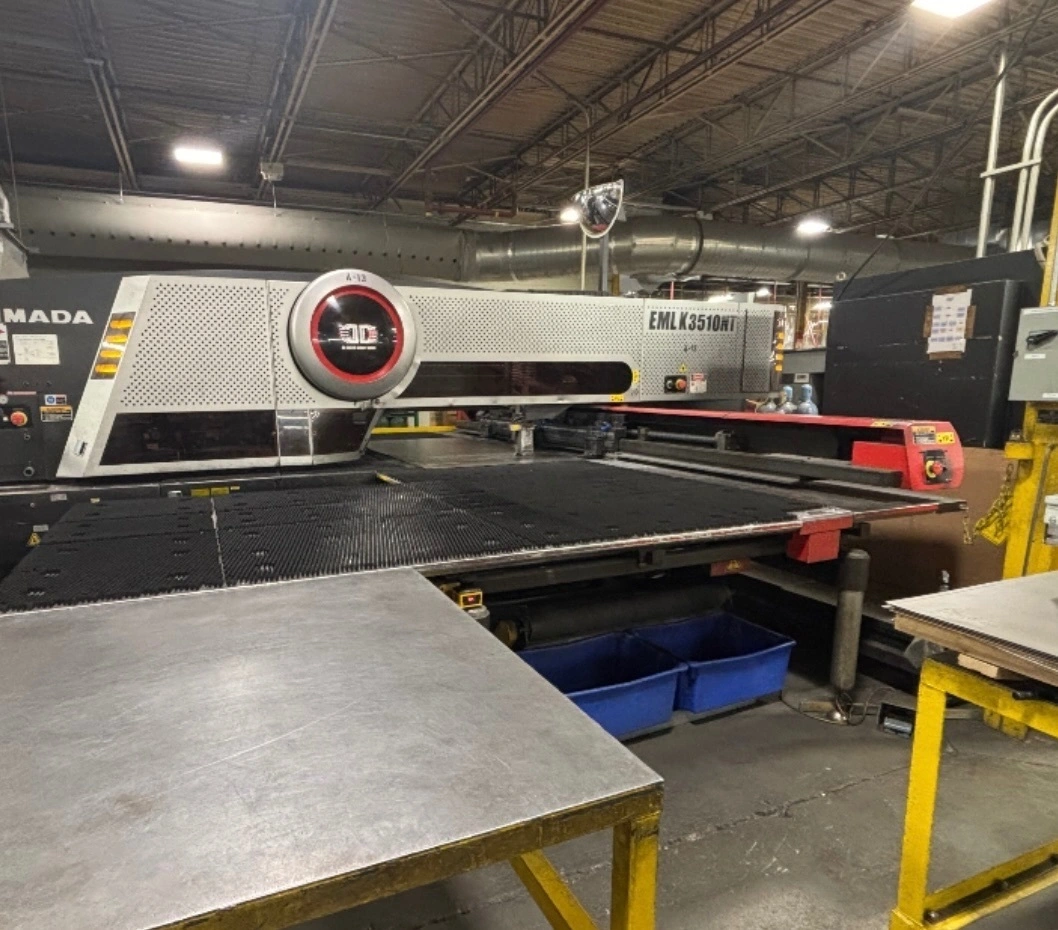

Amada EMLK3510NT 4000 Watt Combination Laser and Turret Punch (2007)

Amada EMLK3510NT Combination Laser and Turret Punch (2007)

Press Capacity: 33 Tons (300 kN).Punching Drive: Servo-electric Twin Drive.
Maximum Hit Rate: Up to 1,000 hits per minute.
Punching Hit Rate: 500 hpm (X-axis), 330 hpm (Y-axis).
Nibbling Hit Rate: 745 hpm (X-axis), 410 hpm (Y-axis).
Marking Hit Rate: 1,800 hits per minute.
Positioning Tolerance: ± 0.1 mm
Material Capacity & Work Area
Maximum Working Area (X / Y): 2500 mm x 1270 mm (98.4" x 50").
Maximum Sheet Size (With Repositioning): 5000 mm x 1270 mm (196.8" x 50").
Maximum Sheet Thickness: 4.5 mm (0.187") for mild steel.
Maximum Table Loading Weight: 150 kg (110 lbs at maximum speed parameters)
Turret & Tooling
Turret Style: Thick Turret.
Number of Stations: 58 stations total.
Auto-Index Stations: 4 stations (typically 2 x B size, 2 x E size).
Turret Rotation Speed: 30 RPM. [ Axis Feed Rates
X-Axis Travel Speed: 100 m/min (3,937 ipm).
Y-Axis Travel Speed: 80 m/min (3,150 ipm).
Simultaneous Feed Rate (X + Y): 128 m/min.
CNC Control & System
CNC Control Model: AMNC-F (FANUC 180i-PB) PC-based control.
Controlled Axes: 5 axes (X, Y, T, C + A-axis for the press).
Memory Capacity: 125 KB for 1 program, up to 10 MB total storage.
Power, Air & Dimensions
Machine Frame: Heavy-duty Bridge Frame.
Electrical Connection: 400V / 50Hz.
Electrical Power Consumption: 1 kW to 7 kW (Highly efficient compared to traditional hydraulic systems).
Air Consumption: 250 l/min (plus an additional 250 l/min if equipped with Air Jet Vacuum)
