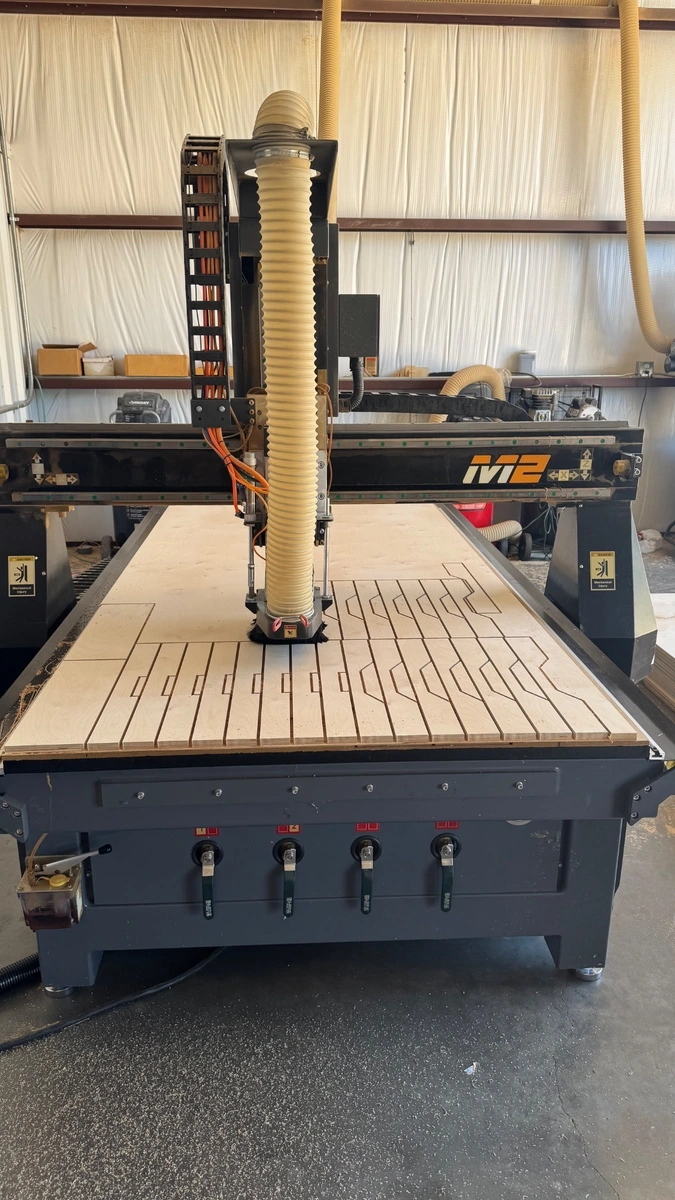

Laguna Smart Shop 2 Maker CNC Router (2007)

Laguna Smart Shop 2 Maker 4' x 8' CNC Router (2007)

Spindle Motor: 12 HP HSD ISO30 spindle (5,000 to 24,000 RPM)
Tool Changer: 8-position automatic tool rack / changer
Table Sizes Available: Commonly configured in 4' x 8' or 5' x 10' configurations
Z-Axis Clearance & Travel: 12" gantry clearance and 13" to 14" Z-axis travel
Drive System: Servo drive motors (such as Yaskawa or Fanuc depending on Pro/Elite sub-tier) with helical rack and pinion on X and Y axes, and precision ball screw on the Z axis
Rapid Speeds: Up to 1,800 to 2,500 IPM (Inches Per Minute) depending on the specific Pro or Elite package

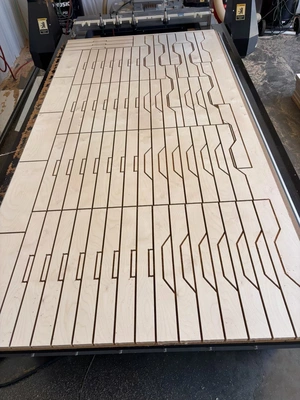

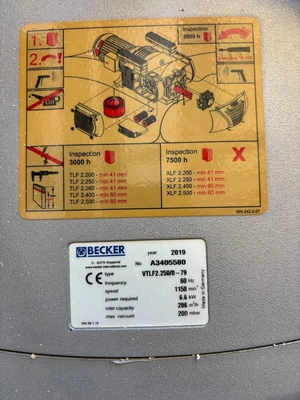

Vacuum Table: Multi-zone vacuum table (typically 6 zones) paired with an industrial vacuum pump (e.g., Becker or Gardner Denver)Frame Construction: Heavy-duty, one-piece all-steel welded frame
