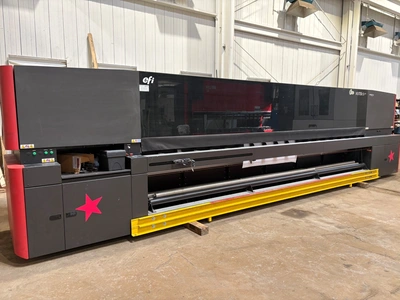

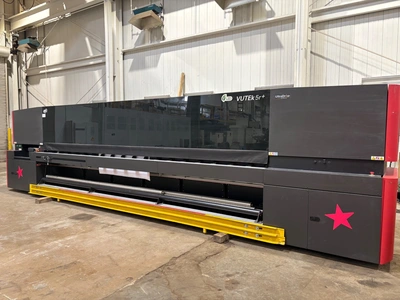

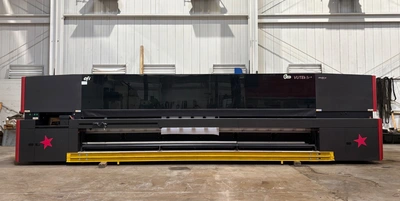

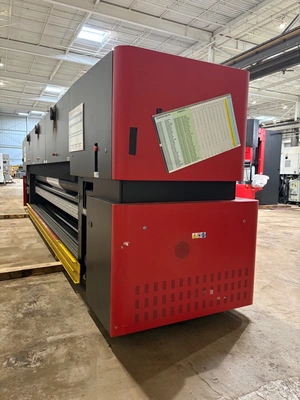

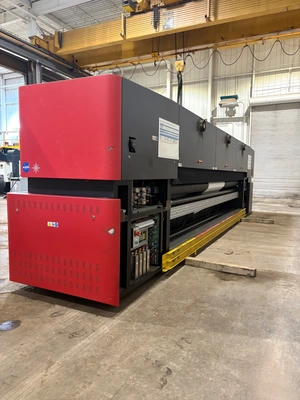

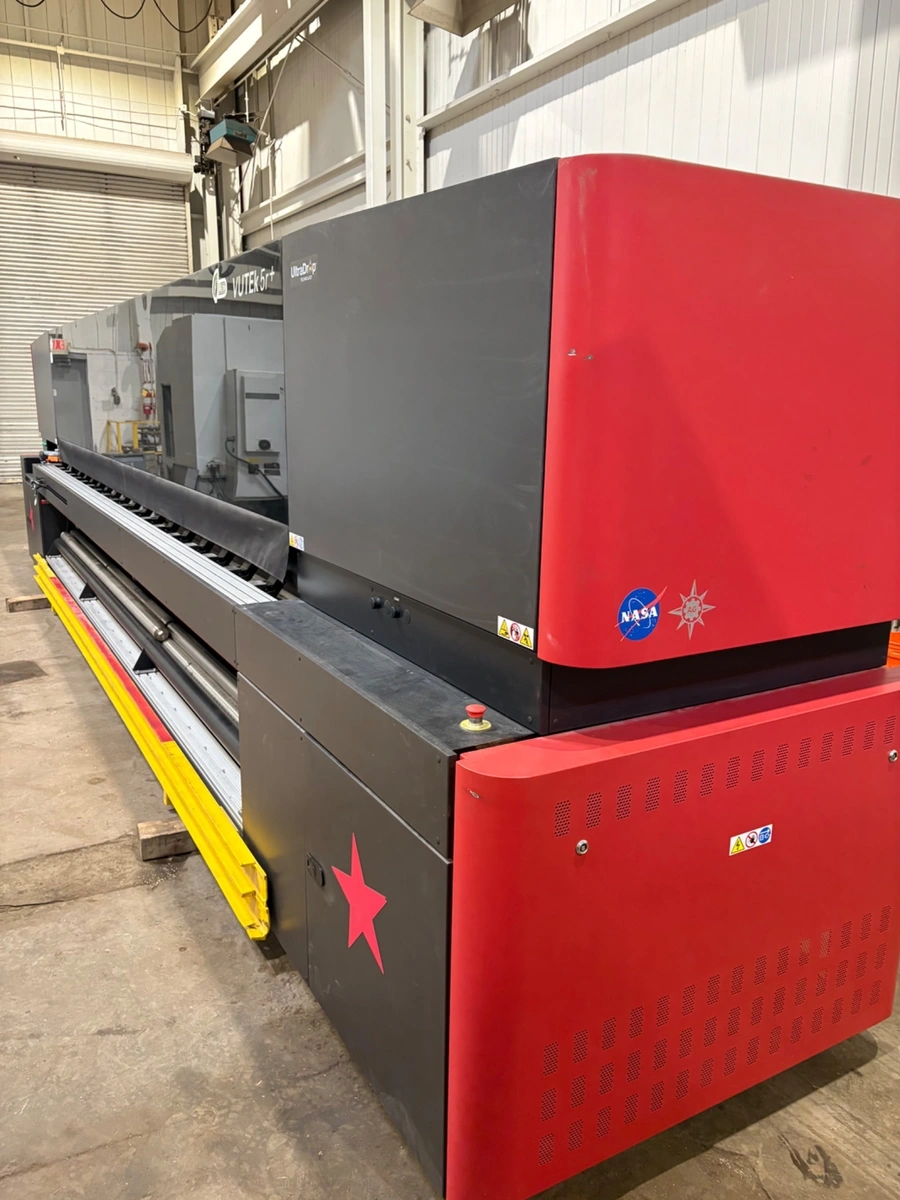

EFI Vutek 5r+ Premium, 5.2-meter (205-inch) Superwide Roll-to-Roll LED Inkjet Printer

EFI Vutek 5r+ premium, 5.2-meter (205-inch) Superwide Roll-to-Roll LED Inkjet Printer

Key Technical Specifications

Maximum Print Width: 5.2 meters / 205 inches
Max Throughput Speed: Up to 5,242 ft²/hr (487 m²/hr)
Resolution: True resolution up to 1200 dpi
Printheads & Drop Size: 18 piezo drop-on-demand printheads utilizing native 7 picoliter UltraDrop™ Technology for multi-drop addressability
Color Configurations:
CMYK standard; optional light cyan (lc), light magenta (lm), light black (lk), white ink, and clear coat
Digital Front End (DFE): Driven by the EFI Fiery proServer Premium with FAST RIP technology
Major Physical & Operational Requirements

Machine Dimensions: 840 cm wide × 155 cm deep × 220 cm high (250 cm high with emergency light)Weight: 5,500 kg (crated weight: 7,000 kg)

Power Requirements: 230/380 VAC 3-Phase (+N + PE), 32 amp, 50/60 Hz. Peak consumption is 5.7 kW
Environment: Dry and clean compressed air at 6.5 bar (110 L/min workflow); 20°C to 30°C temperature; 50% to 80% optimal humidity

Production Enhancements & "Power Tools"

The 5r+ platform features a redesigned chassis for tighter media-advance control and offers several automated in-line modules:
Finishing: Built-in modular systems for automatic X-axes cutting, slitting, and trimming during the print run.
Double-Sided Printing: Automated systems designed for precise registration on backlit and blockout applications.
Heavy Roll Loader: An optional motorized air shaft system that supports jumbo rolls weighing up to 400 kg.
Wrinkle Analyzer: Automatically detects substrate wrinkles and dynamically adjusts the carriage height to prevent head strikes
