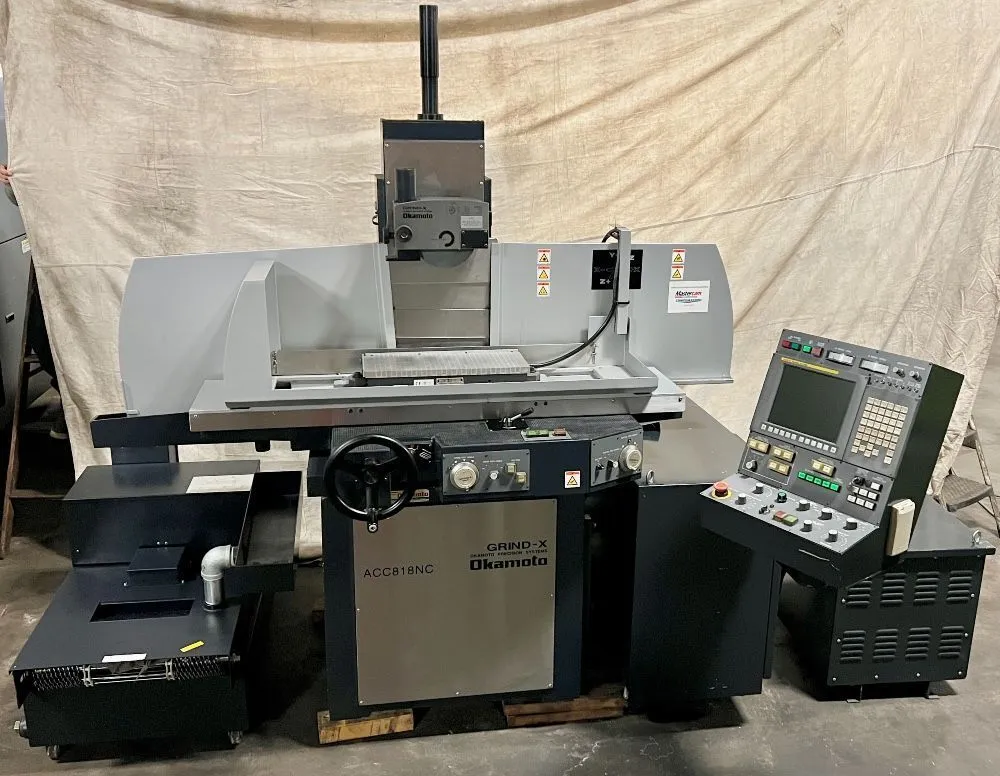

Okamoto ACC818NC Grind-X 3-Axis CNC Surface Grinder (2016)
Have one to sell?
ConditionUsed
1 available
Okamoto ACC818NC Grind-X 3-Axis CNC Surface Grinder (2016)
Okamoto ACC818NC Grind-X 3-Axis CNC Surface Grinder (2016)
Table Work Area: 20.86” x 7.87”
Table Movement (Longitudinal x Cross): 20.86” x 9.05”
Chuck Size: 8” x 15” Electromagnetic Chuck
Max. Vertical Clearance: 14.07”
Table Travels (Longitudinal x Cross): 20.86” x 9.05”
Max Distance from Table to Spindle Center: 18.11”
Table Load Capacity: 265lbs
Longitudinal Feed Rate: 0.3 – 65 ft/min
Continuous Automatic Cross Feed Rate: 0.3 – 3.2 ft/min
Longitudinal Feed Rate(s): 0.3 -65 FPM
Cross Feed Rate(s): 0.3-3.2 FPM
Incremental Down Feed Increments: 0.00001” – 0.0015”
Rapid Vertical Wheel Travel Rate: 0 – 3.2 ft/min
Grinding Wheel Size: 8” x 0.23” – 1” x 1.25”
Spindle Drive Motor: 2HP

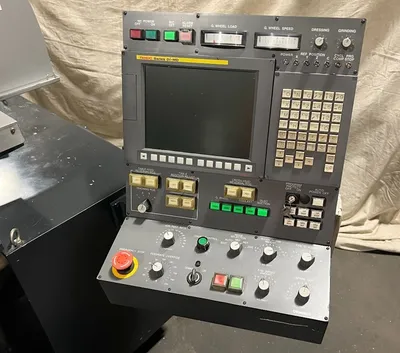

Fanuc Oi-MD
The ACC-8•18NC Form Grinder deliver the benefits of a full-function CNC surface grinder at a fraction of the price. It's loaded with performance features and the powerful control affords you a full array of grinding capabilities.
Superb construction with heavily ribbed Meehanite cast construction.
Full contact Double Vee for true tracking and unrivaled accuracy.
User-friendly "Touch & Teach" conversational programming simplifies set-up and operation even for operators unfamiliar with CNC.
Ideal for Surface, Slot, Step, Form and Contour Grinding.
Set up to 4 different table stroke positions. Ideal for multiple workpiece grinding.
3-point diamond dresser includes one 2-point angle dresser for form dressing and one 1-point dresser for straight dressing.
