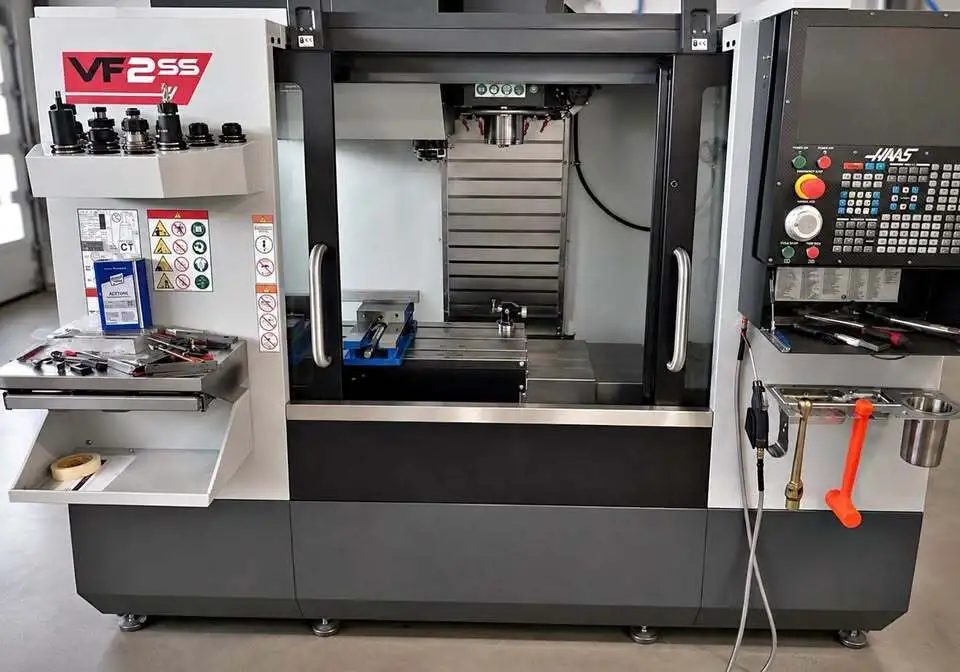

Haas VF2SS Vertical Machining Center (2026)

Haas VF-2SS CNC Vertical Machining Center (2026)

X-Axis Travel: 30.0 inches (762 mm)
Y-Axis Travel: 16.0 inches (406 mm)
Z-Axis Travel: 20.0 inches (508 mm)
Table Size: 36.0" Length x 14.0" Width (914 mm x 356 mm)
Max. Table Weight Capacity: 1,500 lbs (680 kg)
Spindle Nose to Table Distance: 4.0" to 24.0" (102 mm to 610 mm) [1]
Spindle Specifications
Max. Spindle Speed: 12,000 RPM
Drive System: Inline Direct-Drive
Spindle Motor: 30.0 HP Vector Drive (22.4 kW)Spindle Taper: CAT 40 [3]
Feedrates & Motion
X/Y/Z Axis Rapids: 1,400 inches per minute (ipm) / 35.6 m/min
Max. Cutting Feedrate: 833 inches per minute (ipm) / 21.2 m/min [1]
Automatic Tool Changer (ATC)
Tool Capacity: 30 + 1 Stations (Side-mount tool changer)Tool-to-Tool Time: 1.8 seconds
Chip-to-Chip Time: 2.4 seconds
Max. Tool Weight: 12 lbs (5.4 kg)
General Machine Requirements & Footprint
Machine Weight: Approx. 7,800 lbs to 8,500 lbs (Depending on options)
Air Required: 4 scfm @ 100 psi minimum (113 L/min @ 6.9 bar)
Coolant Tank Capacity: 55 Gallons (208 Liters)
Electrical Power: 220 VAC @ 70A or 440 VAC @ 35A (3-Phase, 60Hz)
