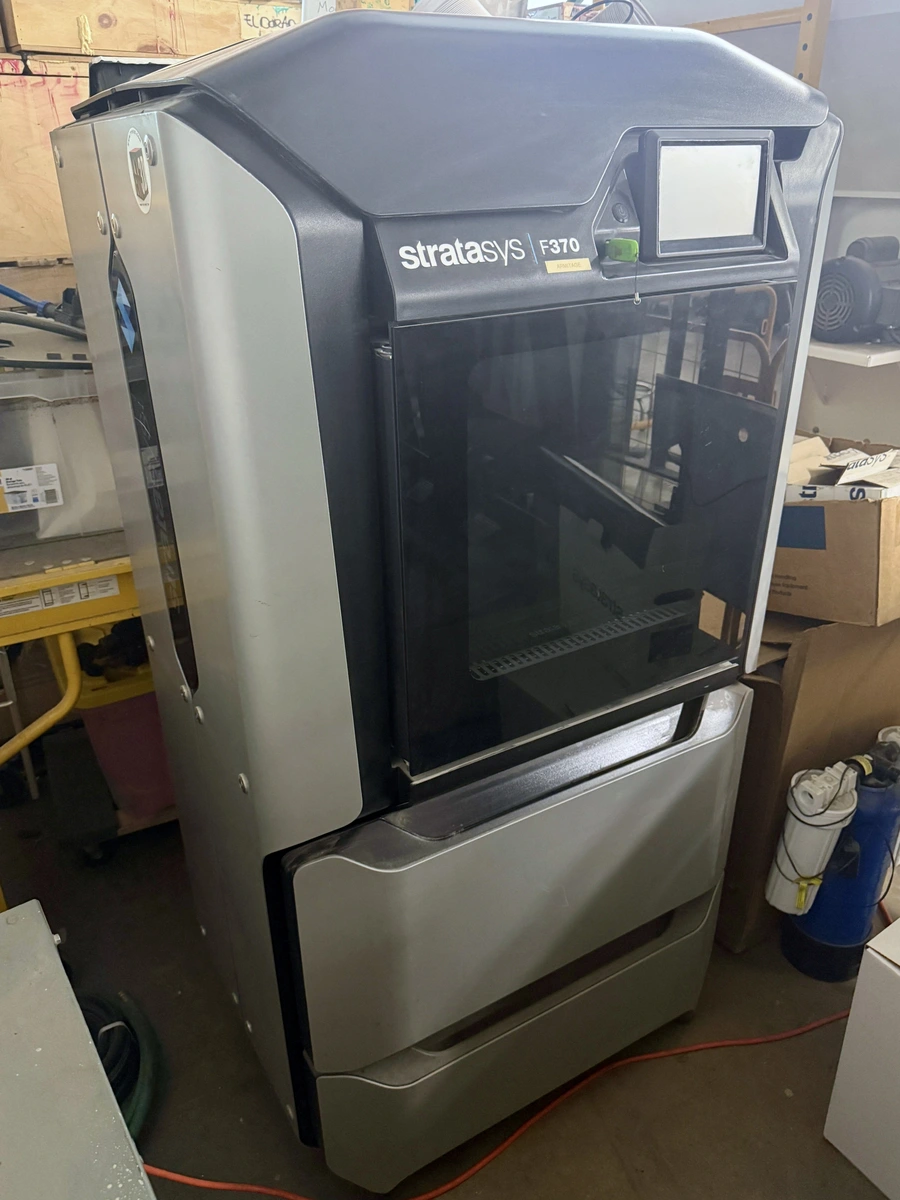

Stratasys F370 3D Printer (2020)

Stratasys F370 3D Printer (2020)

14 x 10 x 14 inches (355 x 254 x 355 mm)
Technology: Fused Deposition Modeling (FDM)
Material Bays: 4 total bays (2 model, 2 support) with automatic spool changeover
Supported Materials: PLA, ABS, ASA, TPU 92A, ABS-ESD7, ABS-CF10, Diran 410MF07, PC-ABS, and QSR Soluble Support
Machine Dimensions: 64 x 34 x 28 inches (1,626 x 864 x 711 mm)
Weight: 500 lbs (227 kg) with consumables
Software: GrabCAD Print and Insight [1] (https://support.stratasys.com/en/Printers/FDM/F123-Series),
System Size and Weight 1,626 x 864 x 711 mm (64 x 34 x 28 in.), 227 kg (500 lbs) with consumables
Build Envelope 355 x 254 x 355 mm (14 x 10 x 14 in.)
Noise Specification 46 dB maximum during build, 35 dB when idle
Achievable Accuracy1 Parts are produced within an accuracy of +/- .200 mm (.008 in.), or +/- .002 mm/mm
(.002 in./in.), whichever is greater.
Material Delivery Options 4 material spool bays, 2 for model, 2 for support located in a drawer on the
front of the unit
Network Connectivity
Wired: TCP/IPv6 protocols at 100 Mbps minimum 100 base T, Ethernet protocol,
RJ45 connector
Wireless-ready: IEEE 802.11n, g, or b; Authentication: WPA2-PSK, 802.1x EAP
Encryption: CCMP, TKIP
Software GrabCAD Print, GrabCAD Print Pro2
, and Insight™
System Requirements Windows 10 and 11 (64bit only) with a minimum of 8GB RAM (16GB or more recommended)
Operating Environment Operating: Temperature: 15 – 30 ºC (59 – 86 ºF), Humidity: 30 – 70% RH
Storage: Temperature: 0 – 35 ºC (32 – 95 ºF), Humidity: 20 – 90% RH
Power Requirements 100–132V/15A or 200–240V/7A. 50/60 Hz
Certifications3 GREENGUARD Certified per UL 2904 when using ABS, ASA, and QSR support materials
Regulatory Compliance CE (low-voltage and EMC directive), FCC, EAC, cTUVus, FCC, KC, RoHs, WEEE, Reach, RCM
