8' x 19" Ooya Model Model RE3-2500 Radial Arm Drill
Have one to sell?
ConditionUsed
1 available

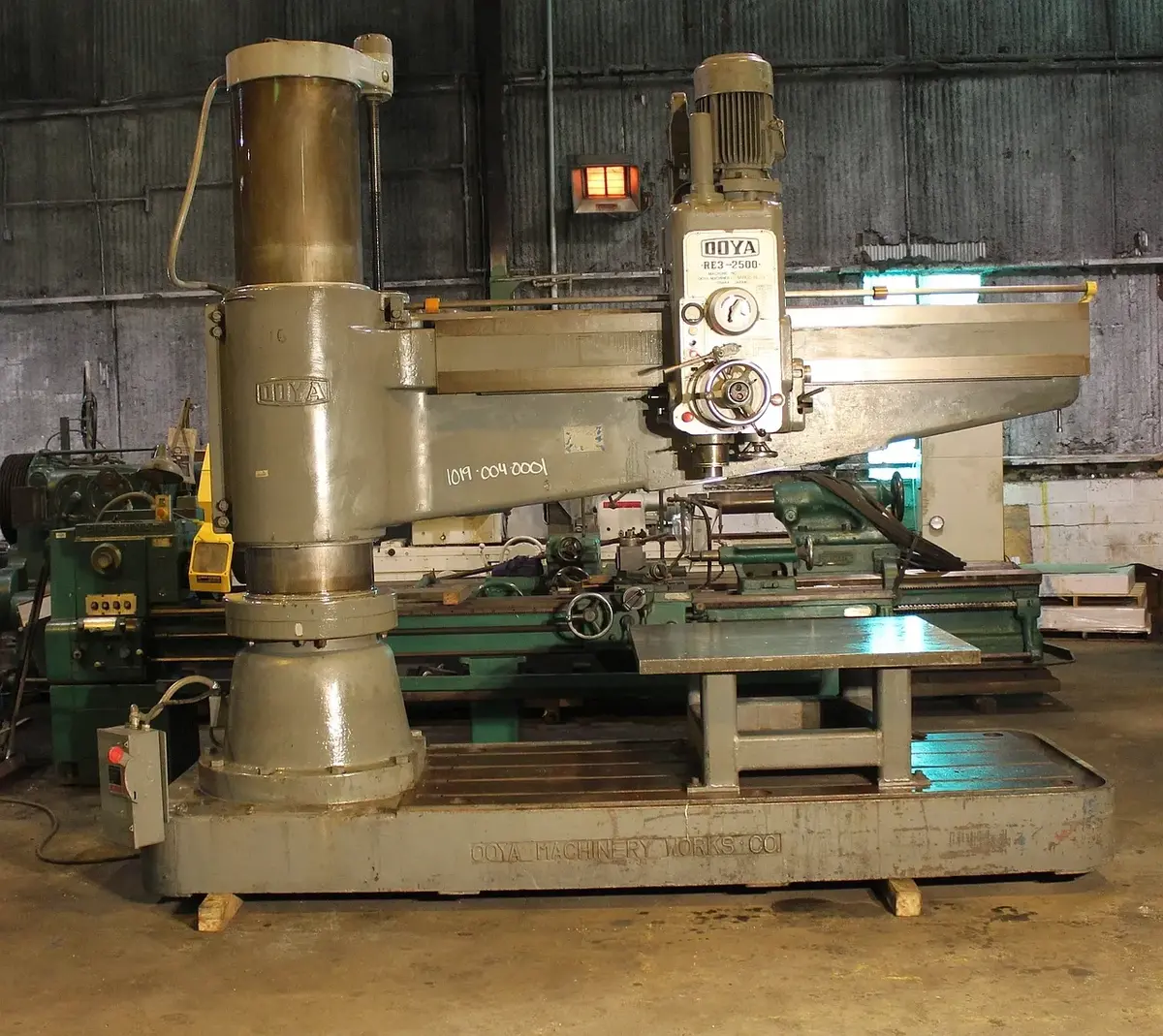

Ooya Model Model RE3-2500 8' x 19" Radial Arm Drill with Box Table
Ooya Model RE3-2500 8' x 19" Radial Arm Drill
Drilling Capacity ( Steel ) 3"
Drilling Capacity ( Cast Iron ) 3-5/8"
Spindle Taper #5 M.T.
Maximum Distance Column To Spindle Center 99-1/4"
Column Diameter 19"
Minimum Distance Column To Spindle Center Line16-1/2"
Maximum Distance Base To Spindle 70-7/8"
Minimum Distance Base To Spindle 22-1/4"
Speeds ( 16 ) 20 To 2180 Rpm
Feeds ( 18 ) .0015 To .125
Main Drive Motor 10 Hp
Machine Weight -20,000 Lbs
Approximate Machine Dimensions 140"(Lr) X 52"(Fb) X 130"(H)
Drill/Tap Clamping To Head/Column And Arm Auto Lubrication T-Slotted Base Coolant
