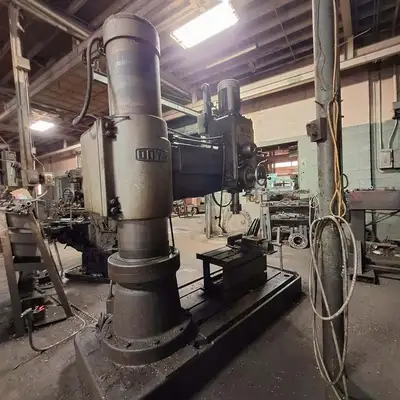

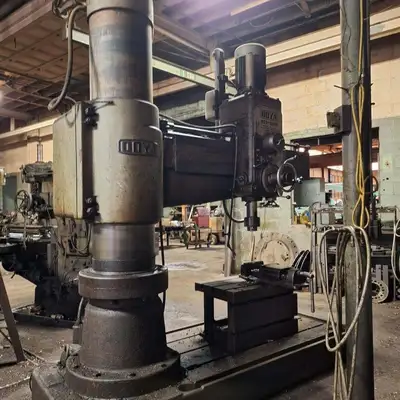

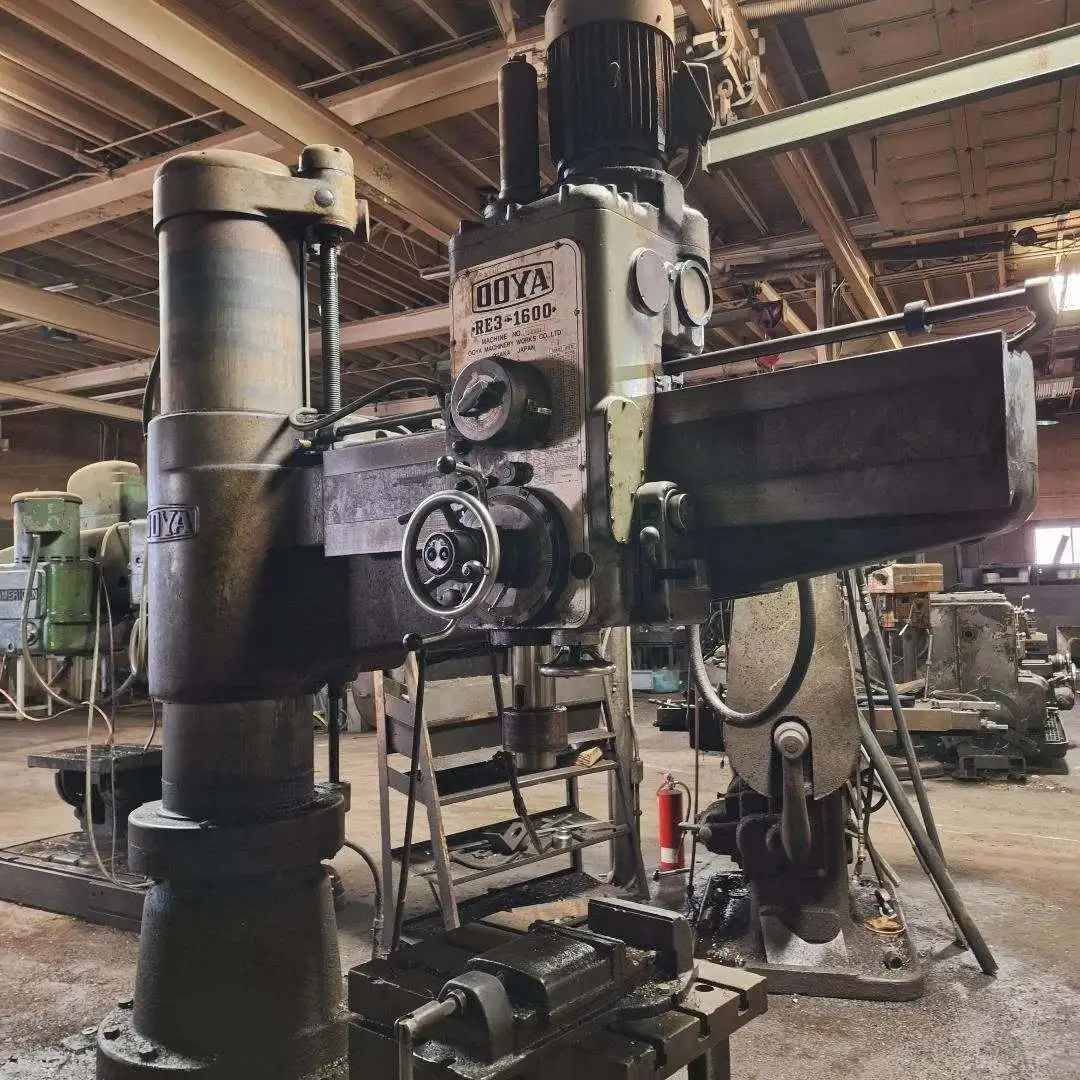

Ooya RE3-1600 5' x 16" Radial Arm Drill

Ooya RE3-1600 5' x 16" Radial Arm Drill

Arm Length: 5 feet (60 inches / ~1,500 mm)
Column Diameter: 16 inches (approx. 406–416 mm)
Drilling Capacity (Solid Steel): 3 inches (approx. 75 mm)
Drilling Capacity (Cast Iron): 3-3/4 inches (approx. 90 mm)
Boring Capacity (Steel): 7-7/8 inches
Boring Capacity (Cast Iron): 11 inches
Tapping Capacity (Steel / Cast Iron): 60 mm / 75 mm
Spindle & Quill
Spindle Taper: Morse Taper #5 (MT5)
Spindle Speeds: 16 speeds ranging from 20 to 2,180 RPM
Spindle Feed Rates: 18 feeds ranging from 0.0015 to 0.125 inches per revolution (0.04 to 3.17 mm/rev)
Spindle Travel (Quill Stroke): 15-3/4 inches (400 mm)Spindle Drive Motor: 10 HP (7.5 kW)
Physical Dimensions & Travels
Arm Length: 5 feet (60 inches / ~1,500 mm)
Column Diameter: 16 inches (approx. 406–416 mm)
Max Distance (Column to Spindle Center): 63-3/4 inches (1,620 mm)
Min Distance (Column to Spindle Center): 13-3/4 inches (350 mm)
Horizontal Travel of Spindle Head: 50 inches (1,330 mm)
Max Distance (Base to Spindle): 61-1/2 inches (1,575 mm)
Min Distance (Base to Spindle): 14-1/8 inches (340 mm)
Vertical Travel of Arm: 32-1/4 inches (850 mm)
Arm Rotation: Full 360 degrees
Footprint & Weight
Overall Machine Footprint: 114" L x 44" W x 112" H
Base Plate Dimensions: 100-7/8" L x 40-1/2" W x 9-7/16" H
Standard Box Table Size: 29.5" L x 19.6" W x 17.7" H
Net Machine Weight: Approx. 12,100 lbs (5,500 kg)
