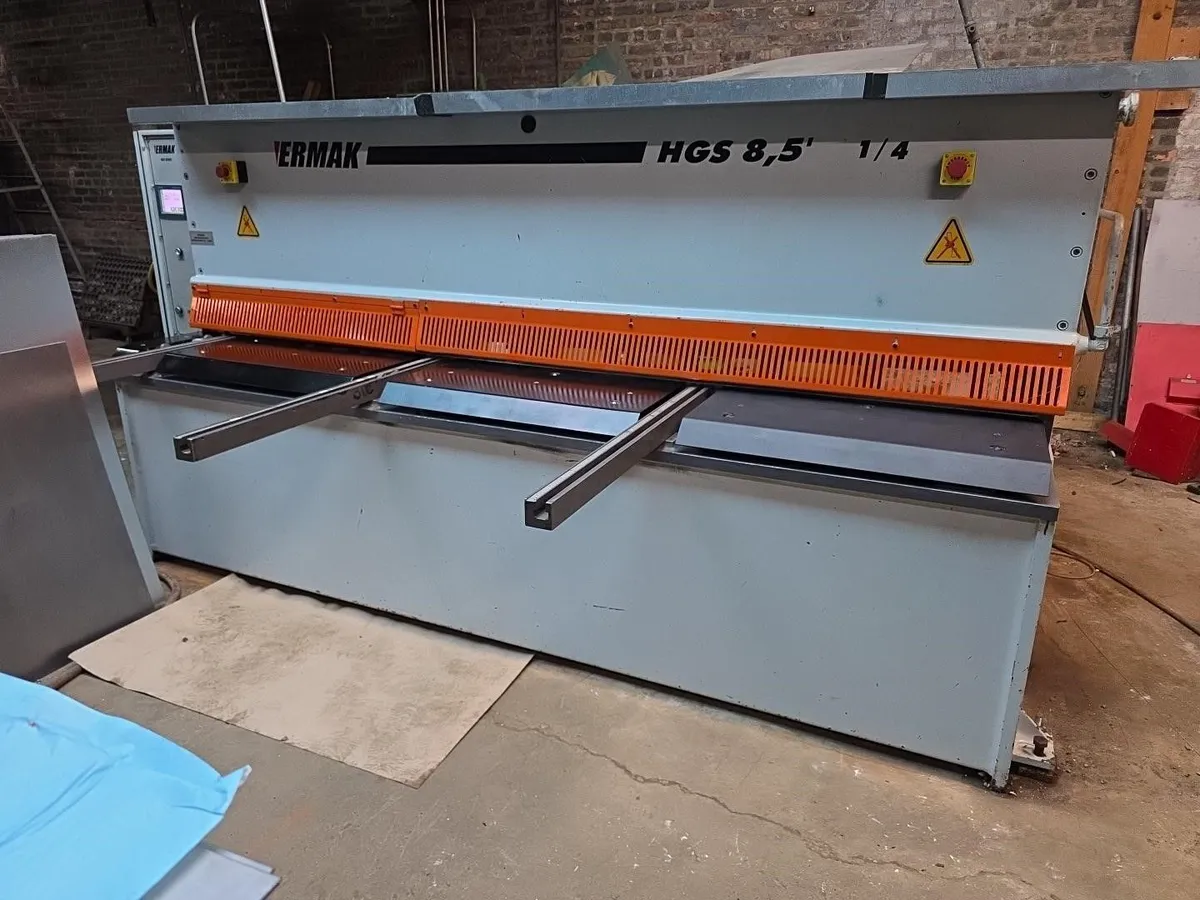

Ermak Model HGS 8.5' X 1/4" Hydraulic Power Squaring Shear (2013)

Ermak Model HGS 8.5' X 1/4" Hydraulic Power Squaring Shear

Cutting Length: 8.5 feet (approx. 2,600 mm / 102 inches)
Cutting Capacity (Mild Steel - 42 kg/mm²): 1/4" (6 mm)
Cutting Capacity (Stainless Steel - 70 kg/mm²): 0.16" (4 mm)
Strokes Per Minute (SPM): 24 strokes/min
Backgauge Stroke: 1,000 mm (approx. 39 inches) with 0.1 mm accuracy
Number of Hold-Down Cylinders: 12
Cutting Angle (Rake Angle): 1.2°Main Drive Motor: 18 HP
Backgauge Motor: 1 HP (0.75 kW)
Hydraulic Oil Capacity: 150 liters (approx. 39.6 US gallons)
Blade Gap Adjustment Range: 0.05 mm – 0.8 mm (single-point / quick manual or hydraulic adjustment)
Electrics: 230/460/3/60
Machine Weight 11,000 lbs
Dimensions 137" x 83" x 64"
