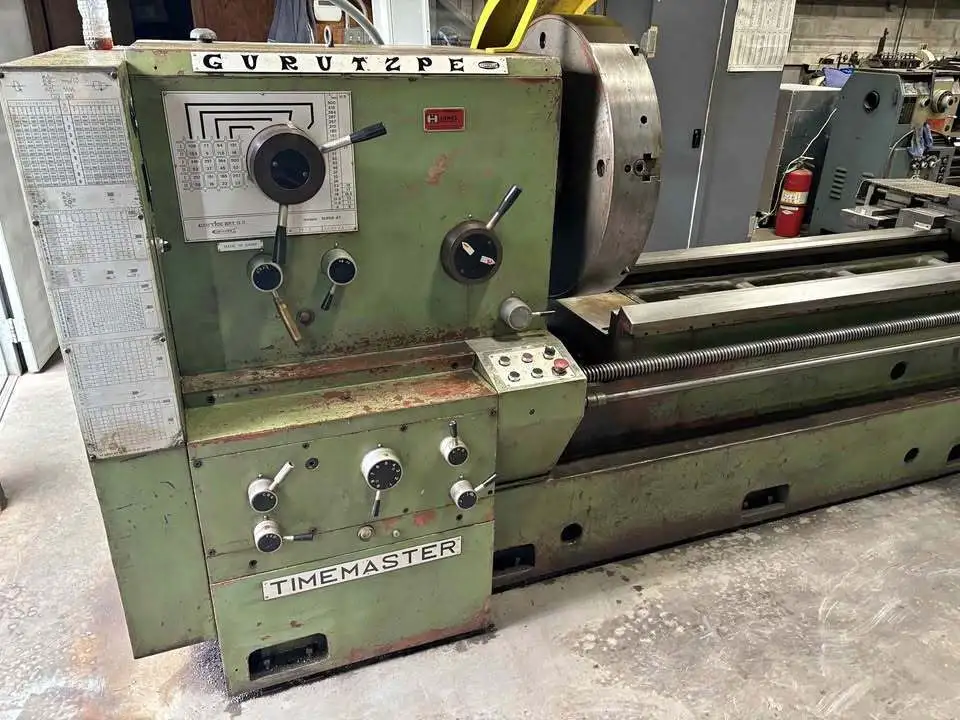

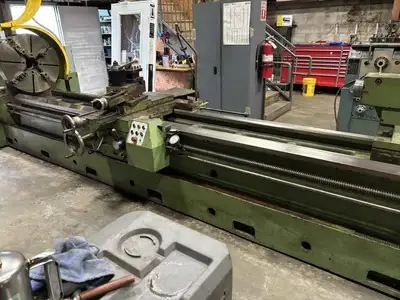

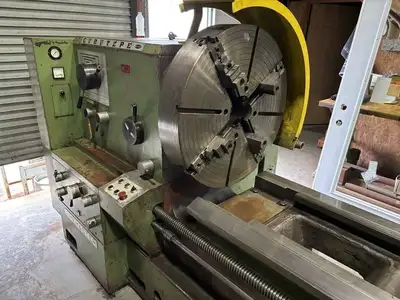

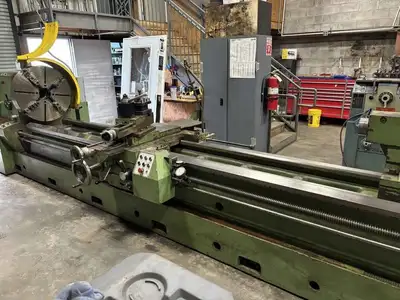

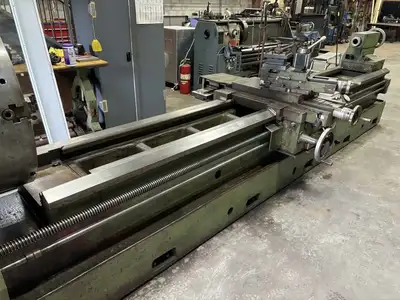

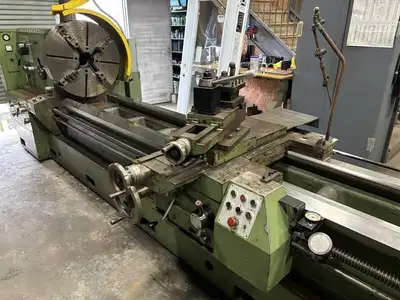

Timemaster Gurutzpe Super AT 4000/400 32” / 45” x 160” Gap Bed Engine Lathe

Timemaster Gurutzpe Super AT 4000/400 32” / 45” x 160” Gap Bed Engine Lathe

Swing Over Bed: 32-9/32"
Swing in Removable Gap: 45-9/32"
Distance Between Centers: 160"
Swing Over Cross Slide: 21-5/8"
Length of Gap: 21-5/8"
Hole Through Spindle: 5-1/2"
Width of Bed: 21-1/4"Spindle,
Headstock & Tailstock
Spindle Nose: D1-11" Camlock (front and rear)
Spindle Speeds: 9 to 500 RPM (24 speed changes)
Spindle Motor: 25 HP
Tailstock Quill Taper: #6 Morse Taper (MT)
Tailstock Quill Diameter: 4-3/4"
Tailstock Quill Travel: 9-15/16"
Feeds & Threading Ranges
Longitudinal Feeds (90 options): 0.0015" to 0.066" per revolution
Cross Feeds (90 options): 0.00078" to 0.036" per revolutionInch
Threads (81 options): 1/4 to 112 TPI (Threads Per Inch)Metric
Threads (61 options): 1 mm to 112 mm pitch
Machine Weight & Footprint
Approximate Weight: 16,500 lbs
Approximate Footprint: 244" (Length) × 64" (Width) × 65" (Height)
