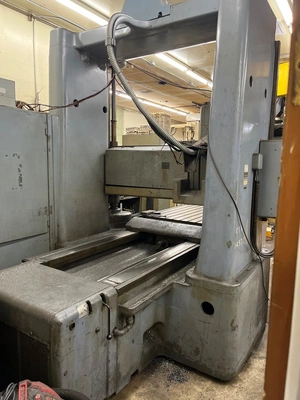

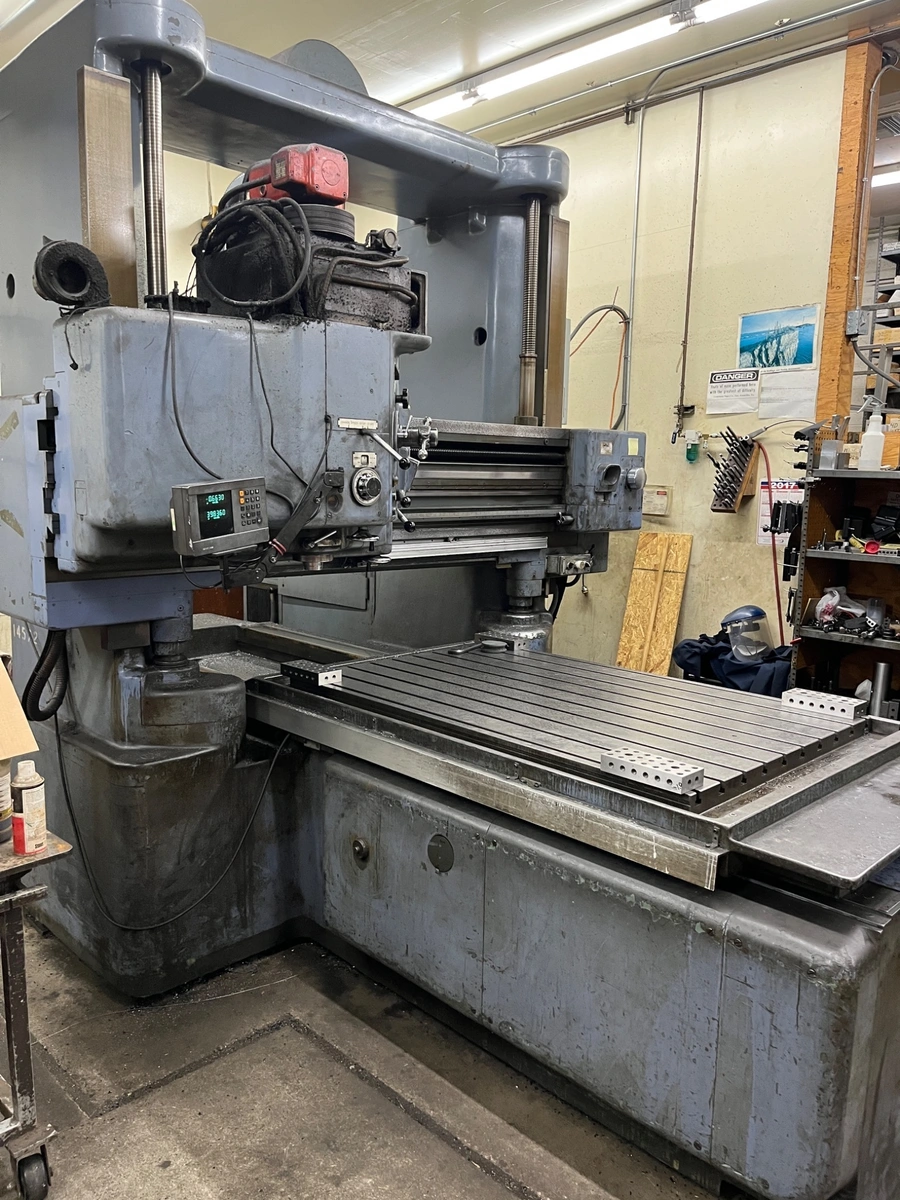

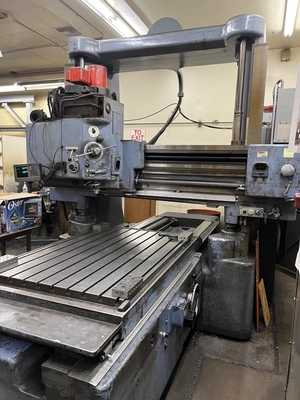

SIP Hydroptic 7A Precision Jig Borer

SIP Hydroptic 7A Precision Jig Borer

Table Work Surface1,570 × 1,024 mm (61.75" × 40.5")
Longitudinal Travel (X-axis)1,400 mm (55")
Cross Travel (Y-axis)1,000 mm (40")
Spindle Head Travel along Rail1,000 mm (40")
Vertical Cross Rail Travel (Z-axis)900 mm (35.5")
Spindle Quill Travel 300 mm (12")
Maximum Distance from Table to Spindle Nose1,215 mm (48")
Distance Between Columns1,600 mm (63")
Maximum Table Load2,000 kg (4,400 lbs)
Spindle Tape
rSIP Type (often MT4 or custom quick-change)
Spindle Speeds18 steps (40 to 2,000 RPM)
Spindle Feeds 4 steps (0.04 to 0.35 mm/rev)
Milling Feeds (Infinitely Variable)25 to 500 mm/min
Positioning Accuracy0.003 mm (0.00012")
Reading Resolution 0.001 mm (0.00004")
Machine Net Weight
Approx. 14,500 to 16,000 kg (32,000+ lbs)
