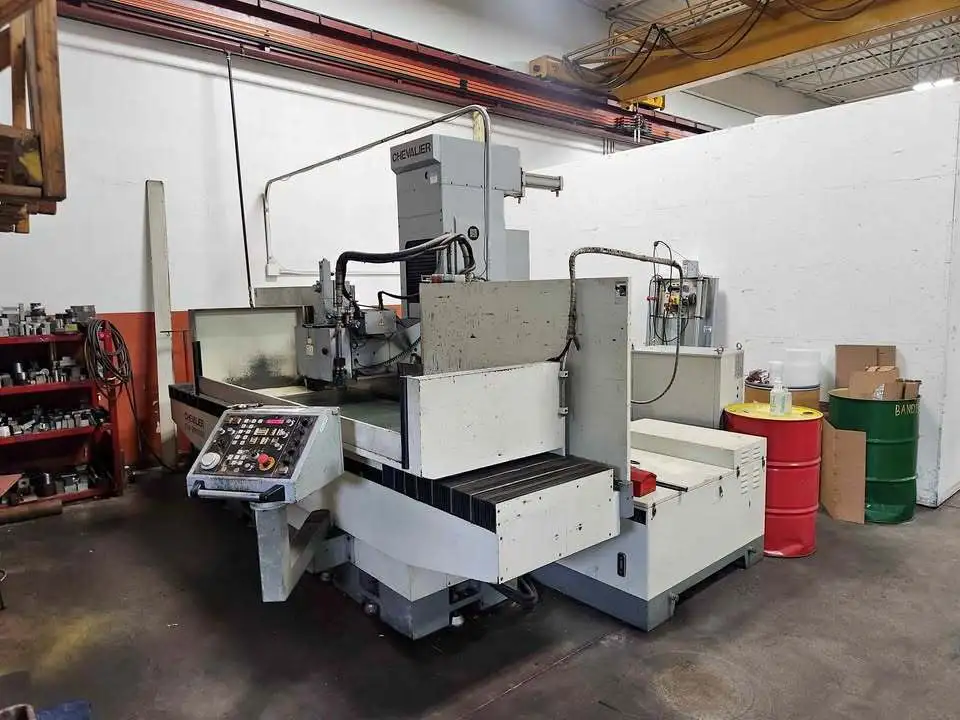

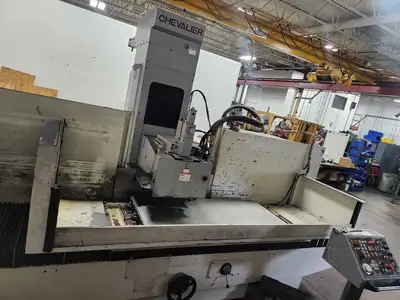

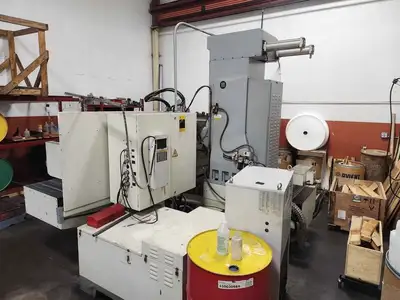

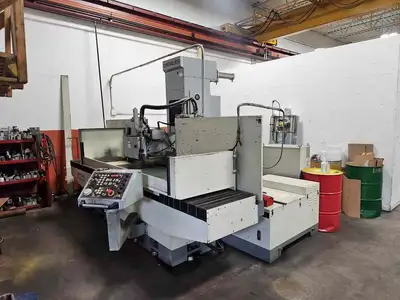

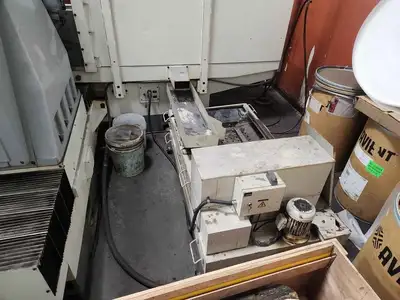

Chevalier FSG-2460ADII Hydraulic Horizontal Surface Grinder

Chevalier FSG-2460ADII Hydraulic Horizontal Surface Grinder

Technical Specifications
Capacity & Table

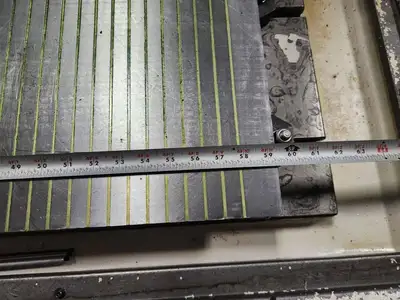

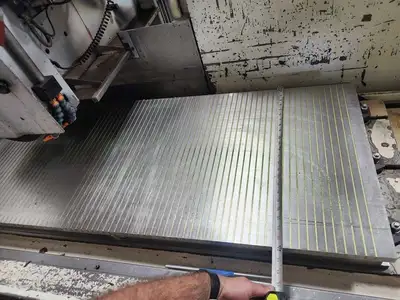

Table Size: 24" x 60" (600 mm x 1,500 mm)
Maximum Grinding Capacity: 24" x 60" (600 mm x 1,500 mm)

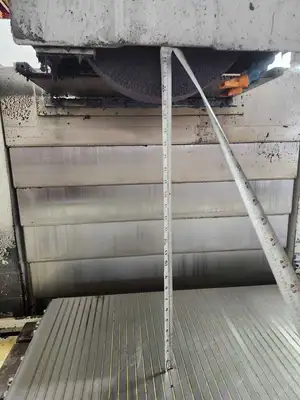

Maximum Distance (Table Surface to Spindle Centerline): 33.46" (850 mm
)Maximum Table Load: Up to 3,960 lbs (1,800 kg) including electromagnetic chuck
Spindle & Grinding Wheel
Spindle Motor Power: 15 HP (11.2 kW) heavy-duty cartridge spindle
Standard Grinding
Wheel Dimensions: 16" x 3" x 5" (406 mm x 76.2 mm x 127 mm)
Spindle Speed: Approx. 1,450 to 1,750 RPM
Feeds & Travels
Longitudinal Table Travel (X-axis): 63" (1,600 mm)
Cross Transverse Travel (Z-axis): 26.6" (690 mm)
Table Speed (Hydraulic Variable): 16 to 82 FPM (5 to 25 m/min)
Automatic Down Feed Increments: 0.00005" to 0.002" (0.001 mm to 0.05 mm)
Key Structural & Operational Features

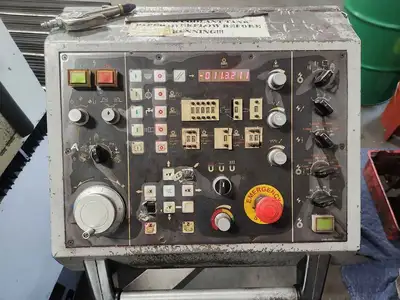

3-Axis Automatic Control:
Features automated down-feed and crossfeed operations tailored for plunge and surface grinding cycles.
Turcite-B Guideways: The saddle and column ways are laminated with Turcite-B and hand-scraped to minimize friction, eliminating stick-slip movements while ensuring high tracking accuracy.Precision Spindle Bearings:

Equipped with Class 7 (P4) angular contact ball bearings to withstand heavy radial and axial grinding forces.
Automated Lubrication System:
Features a continuous, automatic lubrication system targeting all slides and leadscrews for minimized wear.
