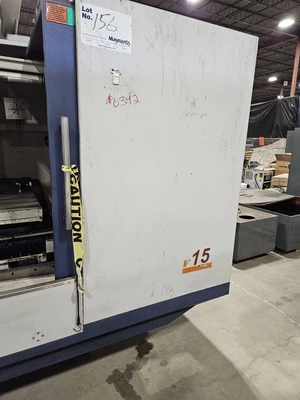

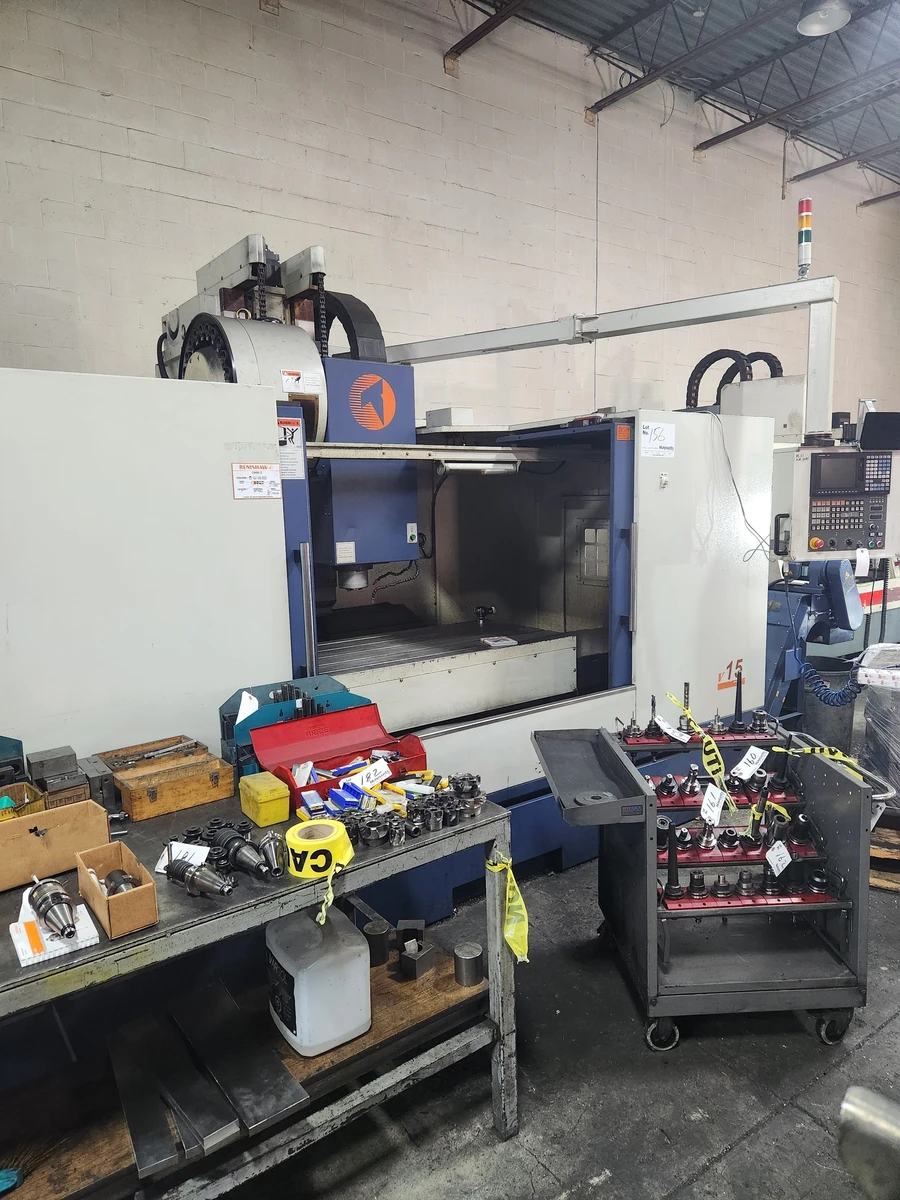

Takumi V15 Vertical Machining Center (2012)

Takumi V15 Vertical Machining Center (2012)

X-Axis Travel: 60 in (1,524 mm)
Y-Axis Travel: 30 in (762 mm)
Z-Axis Travel: 28.3 in (720 mm)
Table Dimensions: 63 x 30 in (1,600 x 760 mm)
Maximum Table Load: 3,300 lbs (1,500 kg)
Spindle System
Spindle Speed: 6,000 RPM (Gear-driven for high torque)
Spindle Taper: CAT 50 (Standard on US box-way models; some global/older variants feature CAT/BT 40)
Spindle Power: 25 HP (18.5 kW)Peak Torque: 437.2 ft-lbs (640 Nm)
Cooling: Spindle thermal control oil chiller included
Automatic Tool Changer (ATC)Capacity: 24 Stations (Swing-arm style)
Maximum Tool Weight: 33 lbs (15 kg)Tool Selection:
Random access Feeds and Motion
Rapid Traverse (X/Y): 708 ipm
Rapid Traverse (Z): 630 ipm
Guideways: Box-way construction on all axes for maximum rigidity and dampening
Ballscrews: Pre-tensioned to eliminate thermal deformation
CNC Control Options
