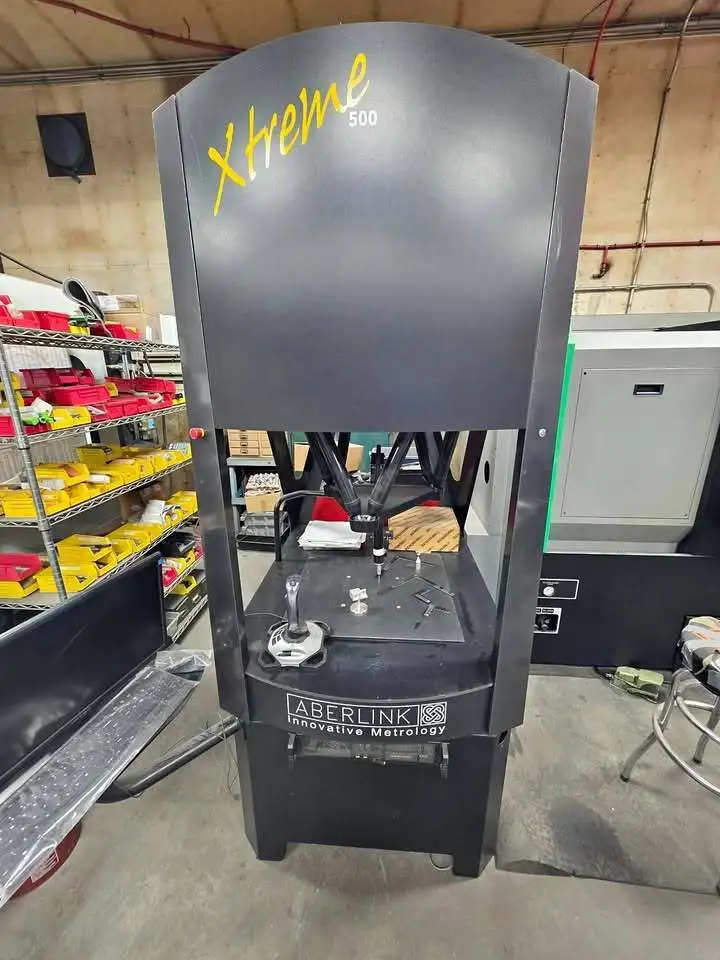

Aberlink Xtreme 500 CMM Coordinate Measuring Machine (2019)

Aberlink Xtreme 500 CMM Coordinate Measuring Machine (2019)

Core Dimensions & Capacity
Measuring Range (X × Y × Z): 500 mm × 500 mm × 300 mm
Overall Footprint: Designed to have the smallest footprint among equivalent-size CMMs.
Accuracy & Motion Performance
Volumetric Accuracy: 3.0 µm + L/250 mm (compliant with ISO 10360-2).Scale Resolution: 0.0005 mm (utilizing a Renishaw scale and readhead).
Maximum Vector Velocity: 500 mm/sec.
Maximum Vector Acceleration: 750 mm/sec².
Design & Shop Floor
Suitability
Drive & Bearing Type: Non-Cartesian architecture driven by linear motors with mechanical bearings.
Air Consumption: Zero. It is a true "plug-and-go" system requiring no pneumatic lines.
Temperature Control: Features a built-in temperature control mechanism where structural struts run slightly above ambient temperature to prevent environmental thermal expansion errors.
Standard System Hardware & Software

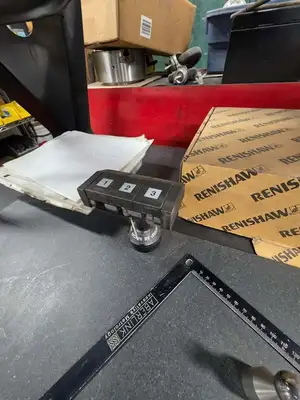

Probing System: Standard configuration includes a Renishaw TP20 Probe Body and TP20 Probe Module.Stylus Changing
