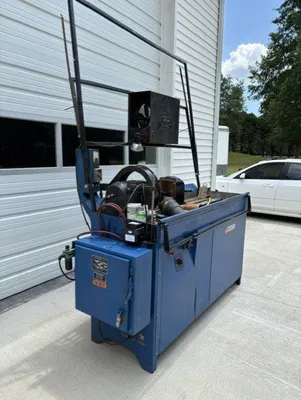

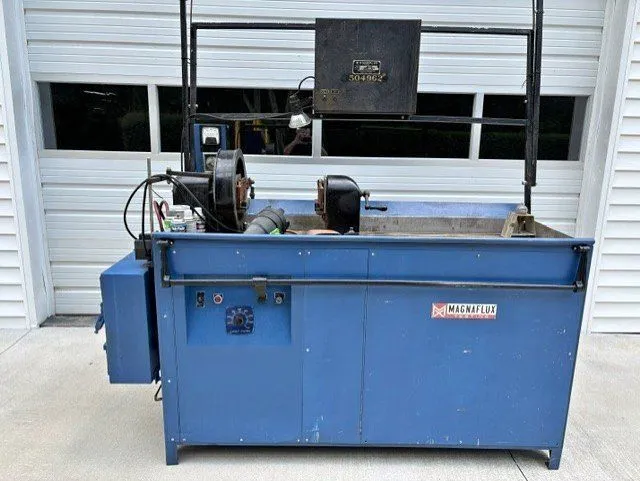

Magnaflux H-700 Particle Inspection Machine

Magnaflux H-700 Particle Inspection Machine

Magnetization & Electrical Capabilities
Magnetizing Current Capacity: 4,000 Amperes maximum output.
Current Type: FWDC (Full Wave Direct Current) and AC (Alternating Current) depending on configuration.
Current Control: Infinitely variable current adjustment.
Demagnetization: Integrated decaying-AC demagnetization.
Duty Cycle: 0.5 seconds ON, 2 to 10 seconds OFF.
Input Voltage: 230V / 460V, single-phase power module.
Mechanical & Physical Capacity

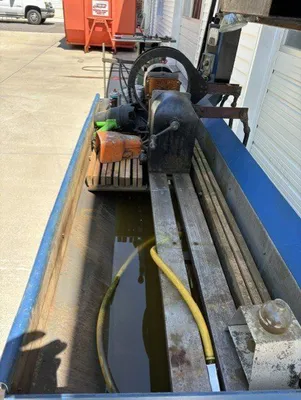

Part Length Capacity: Standard configurations feature a 54-inch or up to 96-inch headstock-to-tailstock span.
Coil Sizes: Available in 12-inch, 16-inch, or 20-inch variations for longitudinal magnetization.
Clamping Mechanism: Pneumatic headstock operation controlled via a standard foot switch.
Construction: Heavy-duty powder-coated frame and panels outfitted with front/rear hardwood grilles to protect the unit and components.
Standard Features & System Controls
Instrumentation: Built-in digital ammeter for precision current tracking.
Circuitry: Solid-state circuitry designed for repeatable and reliable current shots.
Ergonomics: Includes a manual push bar for quick positioning changes.
