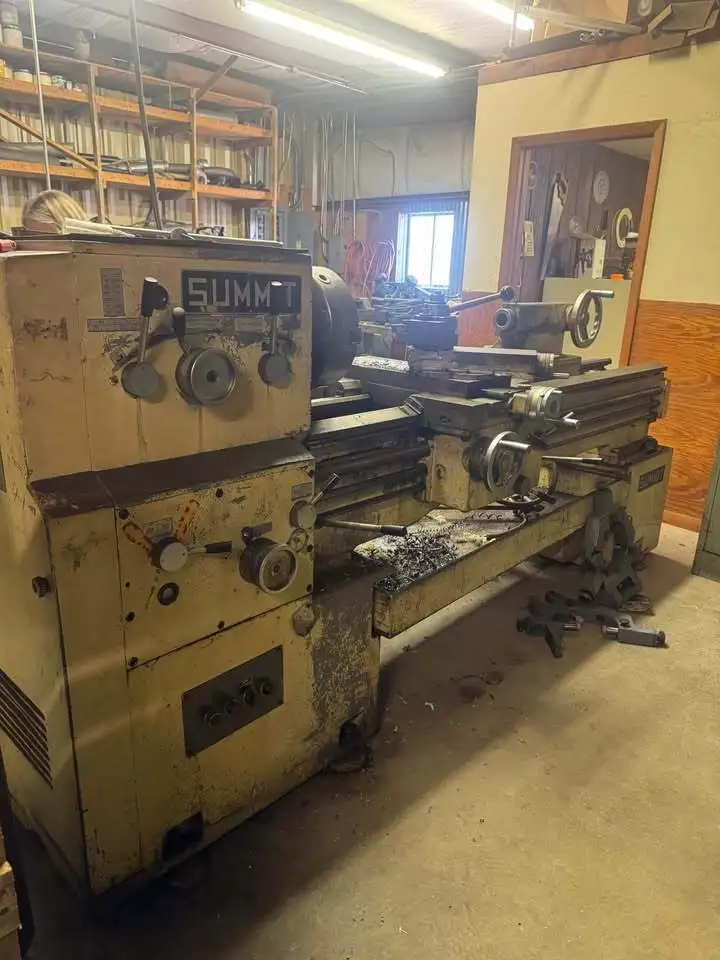

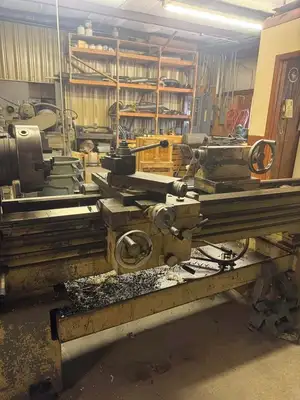

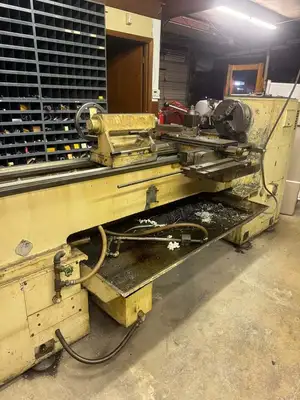

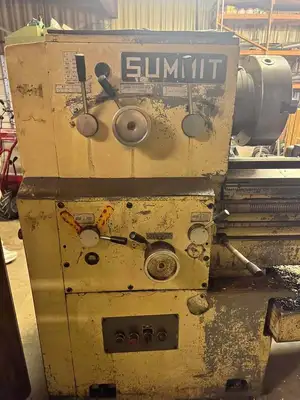

Summit 17-3X 60 Engine Lathe
Have one to sell?
ConditionUsed
1 available
Summit 17-3X 60 Engine Lathe
Summit 17-3X60 Engine Lathe
Capacity & Swing Specifications
Swing Over Bed / Ways: 19″ (482.6 mm)
Swing Over Cross Slide: 10.75″Swing In Gap: 27″
Distance Between Centers: 60″ (1,524 mm)
Gap Length in Front of Faceplate: 10.5″Spindle
Specifications
Hole Thru Spindle (Spindle Bore): 3″ (76.2 mm)
Spindle Mount / Nose: L-2 taper
Spindle Speeds: (12 steps) 22 to 1,500 RPM
Carriage & Travel
Cross Slide Travel: 13.75″Compound Travel: 6.24″
Threading & Feeds
Inch Threads (Standard):
Standard threading capacities (typically ranges from fractional TPI like 3/4 to 92 TPI depending on the exact gearbox setup)
Metric Threads: Supported (.25 – 23mm or modular/diametral pitch options)
Tailstock
Tailstock Quill Travel: 8.5″
Tailstock Quill Taper: MT-5Power & Electrics
Main Drive Motor: 7.5 HP (5.6 kW)
Electrical Requirements: Typically 230V/460V, 3-phase (230V/3PH standard configuration)
Summit 17-3X 60 Engine Lathe
Imperial
| Swing | 19" |
| Centers | 60" |
| Spindle Bore | 3" |
| Power | 7.5 hp |
| RPM | 1,500 RPM |
| Swing Over Cross Slide | 0.4232" |
Summit 17-3X60 Engine Lathe
Capacity & Swing Specifications
Swing Over Bed / Ways: 19″ (482.6 mm)
Swing Over Cross Slide: 10.75″Swing In Gap: 27″
Distance Between Centers: 60″ (1,524 mm)
Gap Length in Front of Faceplate: 10.5″Spindle
Specifications
Hole Thru Spindle (Spindle Bore): 3″ (76.2 mm)
Spindle Mount / Nose: L-2 taper
Spindle Speeds: (12 steps) 22 to 1,500 RPM

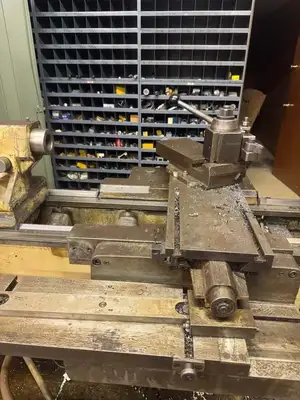

Carriage & Travel
Cross Slide Travel: 13.75″Compound Travel: 6.24″
Threading & Feeds
Inch Threads (Standard):
Standard threading capacities (typically ranges from fractional TPI like 3/4 to 92 TPI depending on the exact gearbox setup)
Metric Threads: Supported (.25 – 23mm or modular/diametral pitch options)
Tailstock
Tailstock Quill Travel: 8.5″
Tailstock Quill Taper: MT-5Power & Electrics
Main Drive Motor: 7.5 HP (5.6 kW)
Electrical Requirements: Typically 230V/460V, 3-phase (230V/3PH standard configuration)
