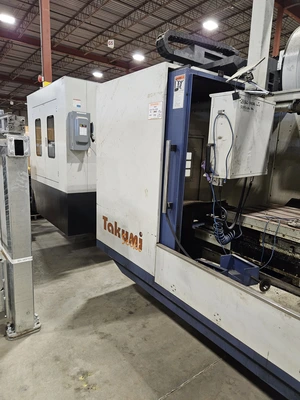

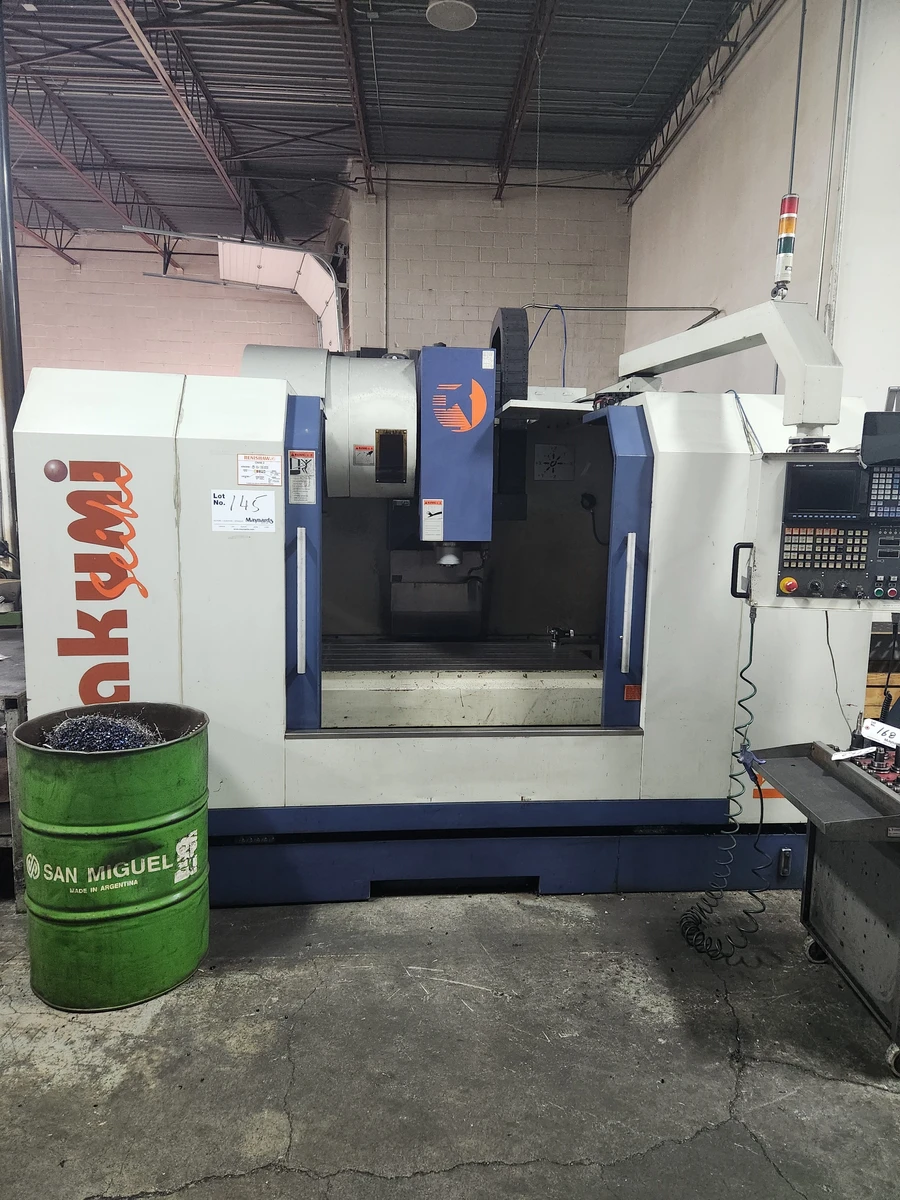

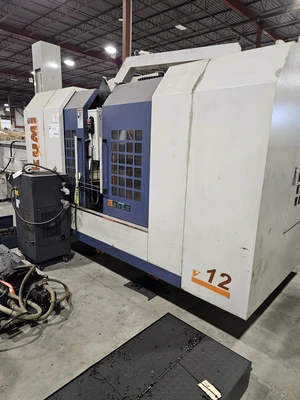

Takumi V12 Vertical Machining Center (2011)

Takumi V12 Vertical Machining Center (2011)

Axis Travels & Capacity
X-Axis Travel: 47.2 inches (1,200 mm)
Y-Axis Travel: 26.0 inches (660 mm)
Z-Axis Travel: 24.0 inches (610 mm)
Table Size (L x W): Approx. 55.1" x 23.6" up to 49" x 27" / Pallet 1,250 x 650 mm
Maximum Table Load: 2,425 lbs (1,200 kg)
Spindle Specifications
Max Spindle Speed: Up to 12,000 RPM (belt-driven or gear-driven options)
Spindle Taper: 40
Spindle Motor Power: Up to 20 HP (approx. 11 kW to 15 kW depending on configuration)
Tool Changer & Feed Rates
Automatic Tool Changer (ATC): 24-position (some variants range from 16 to 32 positions) side-mount tool changer
Rapid Traverse (X/Y/Z): 787 / 787 / 551 in/min (approx. 24 / 24 / 20 m/min)
