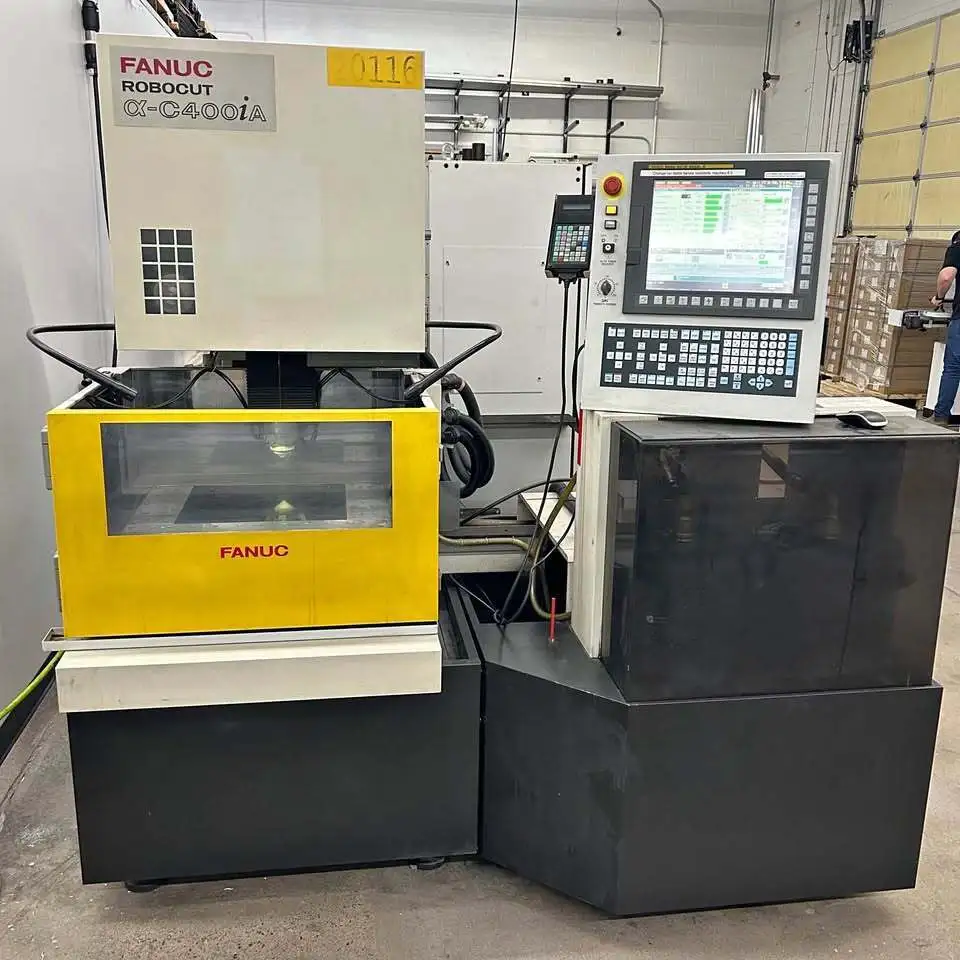

Fanuc Robocut A-C400IA EDM Electrical Discharge Machine (2013)

Fanuc Robocut A-C400IA EDM Electrical Discharge Machine (2013)

Technical Workpiece & Capacity Limits

X-Axis Travel: 14.6 inches (370 mm)
Y-Axis Travel: 10.6 inches (270 mm)
Z-Axis Travel: 10 inches (255 mm)
U/V Axis Travel: 2.36" x 2.36"
Max Workpiece Size: 30.5" x 23.6" x 10"
Max Workpiece Weight: 1,100 lbs (500 kg)
Dielectric Tank Capacity: 145 gallons
Maximum Workpiece Weight: 500 kg
Standard Taper Angle: ± 30° at 80 mm height
Optional 45° Die Guide Taper: ± 45° at 40 mm height
Drive Step Increment Minimum: 0.0001 mm
Positioning Accuracy: ± 0.000050 inFeedback System:
High-resolution Rotary/Heidenhain Glass Encoders (0.000002 in / 0.05 μm)
Wire & Discharge Control Specifications
Standard Wire Diameters: ∅ 0.10 to ∅ 0.30 mm (0.004 to 0.012 in)
Thin Wire Option: ∅ 0.05 to ∅ 0.07 mm
Maximum Wire Spool Weight: 16 kg (35 lbs standard; upgradable to 30 kg)

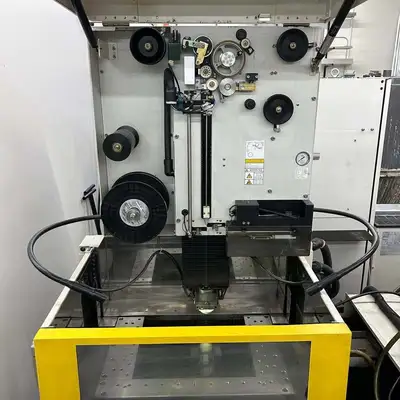

Automatic Wire Feeding (AWF3):
Rapid 10-second submerged air/water threading path.
Standard Power Supply: SF3 high-frequency generator for anti-recast and high-speed cutting.
Optional Power Supply: MF2 fine-discharge unit for ultra-smooth surface finishes.Controller & Software

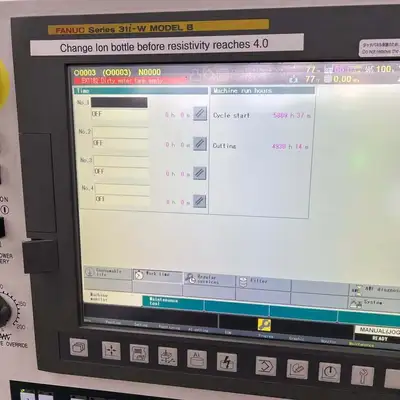

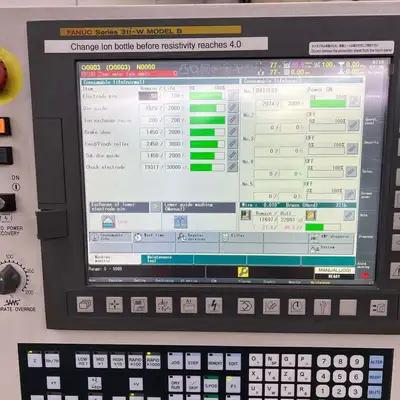

CNC System: FANUC 31i-WB Controller featuring the intuitive iHMI touchscreen interface.Part Program Storage: 8 MB internal memory.
Key Features: iPulse3 discharge control, AI thermal displacement compensation, "Core Stitch" slug retention, and fully integrated 4/5-axis "Turn & Burn" capabilities.
Machine Weight (Approximate): 2,200 kg (4,850 lbs)
