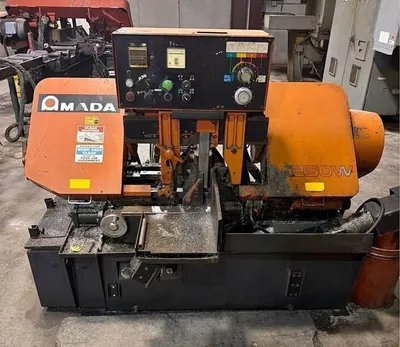

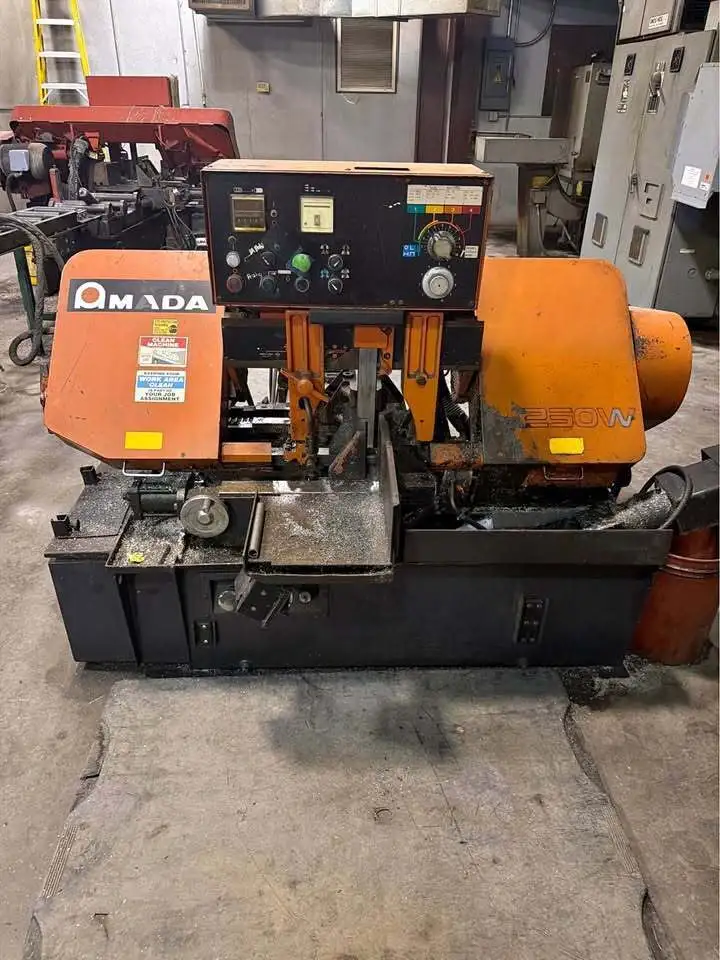

Amada HA-250W Horizontal Band Saw

Amada HA-250W Horizontal Band Saw

Cutting Capacity
Round (Diameter): 0.5" to 10"
Rectangle (W x H): 12" x 10"
Work Load Capacity: 3,307 lbs
Saw Blade & Drive
Blade Size (L x T x W): 11′ 6″ (138") x 0.042″ x 1-1/4″
Blade Speed: 89 – 295 ft./min. (stepless variable)
Saw Motor HP: 5 HP
Hydraulic Pump HP: 1 HP
Feed & Operation
Feed System: Automatic hydraulic shuttle feed with split front vise
Multiple Indexing: Up to 9 index passes for long cuts
Indexing Accuracy: ± 0.004" per index
Physical Dimensions & Weight
Machine Dimensions (W x L x H - Head Up): 78.6" x 88.8" x 74.0"
Table Height Above Floor: 27.6"
Machine Weight: Approx. 3,087 lbs
