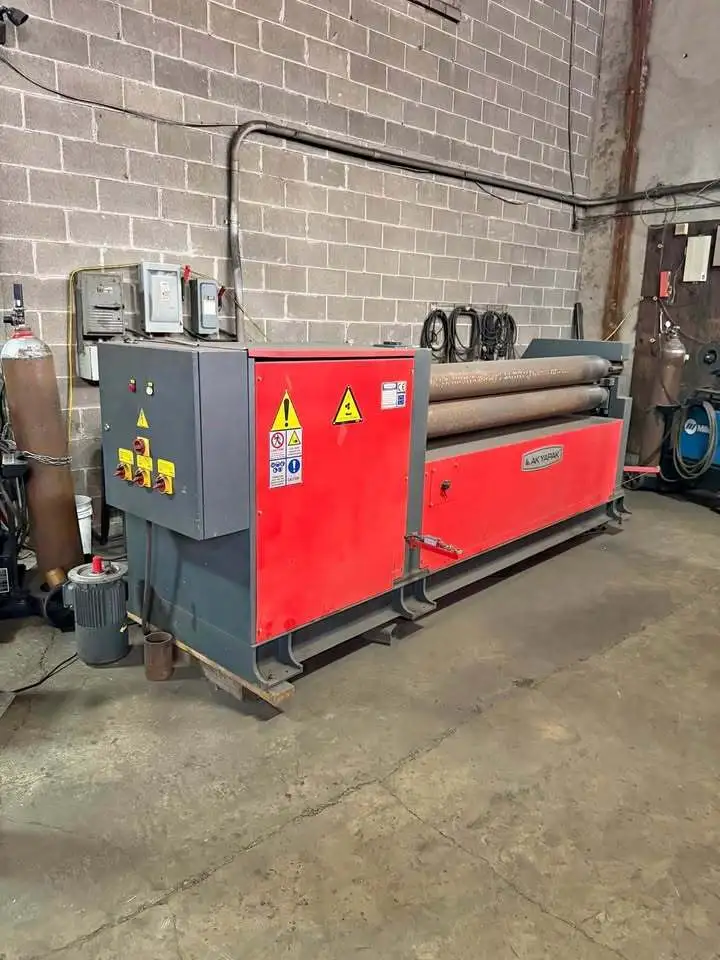

Akyapak ASM-S 190-20/6.0 Plate Roll (2020)

Akyapak ASM-S 190-20/6.0 Plate Roll (2020)

Have one to sell?
773.866.9600
sales@assetexchangeinc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Rolls-Plate and Sheet
Manufacturer:
AKYAPAK
Model:
ASM-S 190-20/6.0
Year:
2020
Stock #:
95624
Status:
For Sale

Description

Akyapak ASM-S 190-20/6.0 Plate Roll (2020), 6’ X 9/32" Plate Roll with Separate Moving Control Panel, Induction Hardened Rolls, Motorized Back Roll, Central Rollers Powered by Electric Motor & Gear Box.

Length of Rolls6.5'2 m
(Init/Dbl Pinch or Pyramid)PYRAMIDPYRAMID
Max Thickness0.275"6.985 mm
# Rolls33
Hyd/MechMechMech
Power5.4 hp4 kW
Roll Diameter7.5"190.5 mm
Dimensions12.5' x 4.4' x 4.3'12.5' x 4.4' x 4.3'
Weight7,937 Lbs.7,937 Lbs.

Akyapak ASM-S 190-20/6.0 Plate Roll (2020)

Working Length: 6’
Pre-Bending Thickness: ¼”
Max Thickness: 9/32”
Top Roll Diameter: 7.5”
Min. Bending Diameter: 11.2”
Motor Power: 5.4 HP
Bending Speed: 16.4’ Per Min
