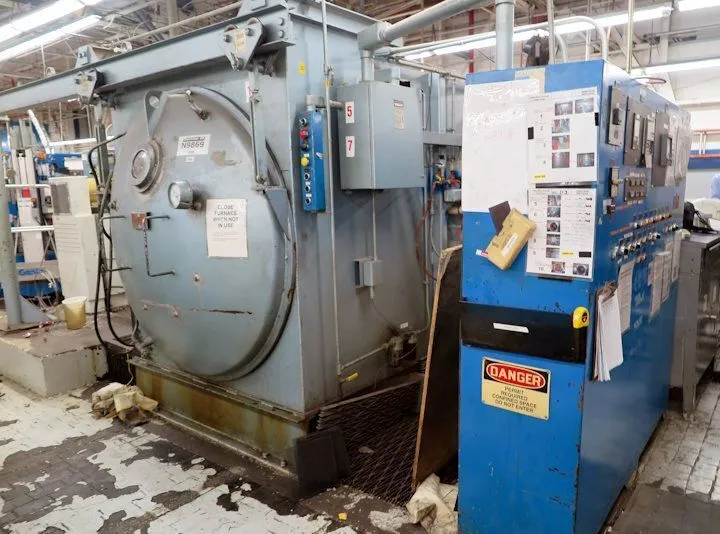

C.I. Hayes VSQ 182436 24" x 36" x 18" Vacuum Oil Quench Furnace

C.I. Hayes VSQ 182436 24" x 36" x 18" Vacuum Oil Quench Furnace

Manufacturer: C.I.Hayes

Type: Vacuum Oil Quench Furnace

Size I.D.: 24”Wide X 36”Long X 18”High

Size O.D.:

Model: Vsq 182436

Serial Number: 15804

Maximum Temp.: 2400 F

Electrics: 480 Volts, 138 Kw, 3 Phase

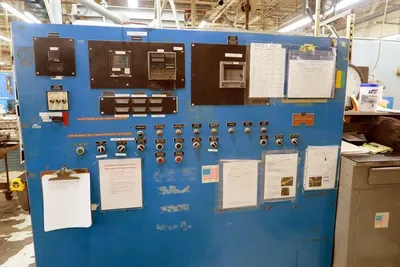

Controls: Digital Temperature Control And Non Indicating Over Temperature
Control.

General: Vacuum Oil Quench Furnace. In/Out Design With Quench Tank Mounted

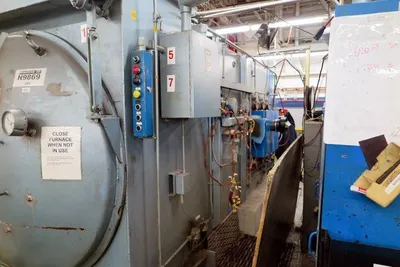

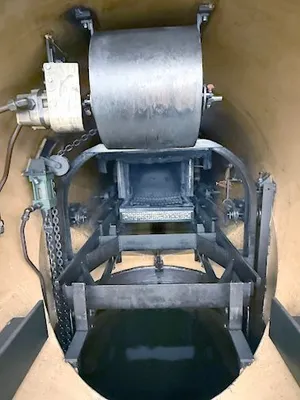

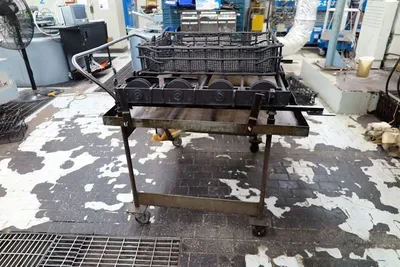

In Front Of Heat Chamber. Sliding Front Door. Work Basket Travels

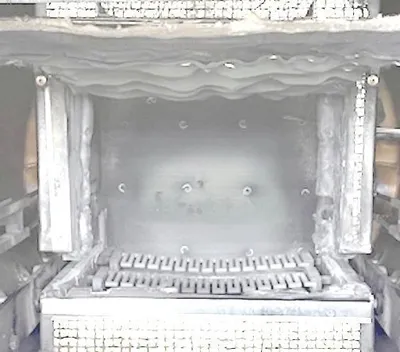

Across Quench Tank To Heat Chamber Which Has Graphite Heating

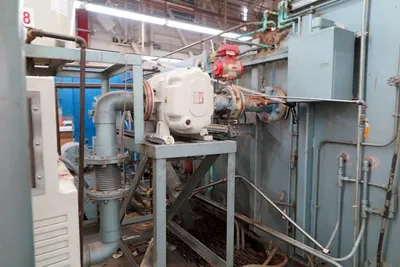

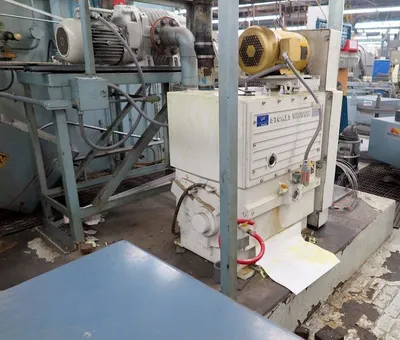

Elements. Vacuum Pumping System Included Stokes 412 Mechanical Pump
With Roots Booster.
Was In Operating When Taken Out Of Service January 2026.
